Feet, rear I/O bracket, and bottom panel
The rear I/O bracket and bottom panel are located at bottom of the computer.
To remove the rear I/O bracket and bottom panel:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 19).
2. Remove the rear port cover (see Rear port cover on page 23).
3. Remove the stand (see Attaching and removing a stand on page 20).
4. Remove the access panel (see Access panel on page 24).
5. Remove the serial/PS2 board (see Serial/PS2 board on page 38).
6. Remove the top trim (see Top trim on page 47).
7. Remove the left trim (see Left trim on page 51).
8. Remove the right trim (see Right trim on page 50).
9. Remove the screw that secures each foot to the computer, and then remove the feet.
NOTE: The left foot is shown in the following image.

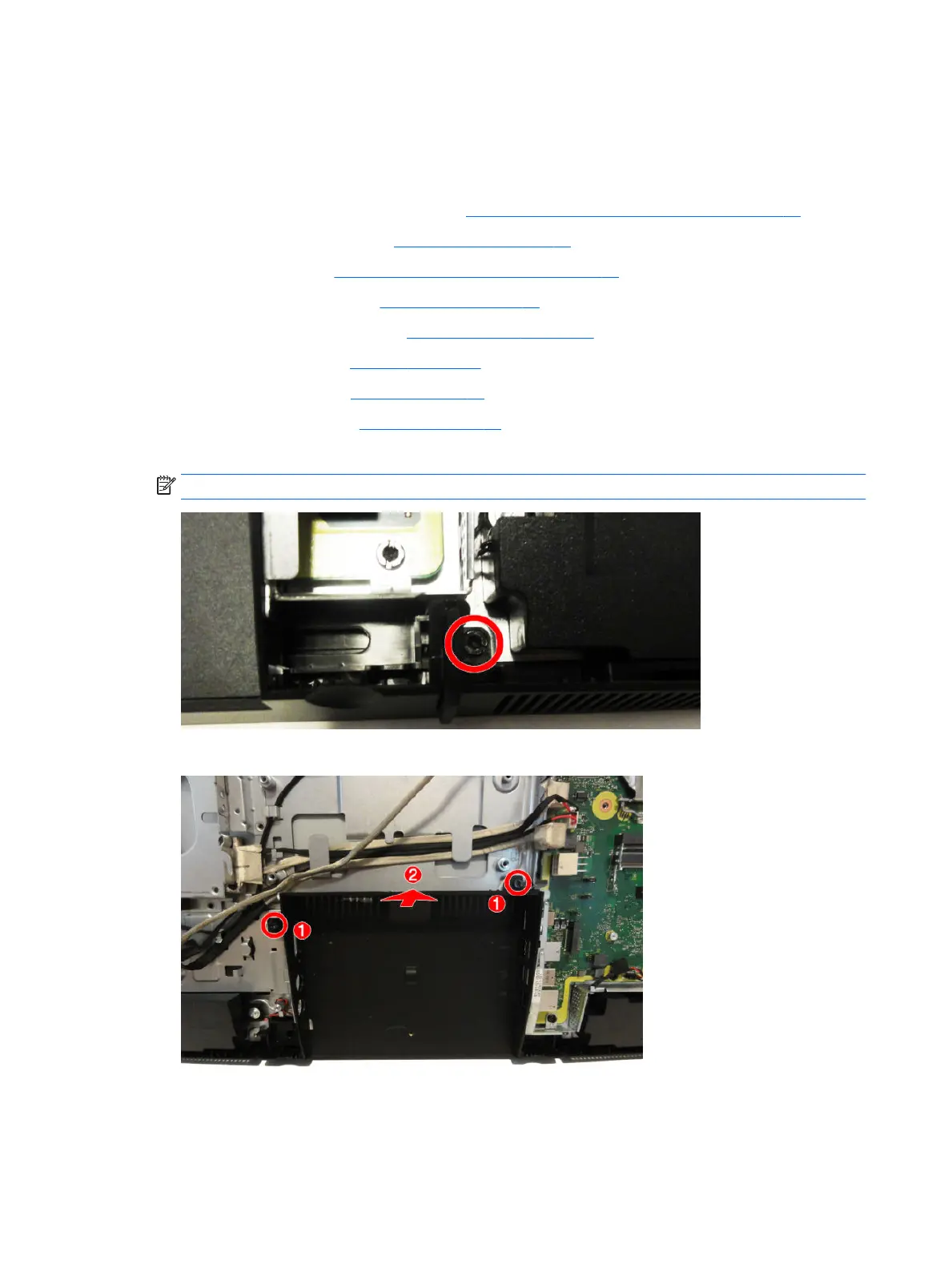

10. Remove the two screws (1) that secure the bottom panel, and then lift it o the computer (2).
52 Chapter 4 Removal and Replacement Procedures
