6-3
Trunks
Trunk Configuration and Membership
■ LACP Passive—Trunk will only participate if the other end sends LACPDUs (other end is
active).
Click Apply to save any changes to the currently selected trunk. The changes take effect immediately.
Example—Creating a Trunk
Follow these instructions to set up a trunk and manually add port members using the Static mode.
1. Click Trunk > Trunk Configuration in the navigation pane to display the Trunk Configuration page.

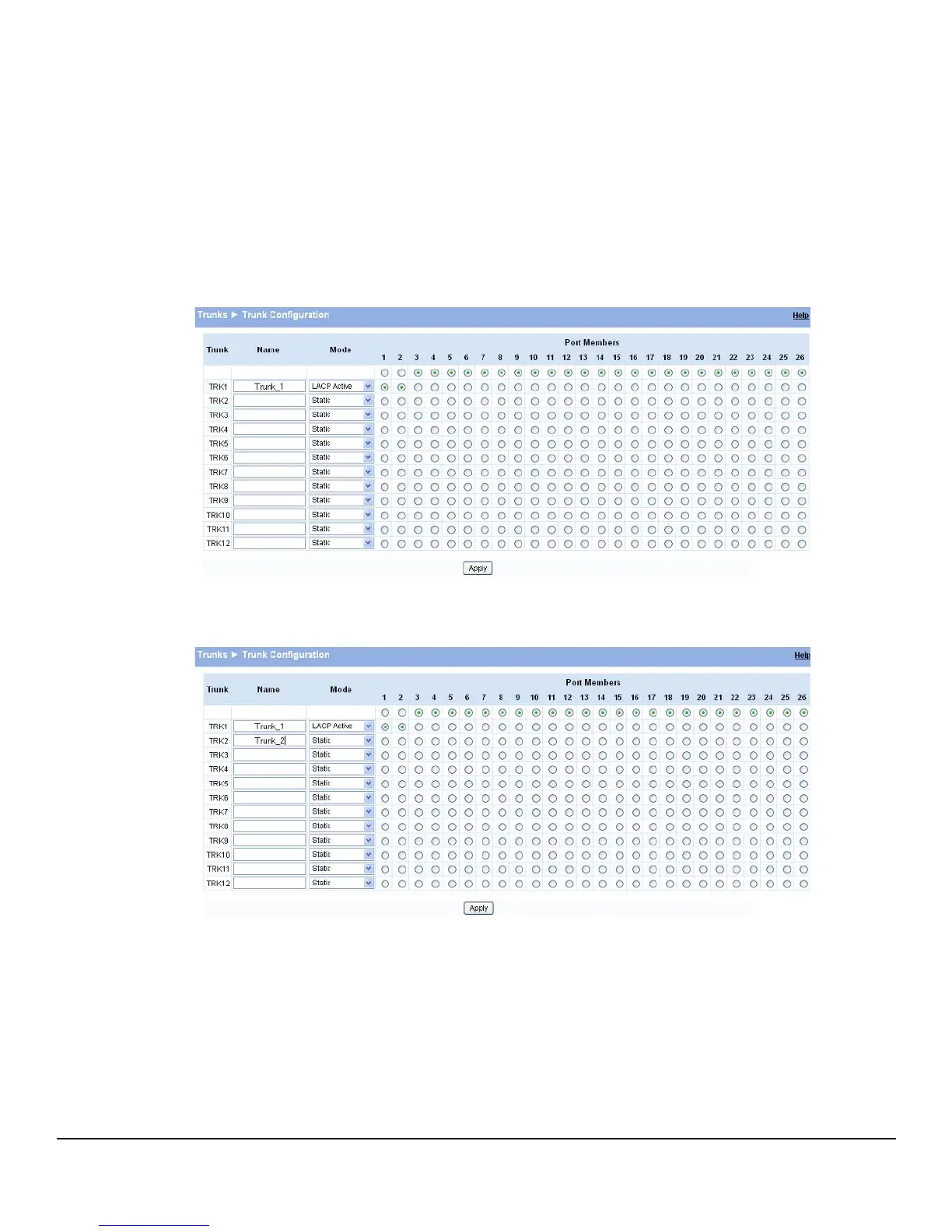

Figure 6-2. Trunk Configuration Page
2. In the Name field, enter a name for the new trunk you wish to set up.
Figure 6-3. Trunk Name
3. Use the Mode drop-down list to select a mode for specifying the trunk members.
