9-5
Diagnostics
Locator
■ Advanced security configuration
■ Flow control mode configuration
■ Secure connection configuration
■ MAC table
■ VLAN configuration, membership, and advanced configuration
■ Trunk configuration
■ LLDP configuration, global statistics, and interface statistics
■ LLDP local and remote device summary
■ Port mirroring configuration
■ Loop protection configuration and status
■ Spanning tree bridge configuration and status
■ Green features configuration
To save the Support File data to a file, click Save As located at the top and bottom of the page.
You can print the text from your text editor. Alternatively, your browser may support printing only the
frame that contains the data (that is, it excludes the navigation pane and Web Applet) directly from the
Web page. Right-click the data area to see if your browser provides this option.
Locator
The Locator LED is a special LED on the HP PS1810-24G that enables locating the device physically.
When enabling the Locate setting via the Web interface, the Locate LED on the switch blinks for 30
minutes and then turns off.
To display the Locator page, click Diagnostics > Locator in the navigation pane.

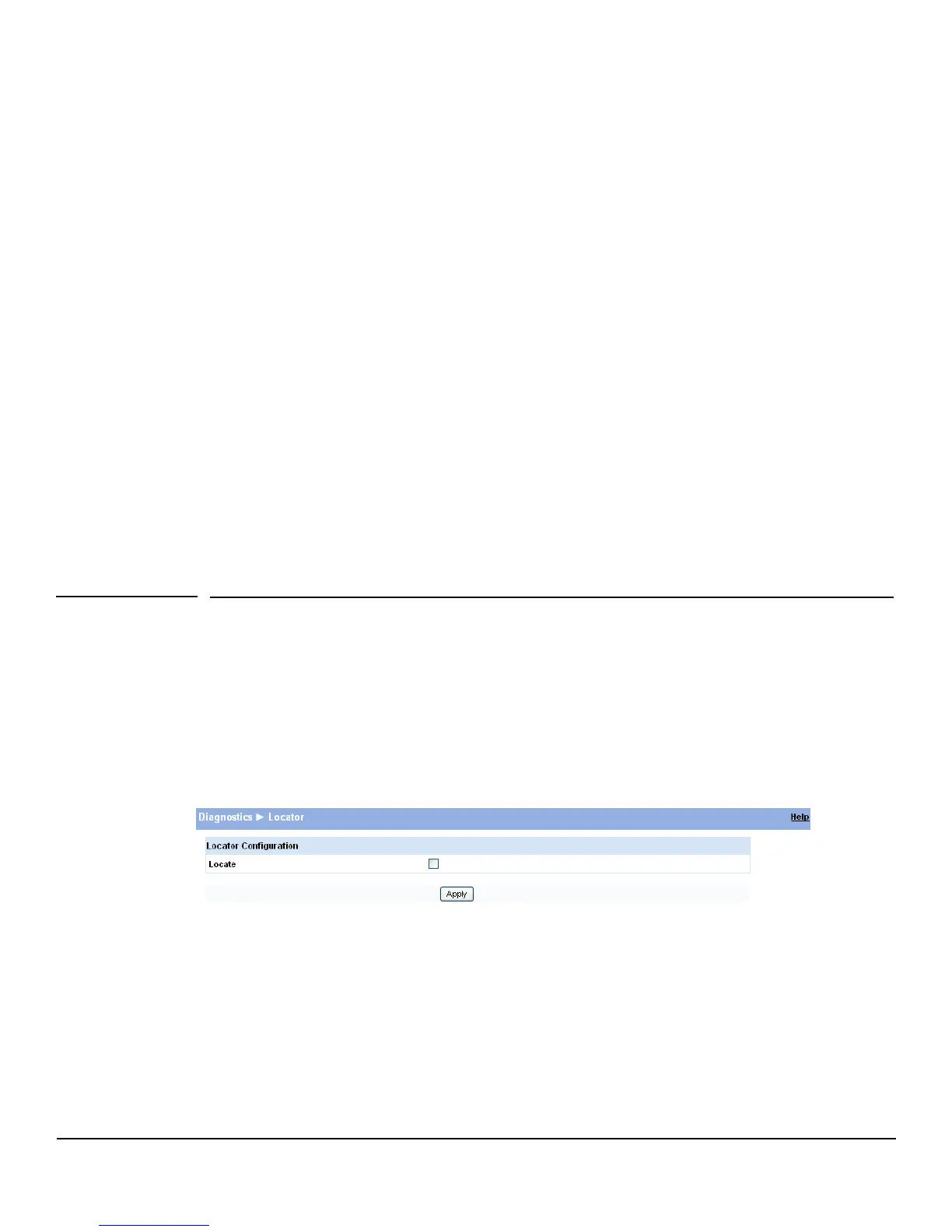

Figure 9-6. Locator Page
Select Locate and click Apply to cause the Locator LED on the switch to blink for 30 minutes.
