10-7
Maintenance
Update Manager

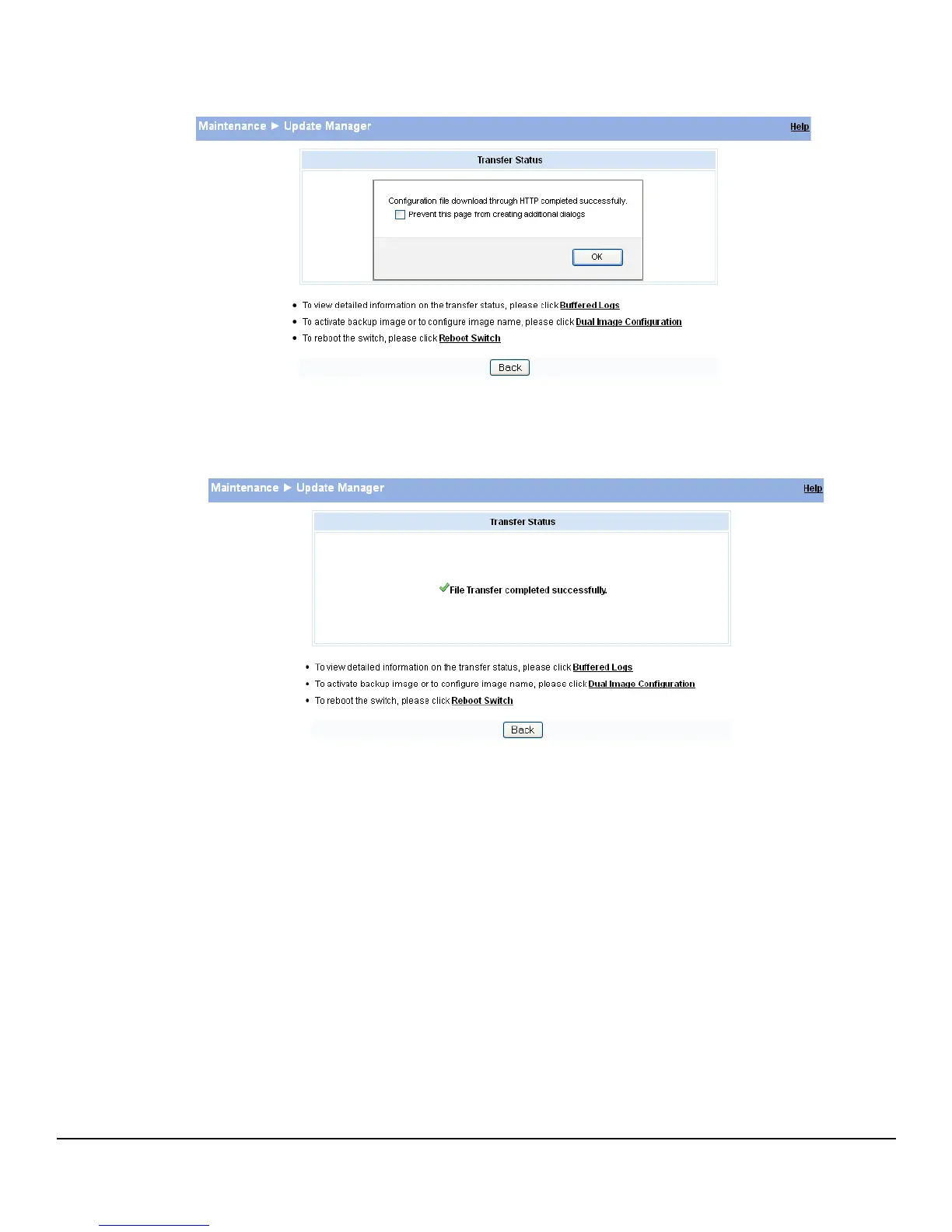

Figure 10-11. Update Confirmation
8. Click OK.
Update Manager displays a transfer status message.
Figure 10-12. Update Transfer Status
9. Click Back to re-display the Update Manager page.
Note that, in this example, the image was downloaded as the inactive (backup) image. To complete
the update process and to activate the backup image as the operating software, use the Dual Image
Configuration page.
In the following example, Image1 is the active image, and Image2 is the newly updated backup
image. By clicking Activate, Image2 will be activated on the next reboot (and Image1 will become
the inactive backup image).
