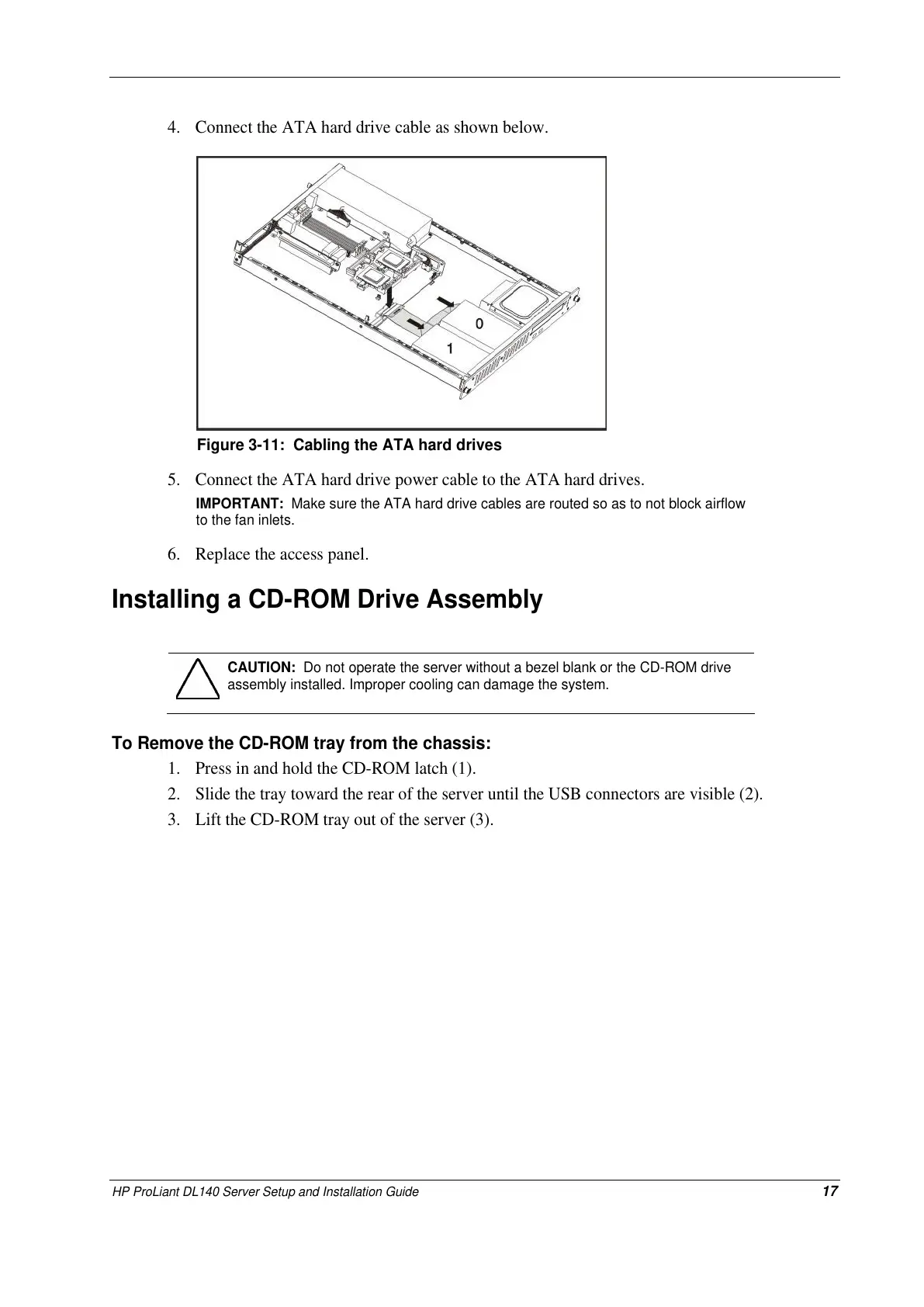

HP ProLiant DL140 Server Setup and Installation Guide 17
4. Connect the ATA hard drive cable as shown below.
Figure 3-11: Cabling the ATA hard drives
5. Connect the ATA hard drive power cable to the ATA hard drives.
IMPORTANT: Make sure the ATA hard drive cables are routed so as to not block airflow
to the fan inlets.
6. Replace the access panel.
Installing a CD-ROM Drive Assembly
CAUTION: Do not operate the server without a bezel blank or the CD-ROM drive
assembly installed. Improper cooling can damage the system.
To Remove the CD-ROM tray from the chassis:
1. Press in and hold the CD-ROM latch (1).
2. Slide the tray toward the rear of the server until the USB connectors are visible (2).
3. Lift the CD-ROM tray out of the server (3).
