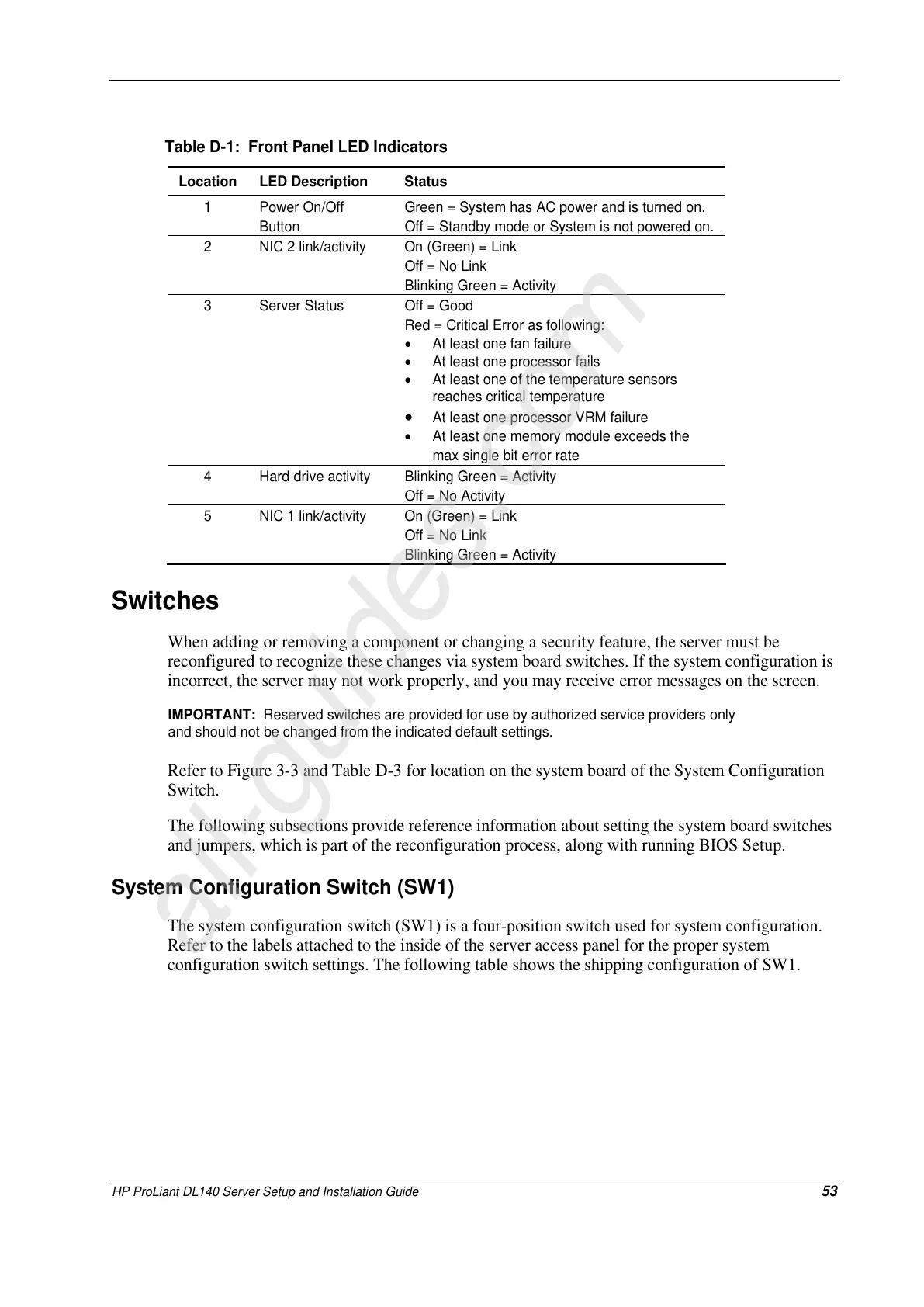

HP ProLiant DL140 Server Setup and Installation Guide 53
Table D-1: Front Panel LED Indicators
Location LED Description Status
1 Power On/Off
Button
Green = System has AC power and is turned on.
Off = Standby mode or System is not powered on.
2 NIC 2 link/activity On (Green) = Link
Off = No Link
Blinking Green = Activity
3 Server Status Off = Good
Red = Critical Error as following:
• At least one fan failure
• At least one processor fails
• At least one of the temperature sensors
reaches critical temperature
• At least one processor VRM failure
• At least one memory module exceeds the
max single bit error rate
4 Hard drive activity Blinking Green = Activity
Off = No Activity
5 NIC 1 link/activity On (Green) = Link
Off = No Link
Blinking Green = Activity
Switches
When adding or removing a component or changing a security feature, the server must be
reconfigured to recognize these changes via system board switches. If the system configuration is
incorrect, the server may not work properly, and you may receive error messages on the screen.
IMPORTANT: Reserved switches are provided for use by authorized service providers only
and should not be changed from the indicated default settings.
Refer to Figure 3-3 and Table D-3 for location on the system board of the System Configuration
Switch.
The following subsections provide reference information about setting the system board switches
and jumpers, which is part of the reconfiguration process, along with running BIOS Setup.
System Configuration Switch (SW1)
The system configuration switch (SW1) is a four-position switch used for system configuration.
Refer to the labels attached to the inside of the server access panel for the proper system
configuration switch settings. The following table shows the shipping configuration of SW1.
