HP StorageWorks User Manual

114 External Storage XP for the XP12000/XP10000

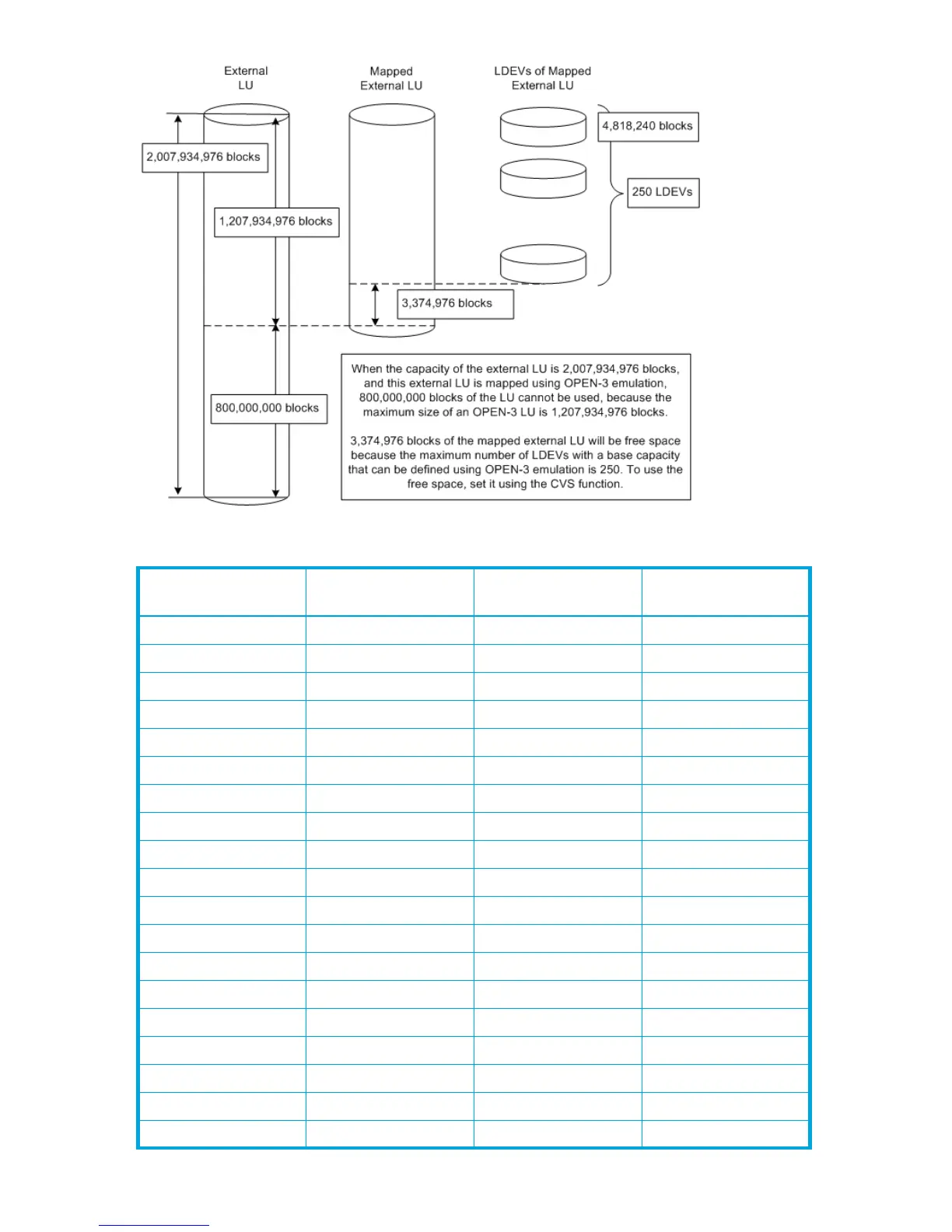

Figure 51 Calculating LU capacity (OPEN-3 example)
Table 24 LDEV capacity information for each emulation type
Emulation type Minimum data area
capacity (blocks)
Base data area
capacity (blocks)
Control information
area capacity (blocks)
3380-3 72,000 4,808,160 10,080
3380-3A 72,000 4,808,160 10,080
3380-3B 72,000 4,808,160 10,080
3380-3C 72,000 4,808,160 10,080
3380-K 72,000 3,823,200 10,080
3380-KA 72,000 3,823,200 10,080
3380-KB 72,000 3,823,200 10,080
3380-KC 72,000 3,823,200 10,080
3390-3 87,000 5,809,860 10,440
3390-3A 87,000 5,809,860 10,440
3390-3B 87,000 5,809,860 10,440
3390-3C 87,000 5,809,860 10,440
3390-3R 87,000 5,809,860 10,440
3390-9 87,000 17,429,580 43,500
3390-9A 87,000 17,429,580 43,500
3390-9B 87,000 17,429,580 43,500
3390-9C 87,000 17,429,580 43,500
3390-L 87,000 57,002,400 40,020
3390-LA 87,000 57,002,400 40,020
