Setting Up the Monitor

User’s Guide 3–5

Preparing the cantilever-base monitor for wall-mounting

1. Disconnect the power cable and any other cables from the monitor.

2. Remove the monitor base. Refer to “Removing the Monitor Base.” Keep the monitor panel screen down on a flat,

soft area.

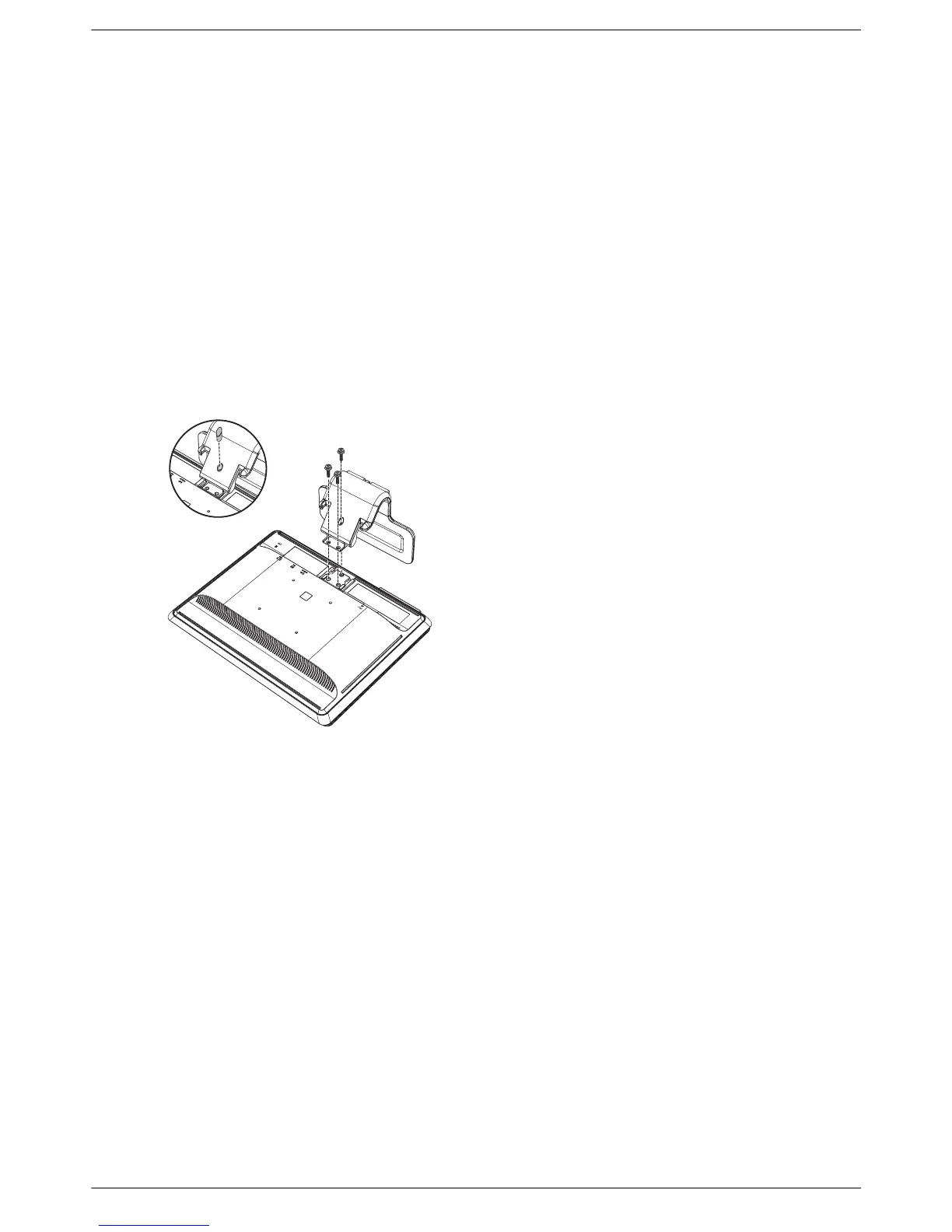

3. After the base is removed, remove the rubber plug on the neck of the monitor. You will see a screw below the

rubber plug and two additional screws on the panel.

4. Remove all three screws.

5. Remove the neck from the monitor.

6. Save the removed items (rubber plug, screws, neck, and base) for future use.

7. Follow the instructions included with the mounting fixture to ensure that the monitor is safely attached.

The four-threaded mounting holes that are on the back of the panel are compliant with the VESA standard for

mounting flat-panel monitors. The vp15 monitor uses the 75 mm spacing standard, while the other models use the

100 mm spacing standard.

Use the four holes to attach a swing arm or other mounting fixture.

Questions and Answers:

Need help?

Do you have a question about the HP w2207 and is the answer not in the manual?

HP w2207 Specifications

General

Plug and Play	Yes
Height adjustment	No
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160 °
Digital vertical frequency	48 - 76 Hz
Digital horizontal frequency	24 - 82 kHz
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Power consumption (standby)	2 W
Power consumption (typical)	65 W
Storage temperature (T-T)	20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
DVI-I ports quantity	0
RMS rated power	4 W
Number of speakers	2
Product color	Black
Country of origin	China
