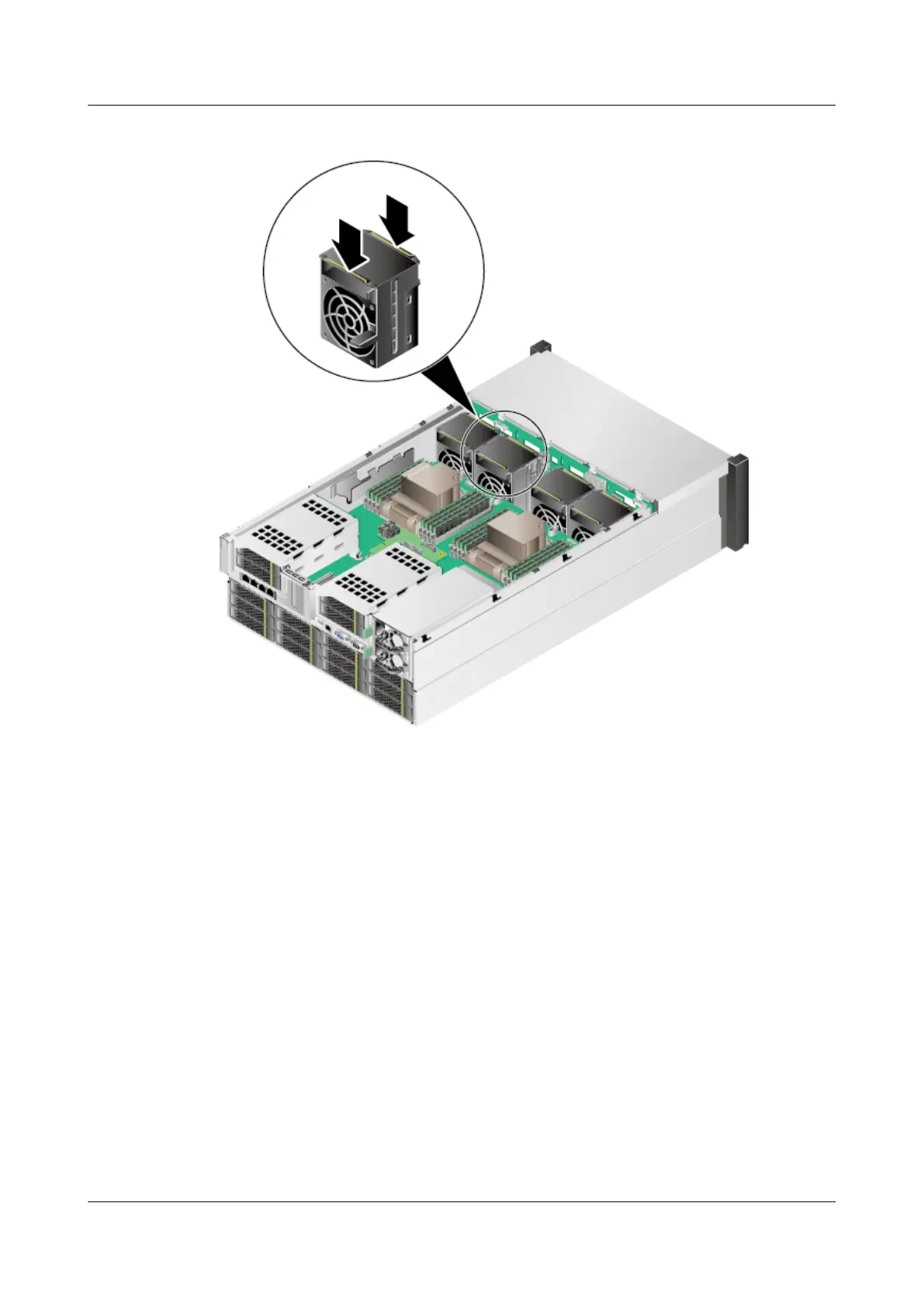

Figure 7-39 Installing fan modules
Step 11 Install the air duct. For details, see 7.14 Installing the Air Duct.
Step 12 Install the chassis cover. For details, see 7.12 Installing the Chassis Cover.
Step 13 Install the 5288 V3. For details, see 3.4 Installing the Server.
Step 14 Connect all internal cables such as power and network cables. For details, see 3.5 Connecting
External Cables.
Step 15 Power on the 5288 V3. For details, see 4.1 Powering On the Server.
----End
7.19 Removing the Riser Card
Remove the riser card before replacing it with a new one, or replacing the mainboard.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
5288 V3 Server
User Guide
7 Replacing Parts
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 154
