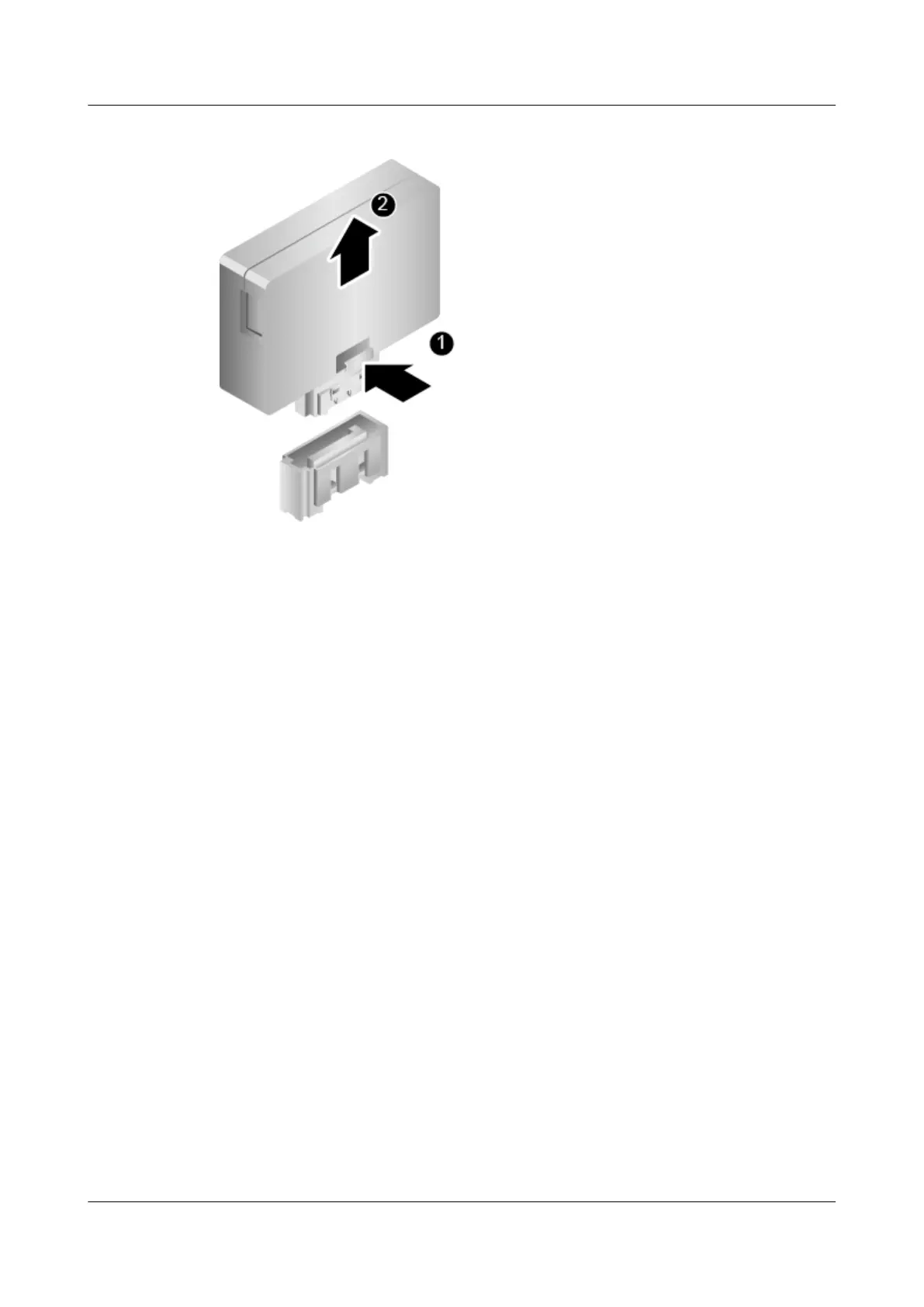

Figure 7-94 Removing a SATADOM
Step 9 Remove the SATADOM from the mainboard. See step (2) in Figure 7-94.
Step 10 Place the removed SATADOM in an ESD bag.
----End
7.46 Installing a SATADOM
Install a SATADOM to replace the original one.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the SATADOM to be replaced. For details, see 7.45 Removing a SATADOM.
Step 3 Take the spare SATADOM out of its ESD bag.
Step 4 Ensure that the SATADOM write protection switch is off. Figure 7-95 shows
SATADOM-3MG-P, and Figure 7-96 shows SATADOM-3MG2-P.
5288 V3 Server
User Guide
7 Replacing Parts
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 211
