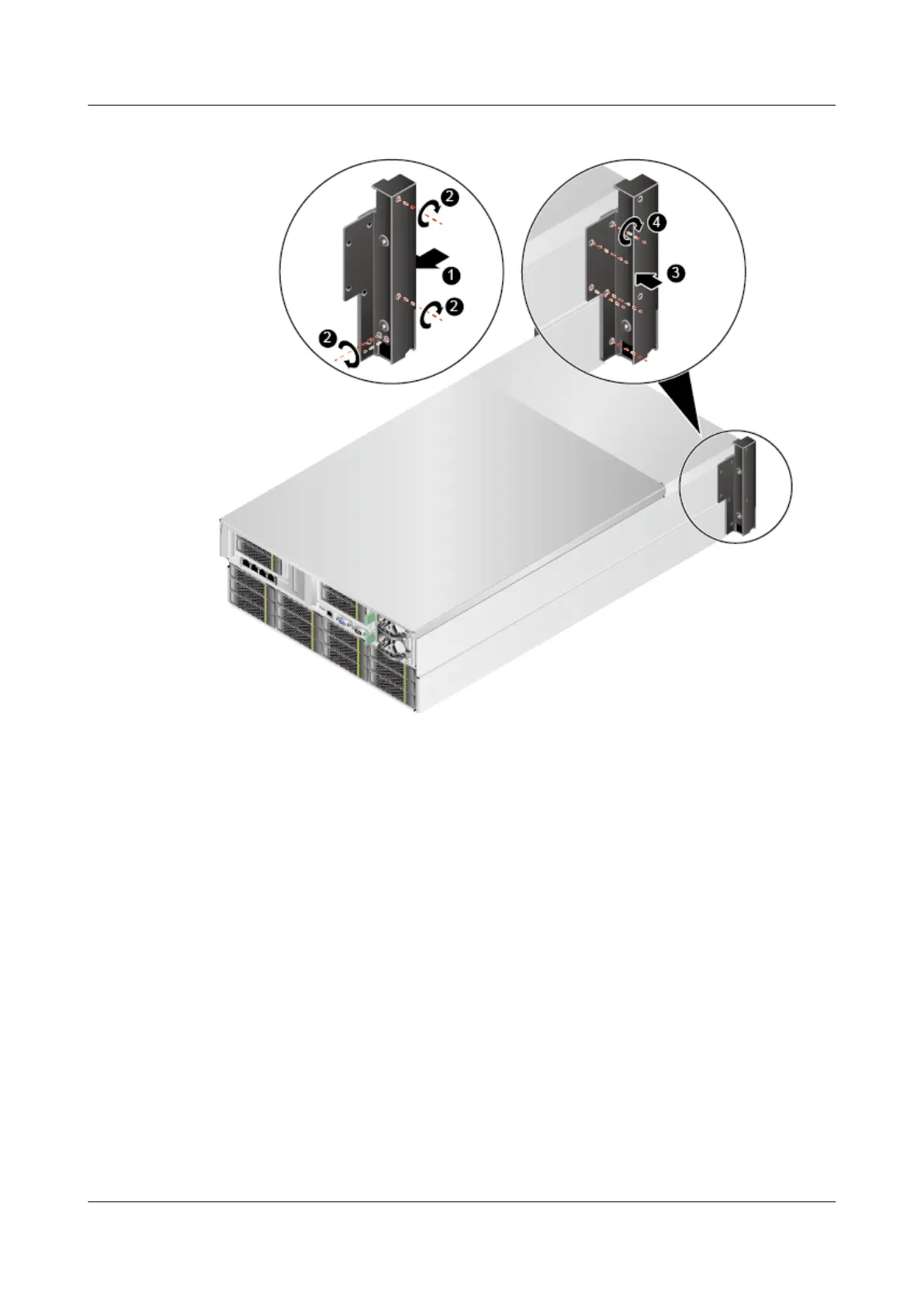

Figure 7-123 Installing a front mounting ear
Step 7 Tighten the screws. See step (2) in Figure 7-123.
Step 8 Install the front mounting ear on the side of the chassis front panel and tighten the screws on
the mounting ear. See steps (3) and (4) in Figure 7-123.
Step 9 Power on the 5288 V3. For details, see 4.1 Powering On the Server.
----End
7.59 Removing an M.2 SATA SSD Card
Remove an M.2 SATA SSD card before replacing it with a new one. An M.2 SSD riser card
can be configured with two M.2 SATA SSD cards. The replacement method is the same for
the two M.2 SATA SSD cards. An M.2 SATA SSD card using the external SATA1 port is used
as an example in this topic.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Determine the rack number and chassis number of the server to be removed, and label its
panel to prevent misoperations.
5288 V3 Server
User Guide
7 Replacing Parts
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 239
