AP7052DN&AP7152DN
Hardware Installation and Maintenance Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

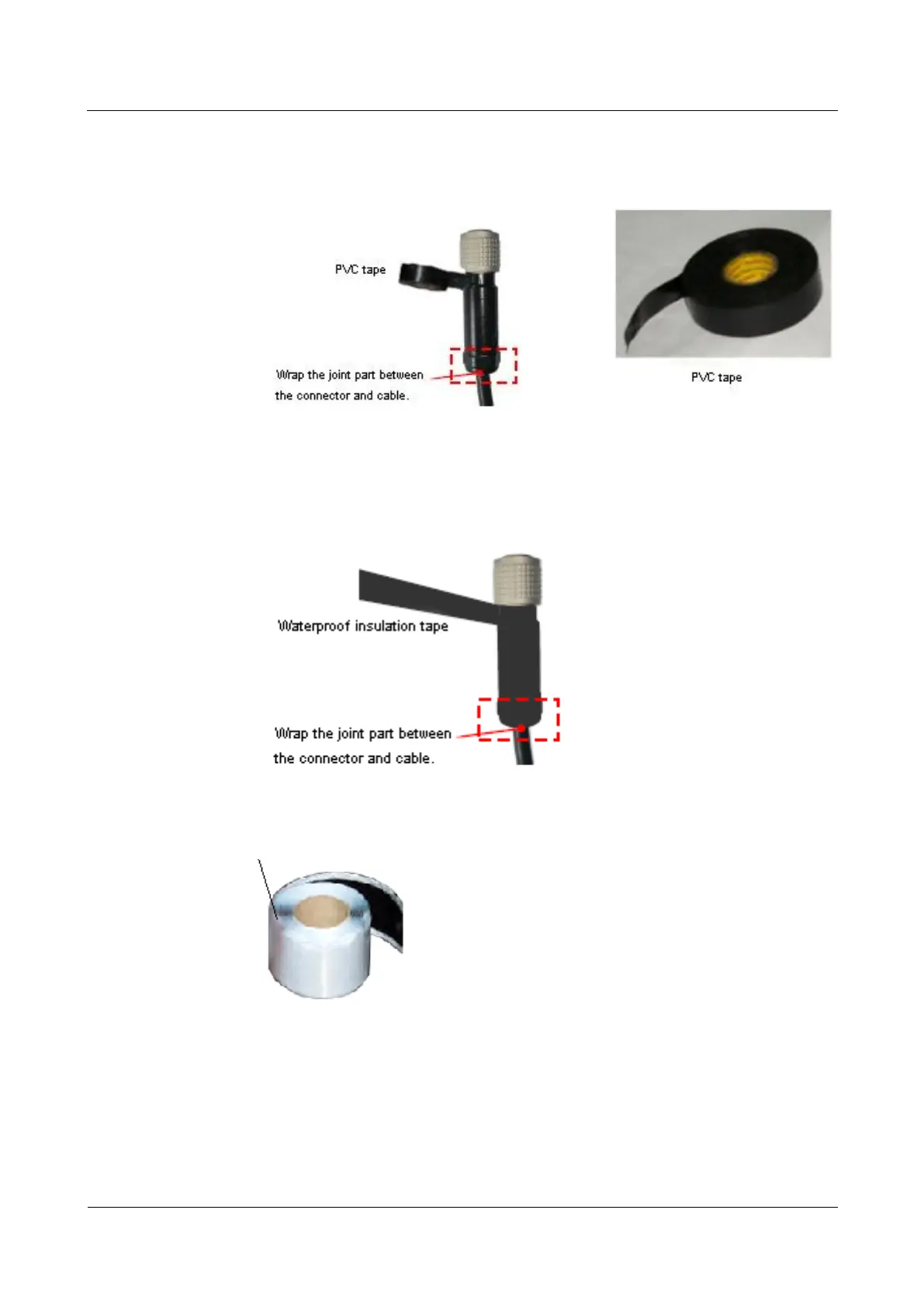

1. Wrap a layer of PVC tape, as shown in Figure 5-117.
Figure 5-117 Wrapping the PVC tape
2. Wrap three layers of insulation tape, as shown in Figure 5-118.
Figure 5-118 Wrapping three layers of the waterproof insulation tape
Figure 5-119 Waterproof insulation tape
3. Wrap three layers of the PVC tape around the waterproof insulation tape, as shown in
Figure 5-120.
