After the conductor is fed into the OT terminal, the protruding part of the conductor, or L2 in
Figure 5-24, must not be longer than 2 mm (0.08 in.).
Step 4 Crimp the joint parts of the bare crimping terminal and the conductor, as shown in Figure
5-25.
The shapes of crimped parts may vary with the crimping dies.

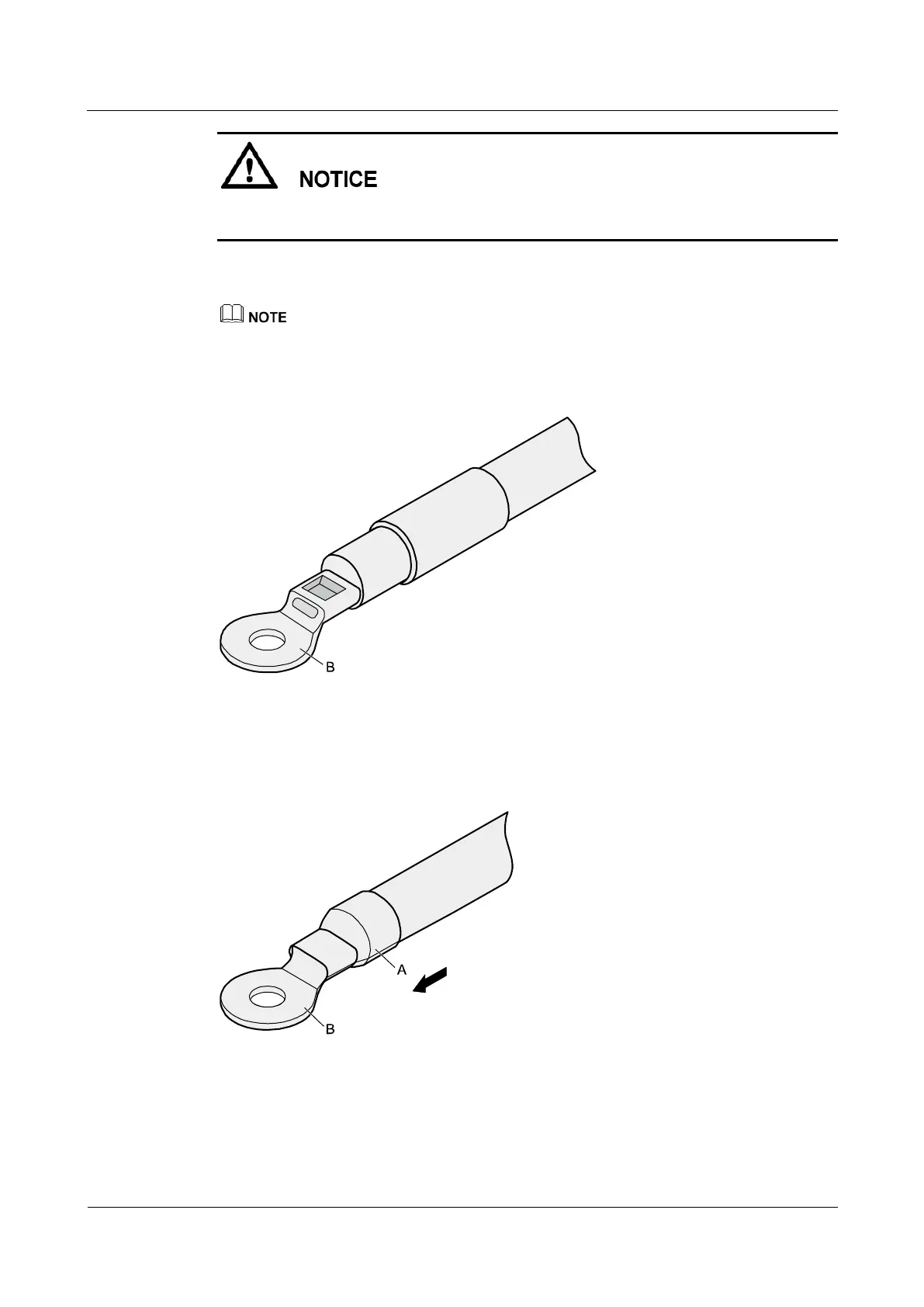

Figure 5-25 Crimping the joint parts of the bare crimping terminal and the conductor (OT
terminal)
Step 5 Push the heat shrink tubing (A) toward the connector until the tube covers the crimped part,
and then use a heat gun to heat the tube, as shown in Figure 5-26.
Figure 5-26 Heating the heat shrink tubing (OT terminal)
