When you strip a power cable, do not damage the conductor of the cable.

If the bare crimping terminal is not provided by Huawei, you can adjust the value of L as
required.

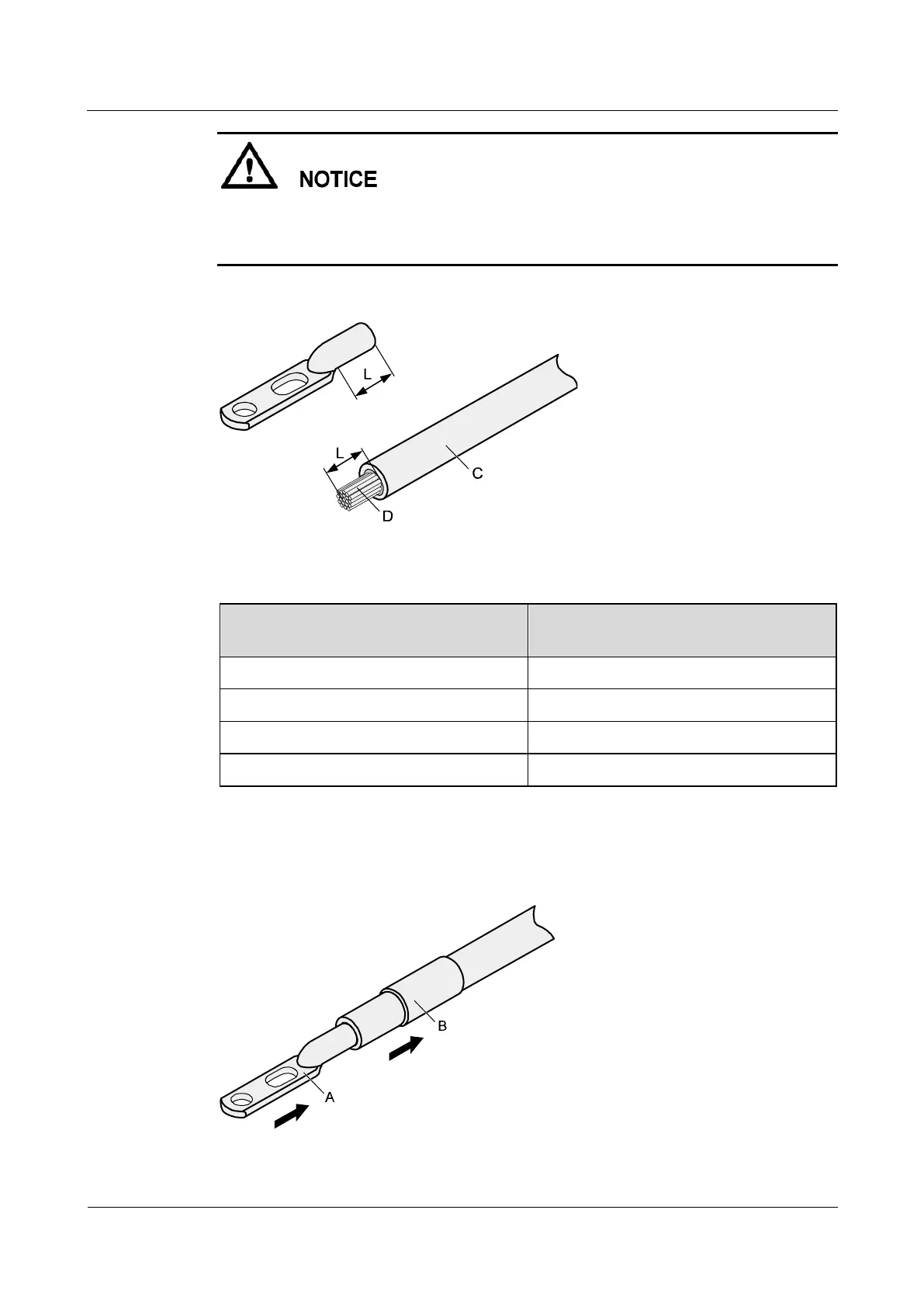

Figure 5-28 Stripping a power cable (JG terminal)
Table 5-3 Mapping between the cross-sectional area of the conductor and the value of L
Cross-Sectional Area of Conductor
(mm
2
(in.
2
))
Value of L (mm(in.))
16 (0.025)
13 (0.51)
25 (0.039)
14 (0.55)
35 (0.054)
16 (0.63)
50 (0.077)
16 (0.63)
Step 2 Put the heat shrink tubing onto the bare crimping terminal, as shown in Figure 5-29.
Figure 5-29 Putting the heat shrink tubing onto the bare crimping terminal
