Huawei V100R001 Maintenance Guide

FusionModule5000 Smart Modular Data Center
Maintenance Guide (ECC800)
5 Parts Replacement
Issue 01 (2019-03-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
139

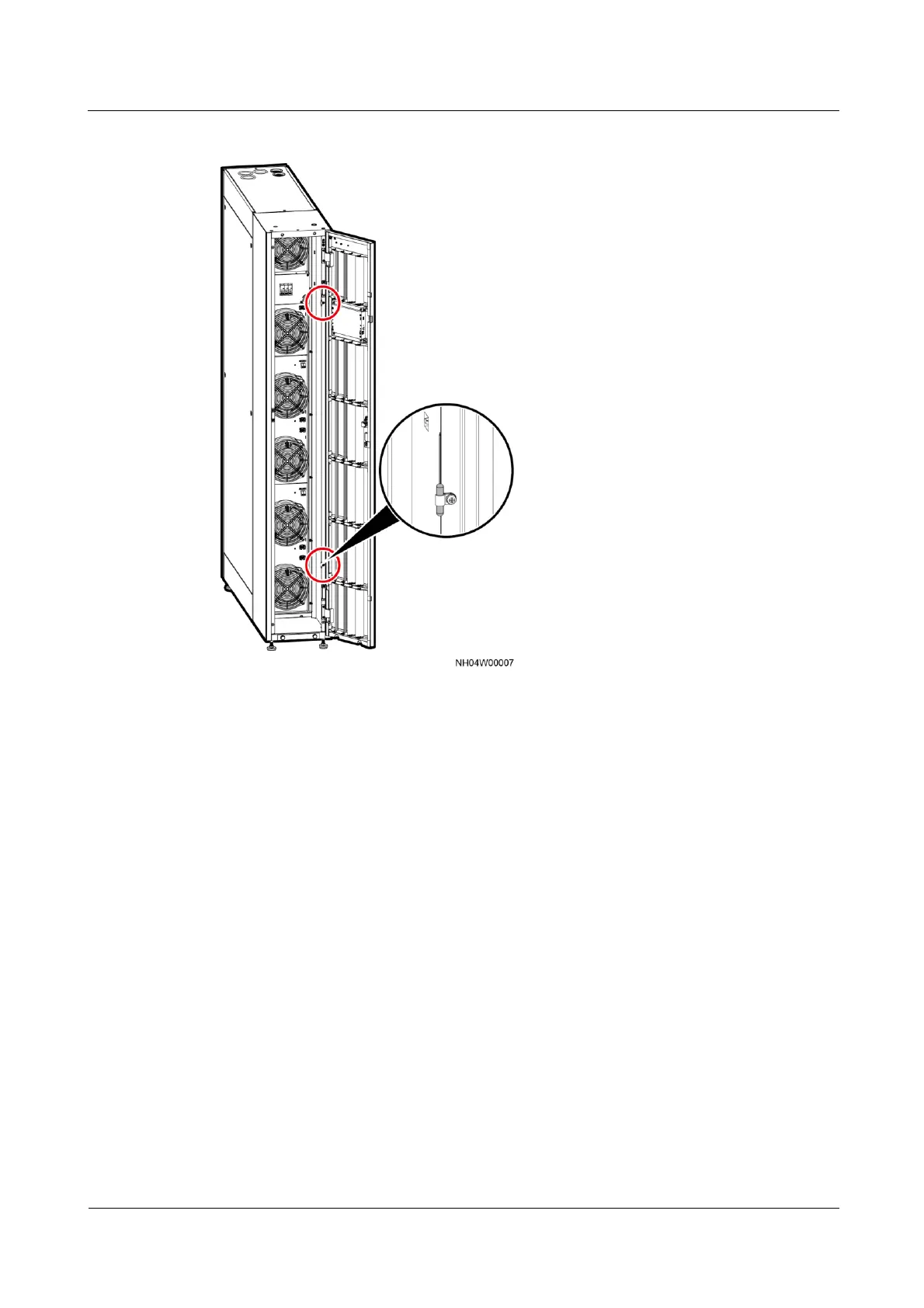

Figure 5-37 Air exhaust temperature sensor
Step 3 Remove the waterproof connector from the sensor cable.
Step 4 Secure a new air exhaust temperature sensor to the original position using the R-shaped pipe
clip.
Step 5 Reconnect the waterproof connector to the sensor cable.
Step 6 Close and lock the front door.
----End
5.2.9 Replacing an Air Intake Temperature Sensor
Prerequisites

The air intake temperature sensor needs to be replaced.

A spare and functional temperature sensor is available.
Context
Temperature sensor can be replaced with power on.
Recommended tools: diagonal pliers, tie
Preparation: maintain from the rear door.
