English-
15

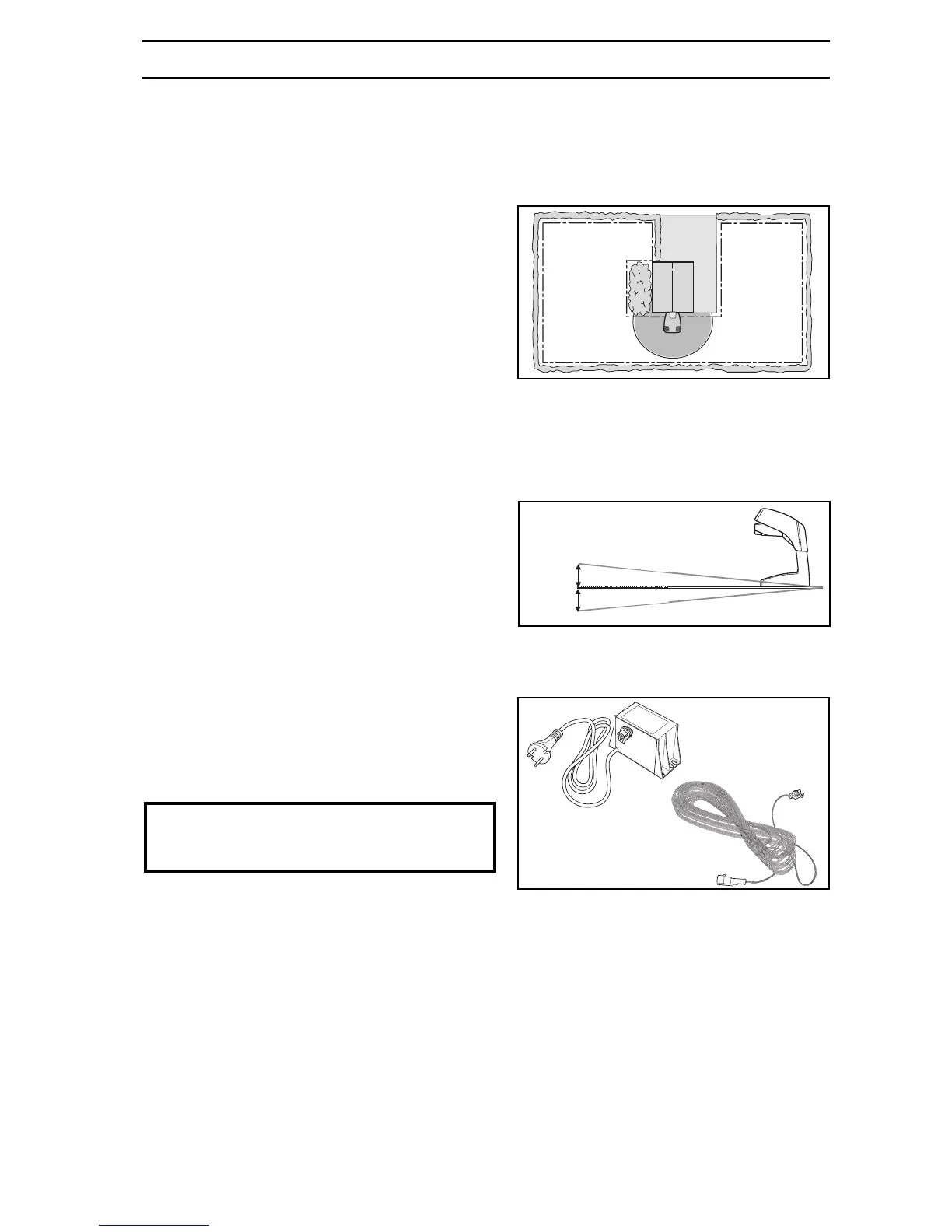

INSTALLATION
B. Planning the installation
Charging station
First and foremost the charging station should be posi-
tioned:
• Centrally in the main area, along the outer edge
and with a large free area in front of the station.
• In the shadow. The battery is spared if it charged in
the low possible ambient temperature.
• On relatively level ground. The height difference
must not differ more than 10 cm between the front
and rear of the charging station.
• Close to a wall socket:
The charging station should be connected to a
230 V wall socket via the low voltage cable and
transformer.
The supplied low voltage cable is 20 metres long.
The transformer must be placed where it is well
ventilated and is not exposed to direct sunlight. It is
also beneficial if the transformer can be placed
under a roof.
It is recommended to use an earth fault-breaker
when connecting the transformer to the wall socket.
3012-233
3012-296
Max 10 cm
Max 10 cm
3012-220
3012-223
IMPORTANT INFORMATION
The length of the low voltage cable must not be
changed.
