Hypertherm MAX200 User Manual

4-28 MAX200 Instruction Manual
9-99

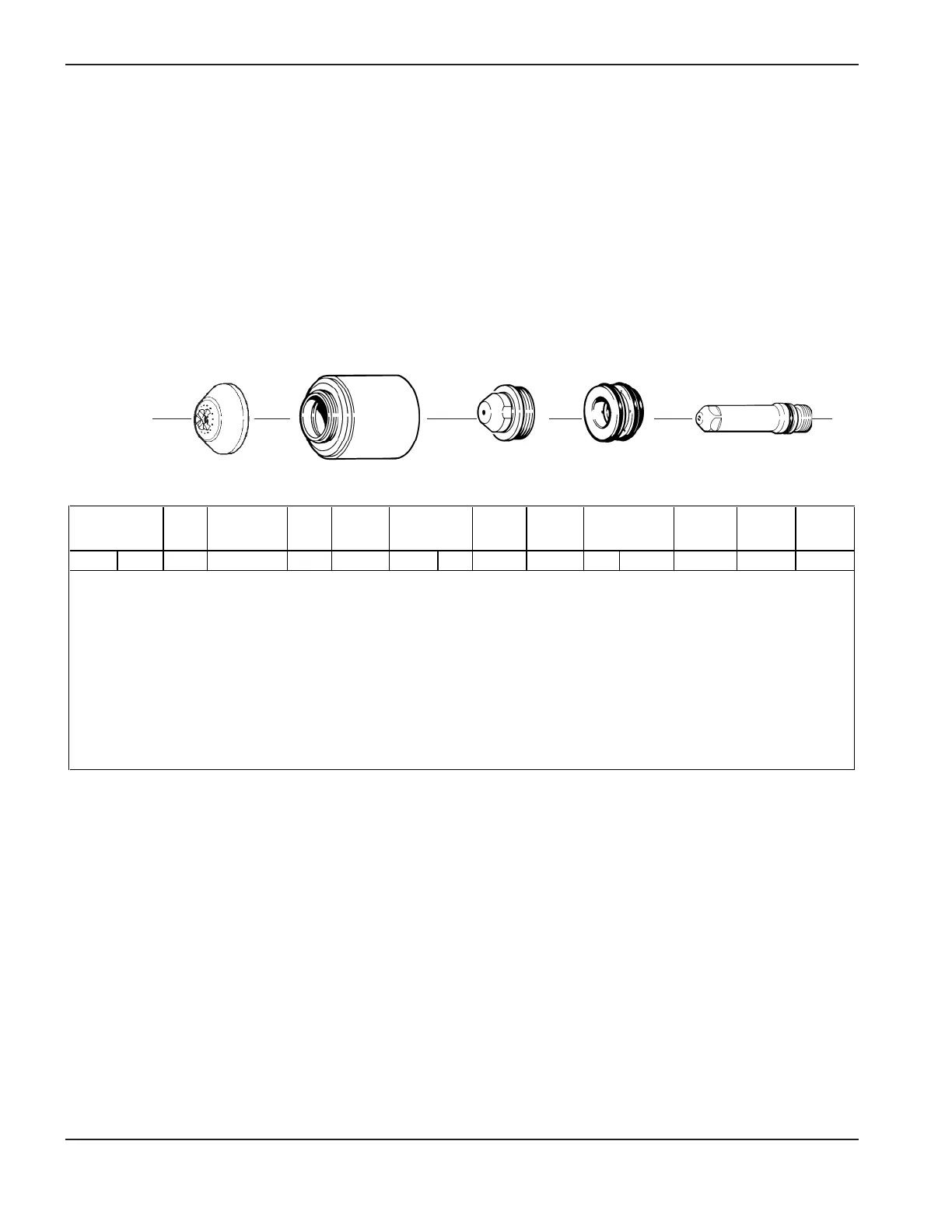

OPERATION
PAC200T/PAC200E Hand Torch
Stainless Steel
200 amps
•
N
2
Plasma / Air Shield
This gas combination is used when cut edge quality, surface nitriding and surface oxidation of alloying
elements are less important. Electrode life is extended when this combination is used.
Piercing above 7/8 inch (22 mm) not recommended.
* If leads are greater than 50 feet, increase TEST pressure 5 psi for every extra 50 feet of torch lead length.
Plasma
Gas
Type
Plasma Gas
Pressure
TEST/RUN
Shield
Gas
Type
Shield
Gas
Pressure
Arc
Current
Setting
Arc
Voltage
Setting
Approx.
Motion
Delay Time
Plasma
Gas Inlet
Pressure
Shield
Gas Inlet
Pressure
(Inches) (mm) (psi) (psi) (Inches) (mm) (amps) (volts) (ipm) (mm/min) (sec) (psi) (psi)
3/16 5
N
2
34-38* / 50-54 Air 70 1/8 3 200 125 135 3430 120 90
1/4 6 1/8 3 130 120 3050 0.5
3/8 10 1/8 3 130 100 2540 1.0
1/2 12 1/8 3 135 75 1900 2.0
5/8 15 .157 4 140 60 1520 2.0
3/4 20 3/16 5 140 45 1140 2.5
7/8 22 1/4 6 145 35 890 2.5
1 25 1/4 6 150 20 510
1-1/4 32 1/4 6 160 15 380
1-1/2 38 1/4 6 160 10 250
Material
Thickness
Torch-to-work
Distance
Travel Speed
(60 SCFH) (280 SCFH)
020918
Shield
020608
Nozzle
020915
Retaining cap
020415
Electrode
020607
Swirl ring
