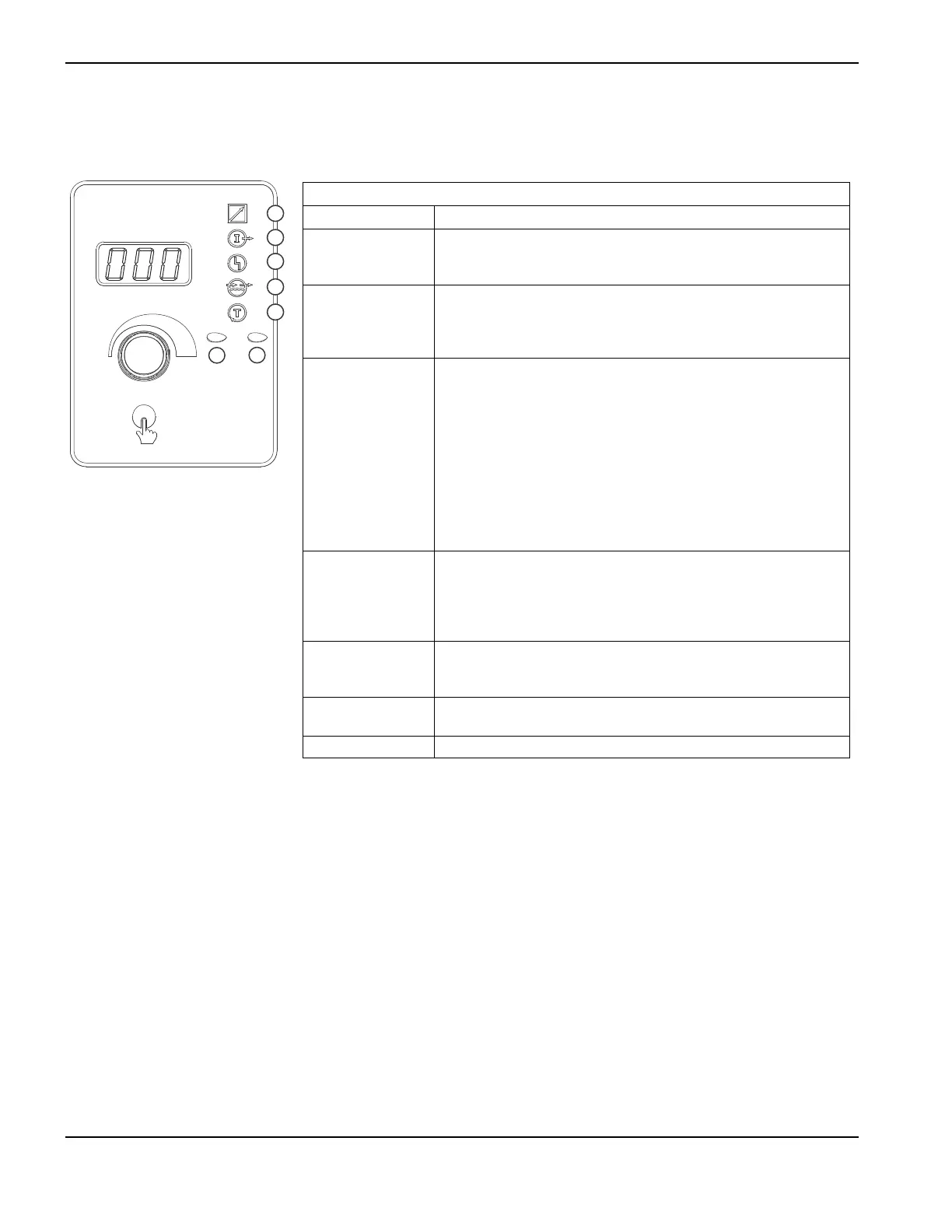

3-digit display icons
Name Description
1Remote
The remote icon illuminates when there is serial communication with
the power supply. You can still cycle through the functions but cut
parameters can only be changed through the CNC.
2Amps
Increase or decrease the amperage by selecting the amps icon and
turning the knob. The current increases or decreases in 1 amp
increments when you turn the knob slowly. You can jump from one
process amperage to another when you turn the knob quickly.
3Fault
The fault icon illuminates when an error occurs.
If the error code number is 60 or less, press the current selection
knob to navigate to the illuminated fault icon. When the fault icon is
selected the error code appears in the 3-digit display.
If the error code is 60 or greater the system automatically selects the
fault icon and the error code number flashes in the 3-digit display.
Press and hold the current selection knob to see the power supply
status number for both types of error code.
4 Coolant flow
When the coolant flow icon is selected the display shows the coolant
flow in gallons per minute. When you turn ON the power to the
system and select the coolant flow icon before the power supply
finishes the purge count, the flow switch is overridden and coolant
will continue to flow for 30 seconds.
5Test
When test icon is selected the system is in test mode. A number of
functions can be accessed by turning the current selection knob. See
the maintenance section for detailed information.
6 Plasma start lamp
This white lamp illuminates when the plasma start signal is given and
stays illuminated until the start signal is removed.
7 Arc transfer lamp This green lamp illuminates when the arc transfers to the workpiece.
