6 – Power Supply Component Replacement

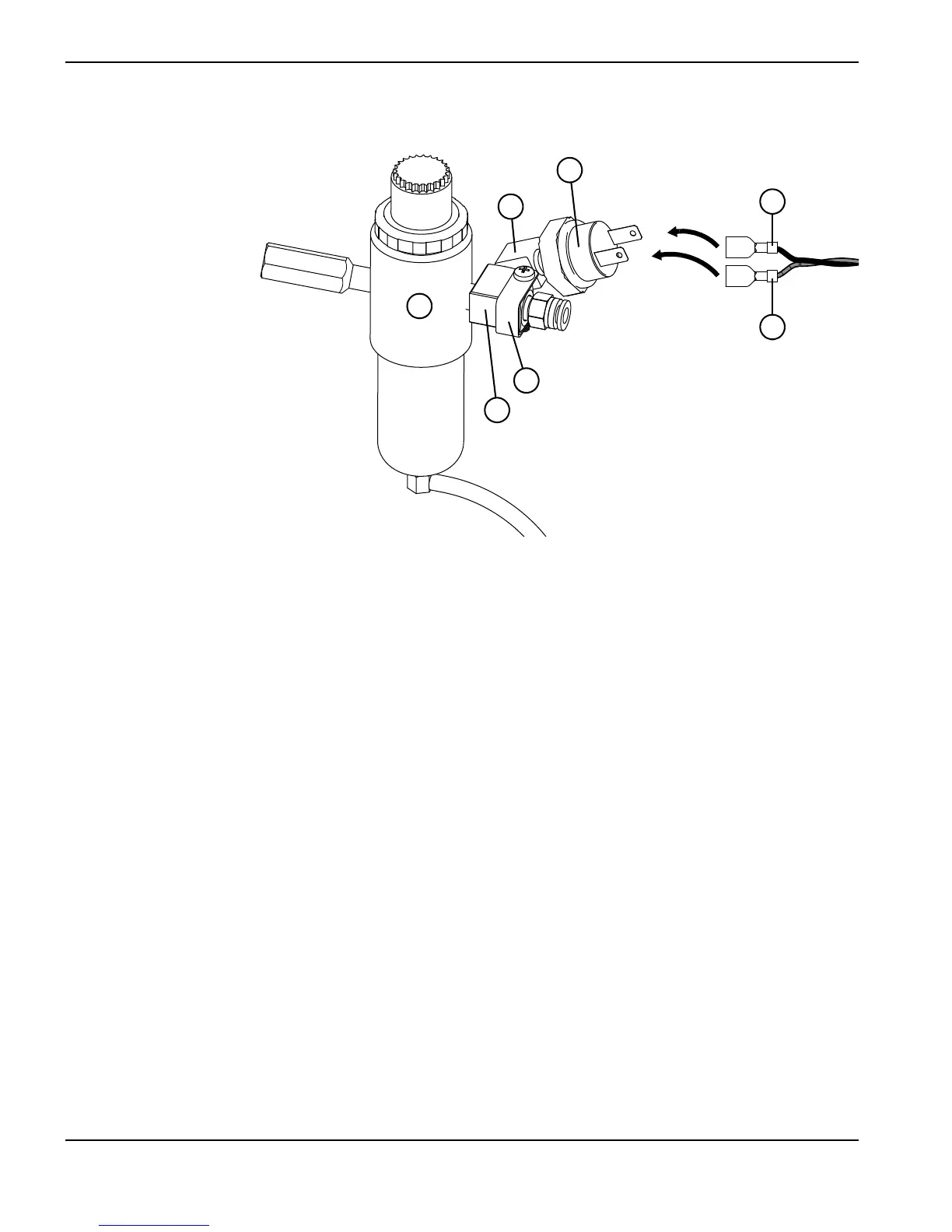

Figure 74
1
4
5
7
6
3
2
1
Air filter/regulator assembly
2
Brass “T” fitting
3
Ground wire clip
4
Red wire
5
Black wire
6
Pressure switch
7
Brass elbow fitting

Hypertherm Powermax30 XP Specifications

General

Input Voltage	120/240 V
Input Current @ 120V	30 A
Duty Cycle	60% @ 30 A
Rated Output	30 A
Air Flow	4.5 cfm
Gas Supply	Clean, dry air
Recommended Gas Inlet Flow Rate/Pressure	4.5 cfm @ 90 psi
Torch	Hand Torch
