MAINTENANCE
3-25
powermax600 Service Manual

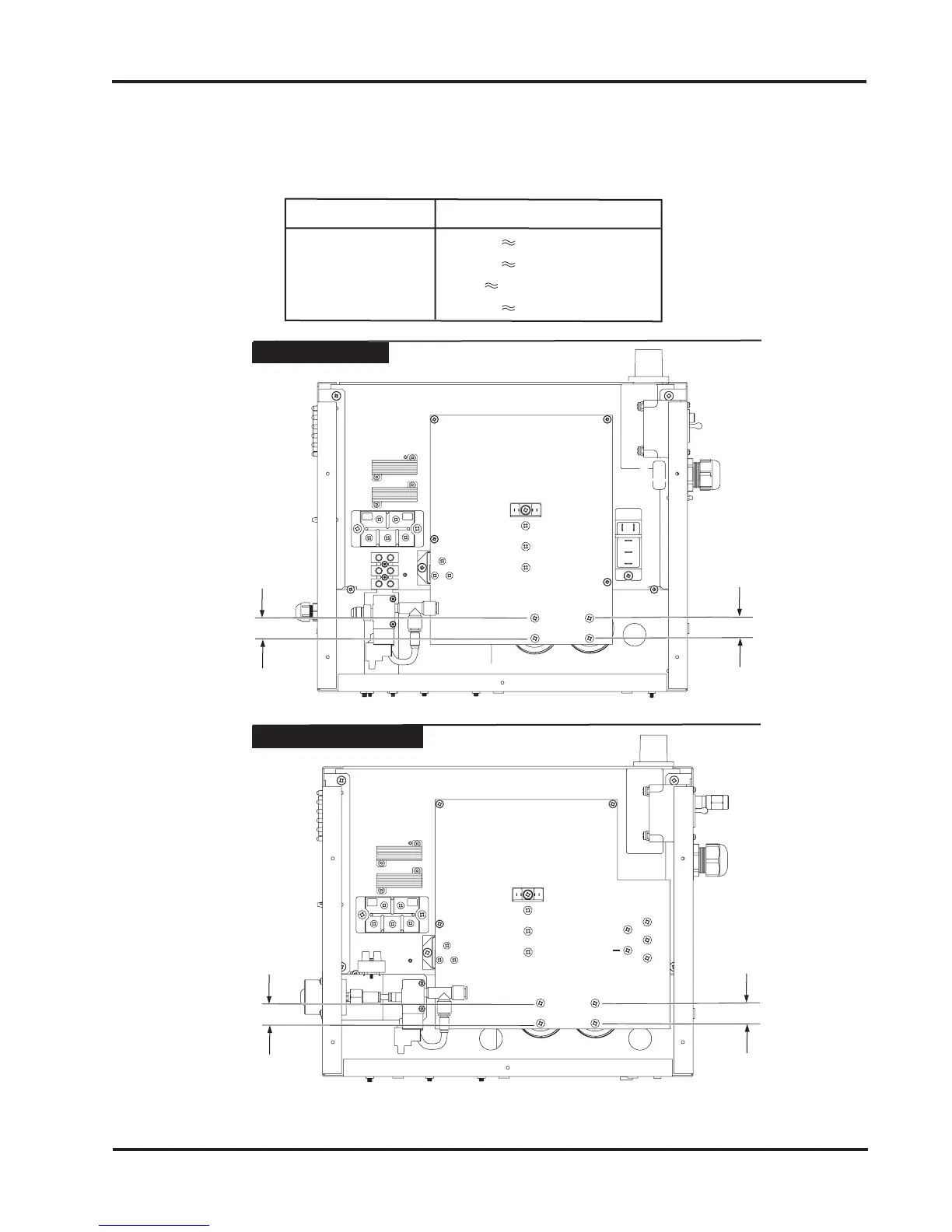

Figure 3-8 Voltage Check #4 - Across Power Supply Capacitors
Voltage Check #4 - Figure 3-8
• Check voltage across power supply capacitors.
230V and 400V
208-240V and 480V
PMX600.25
+
230 VAC
400 VAC
208-240 VAC
480 VAC
290 VDC
290 VDC
165-165 VDC
330 VDC
Line Voltage VDC Across Connections
10-99
