powermax600 Service Manual
PARTS LIST - 208-240/480V
Part
Item Number Description Designator Qty.
1 005112 Pressure Switch PS1 1
2 022027 Pressure gauge 1
3 014232 Inductor, output choke .80MH 40A L2 1
4 014252 Power transformer, 480V T2 1
014251 Power transformer, 208-230V T2 1
5 109179 Capacitor, 1800/1900UF 450V, 480V 2
109187 Capacitor, 1800/1900UF 250V, 208-230V 2
6 011083 Filter regulator subassembly 1
7 011086 Air filter element 1
8 011087 O-ring 1
9 129366 Fan subassembly, 480V M1 1
027654 Fan assembly, 208-230V M1 1

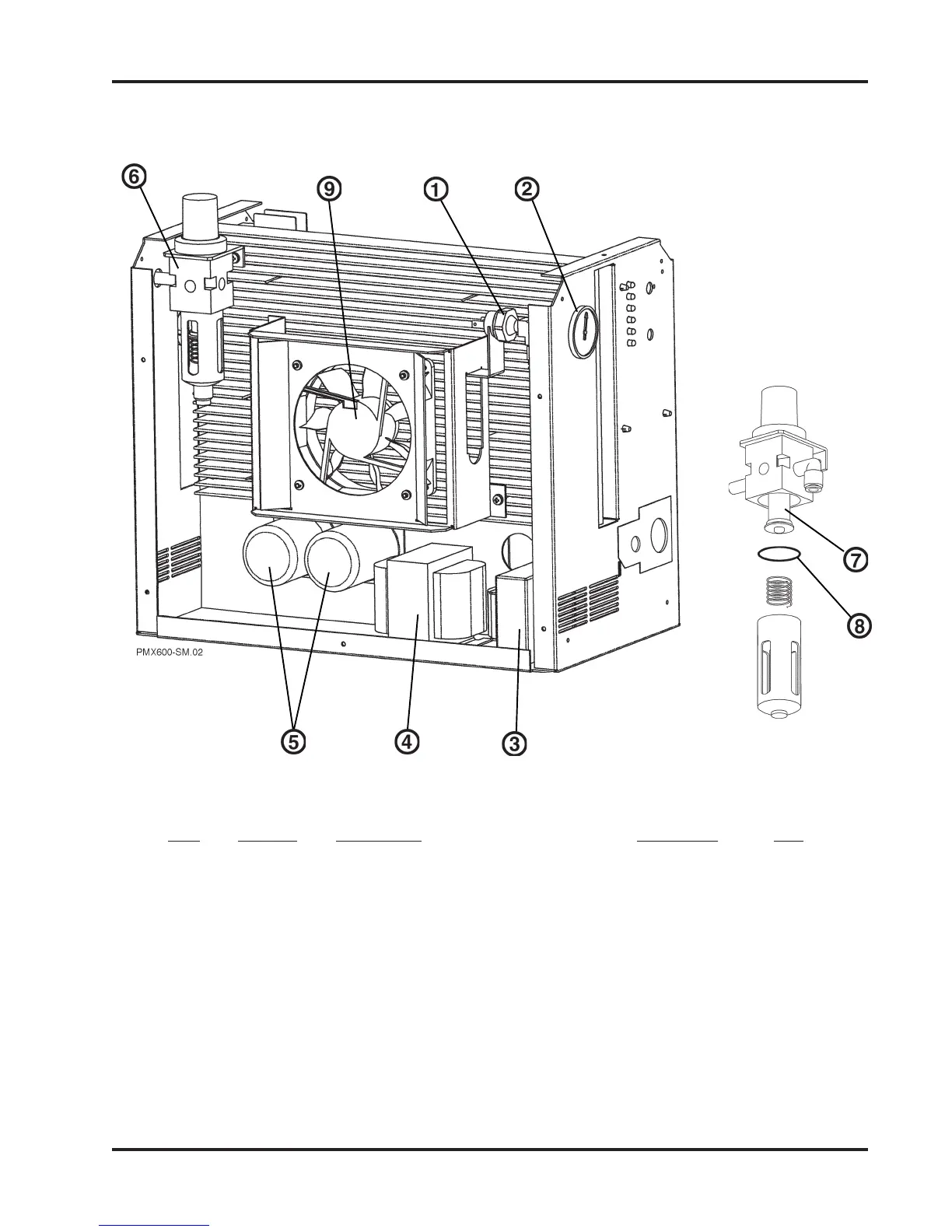

POWER SUPPLY – INTERIOR FAN SIDE
