4-6

PARTS LIST - 400/230V CE

powermax600 Service Manual

Part

Item Number Description Designator Qty.

1 109088 Output diode D2 1

2 129406 EMI suppression capacitor 1

3 009849 Resistor, 20 OHM 2

4 109080 IGBT, pilot arc Q3 1

5 005222 Temp switch TS1 1

6 109079 IGBT module Q2 1

7 009849 Resistor, 20 OHM 1

8 109067 MOV 1

9 109090 Input diode bridge, 400V D1 1

- 109134 Input diode bridge, 230V D1 1

10 041568 Power PCB, 400V PCB2 1

- 041607 Power PCB, 230V PCB2 1

11 008903 Thermal pad 3

12 027662 Thermal grease, 5 oz. tube 5 places

11-99

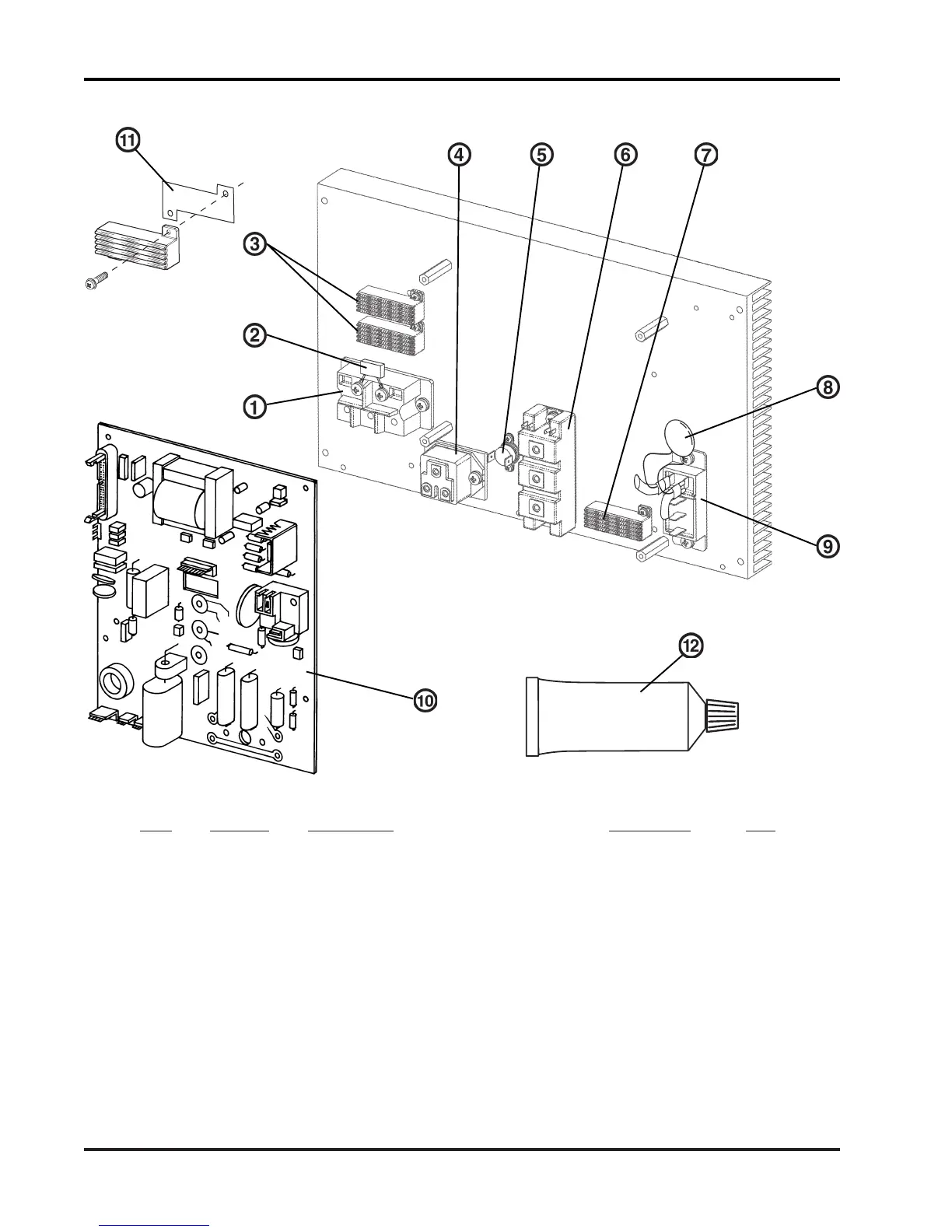

POWER SUPPLY – HEAT SINK ASSEMBLY

DC-120

PMX600.28
