2. ADJUSTMENT OF BRAKE
External brake inspection
·
Inspect for wear of brake pad.
4-40

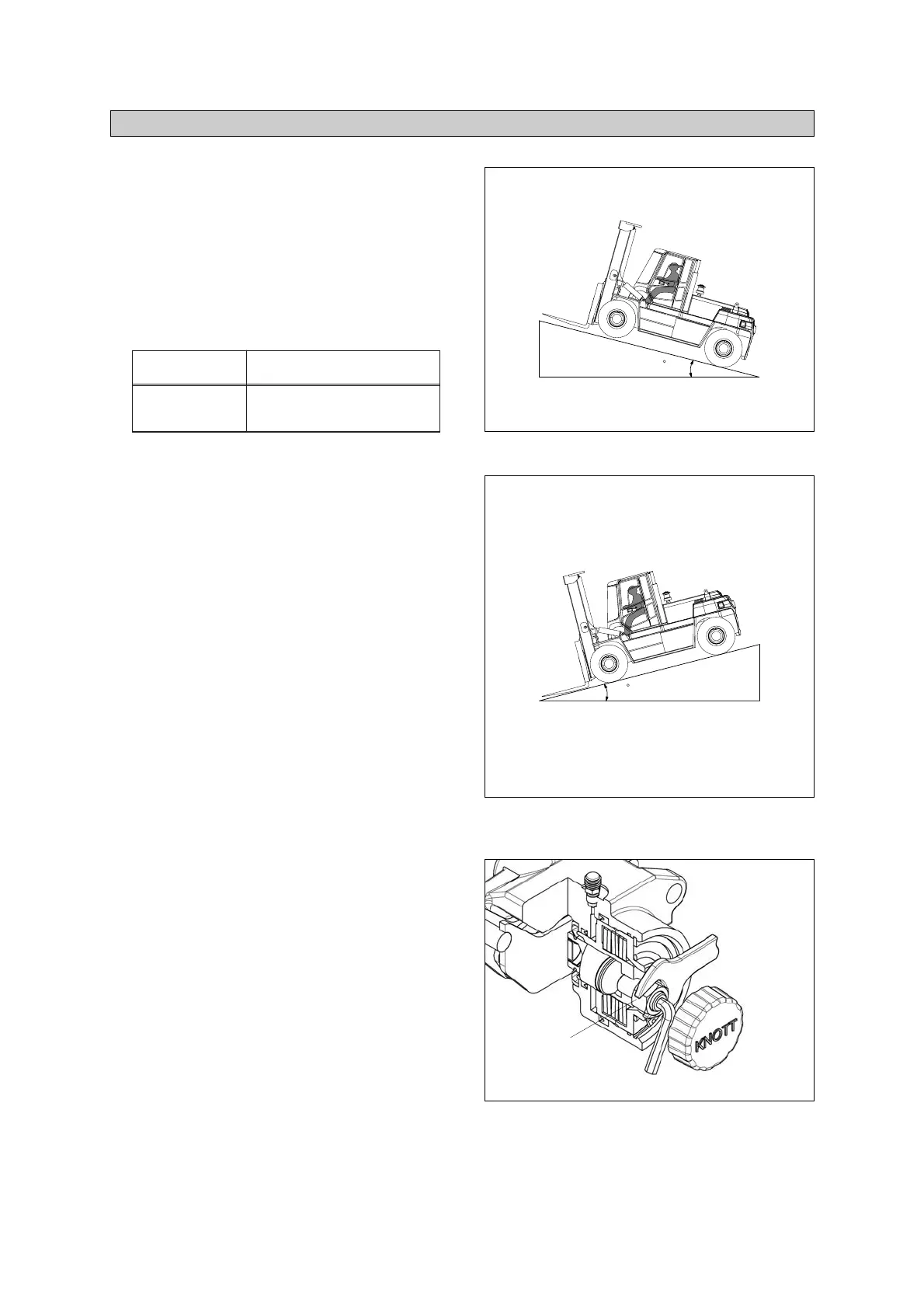

11. PARKING BRAKE PERFORMANCE
MEASUREMENT CONDITION
Tire inflation pressure: Specified pressure
Road surface: Flat, dry, paved surface
with 1/5(11
°20') gradient.
Machine : In operating condition
GROUP 3 TESTS AND ADJUSTMENTS
1)
(1)
(2)
(3)
MEASURING PROCEDURE
Start the engine and drive the machine
straight up a 1/5 gradient with the fork
unloaded.
Depress the service brake, place the gear
selector lever in neutral, then stop the
engine.
Turn the parking brake switch ON, then
slowly release the service brake pedal
and the machine must be kept stopped.
The measurement must be made with the
machine facing either up or down the
slope.
(1)
(2)
(3)
※
Standard value
Keep machine on 20
%
(11°20') gradient
Item
Parking brake
performance
22)
1)
