4-43
GROUP 4 DISASSEMBLY AND ASSEMBLY

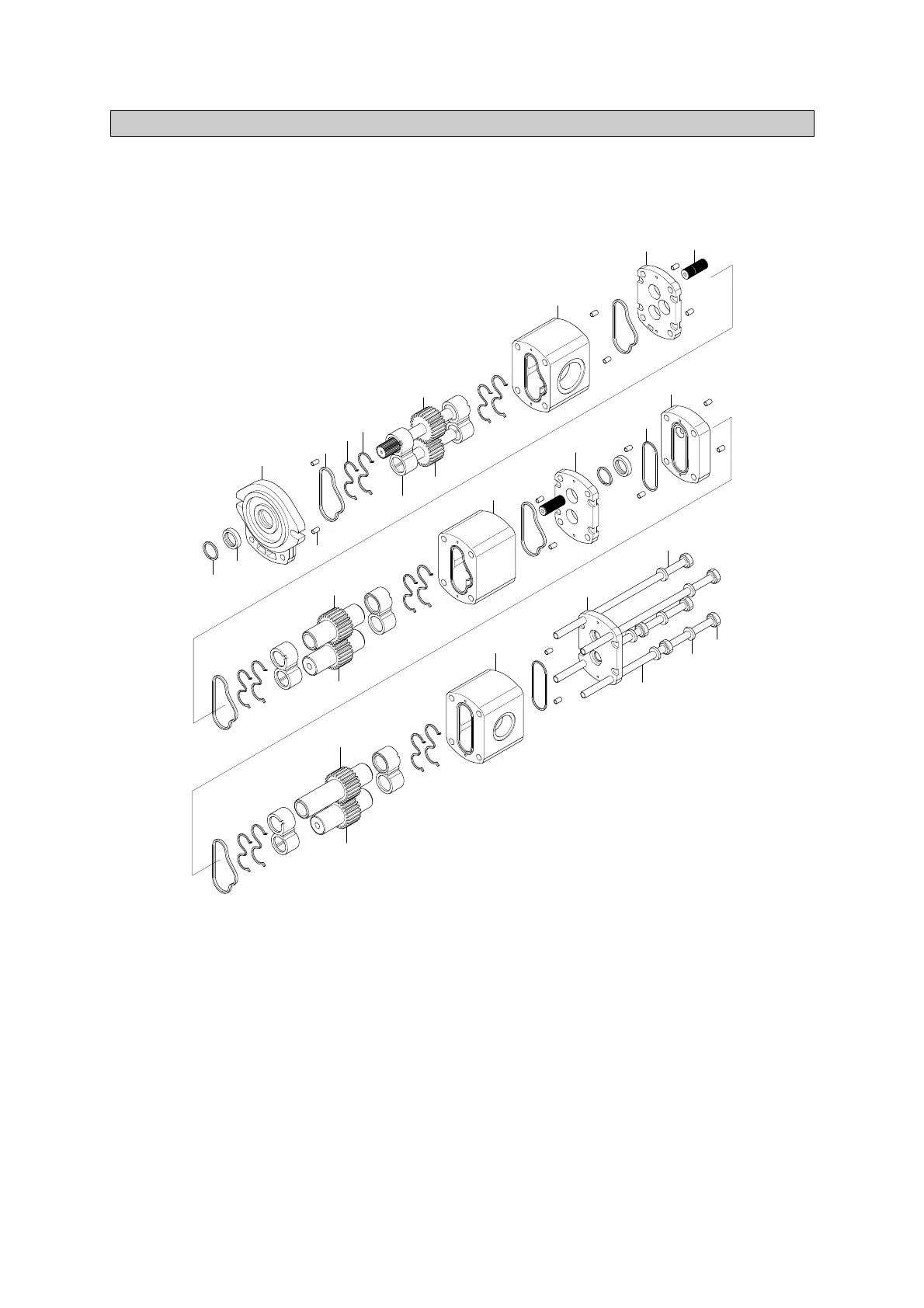

1. BRAKE PUMP
STRUCTURE
1)
1 Body
2 Body
3 Body
4 Mounting flange
5 Rear cover
6 Pressure plate
7 Drive gear
8 Drive gear
9 Drive gear
10 Driven gear
11 Driven gear
12 Driven gear
13 Nut
14 Washer
15 Square ring
16 Square ring
17 O-ring
18 Shaft seal
19 Snap ring
20 Back up ring
21 Middle flange
22 Middle flange
23 Middle flange
24 Through shaft
25 Guide pin
26 Stud bolt
27 Bolt
18
19
4
16
3
23
24
20
17
9
25
6
12
7
11
2
22
15
21
8
10
1
5
13
14
26
27
110D7EBS06
