Hyundai 130D-7E User Manual

5-21

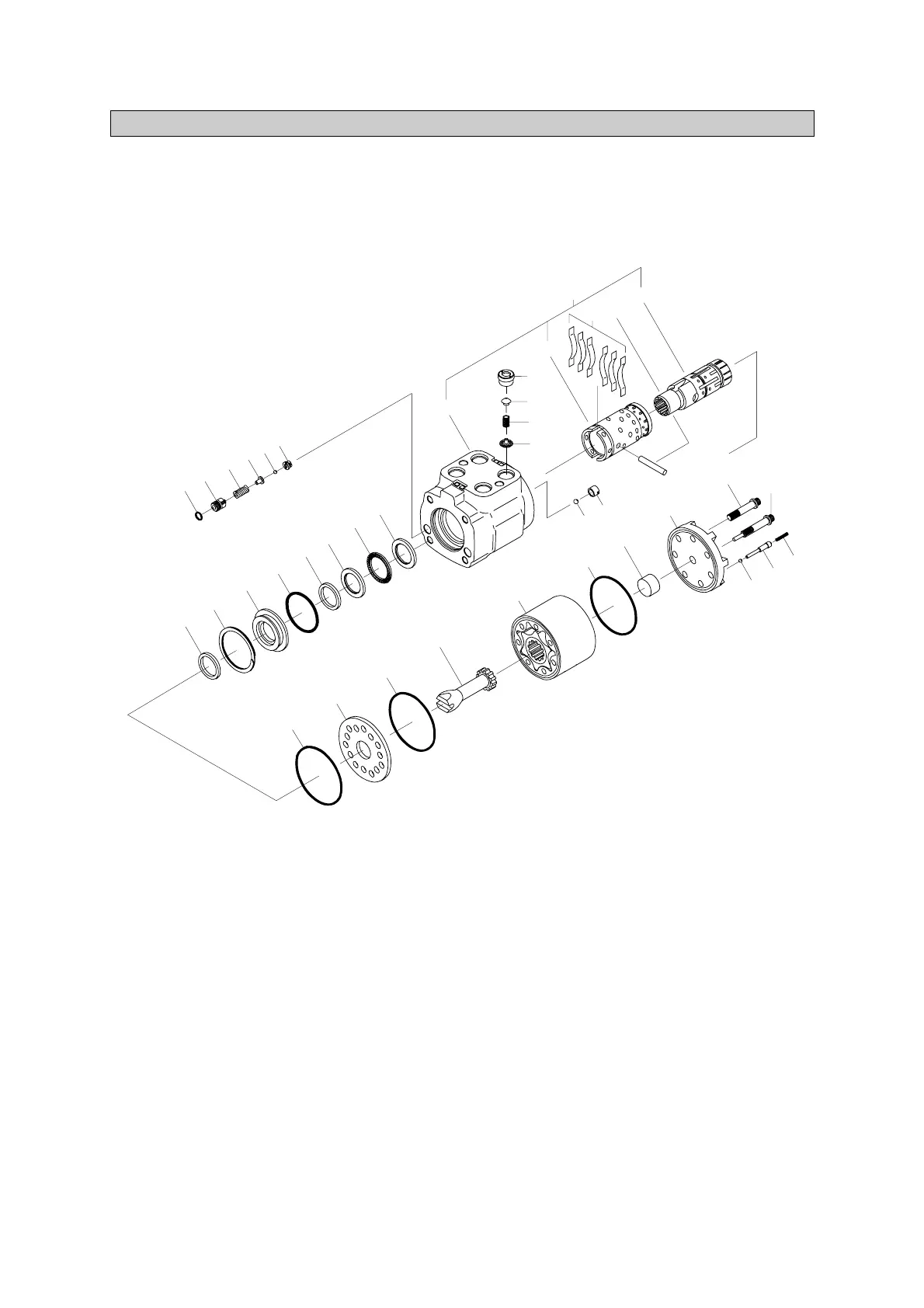

1. STEERING UNIT
STRUCTURE
1)
1 Cap screw
2 Retainer screw
3 Cap end
4 Gerotor
5 Spacer plate
7 Spacer plate
8 Cardan shaft
9 Control parts assembly
10 Housing
11 Sleeve
12 Spool
13 Pin
14 Centering spring
16 Spacer bearing
17 Needle bearing
18 O-ring
19 Seal
20 Dust seal
21 Retaining ring
22 Bushing
23 O-ring
24 O-ring
25 Adopt screw
26 Ball
31 Check valve sub assy
32 Poppet
33 Body
34 Guide
35 Spring
41 Retainer plug
42 Spring
43 Ball
44 seat
45 Ball
46 Holder
47 Spring
48 Plug
49 O-ring
51 Name plat
52 Rivet
GROUP 4 DISASSEMBLY AND ASSEMBLY
49
48
47
46
45
44
9
20
21
22
18
19
16
17
16
10
33
32
35
34
26
25
3
1
2
42
41
43
23
4
8
23
5
7
24
11
14
13
12
100D7SS10
