2-1

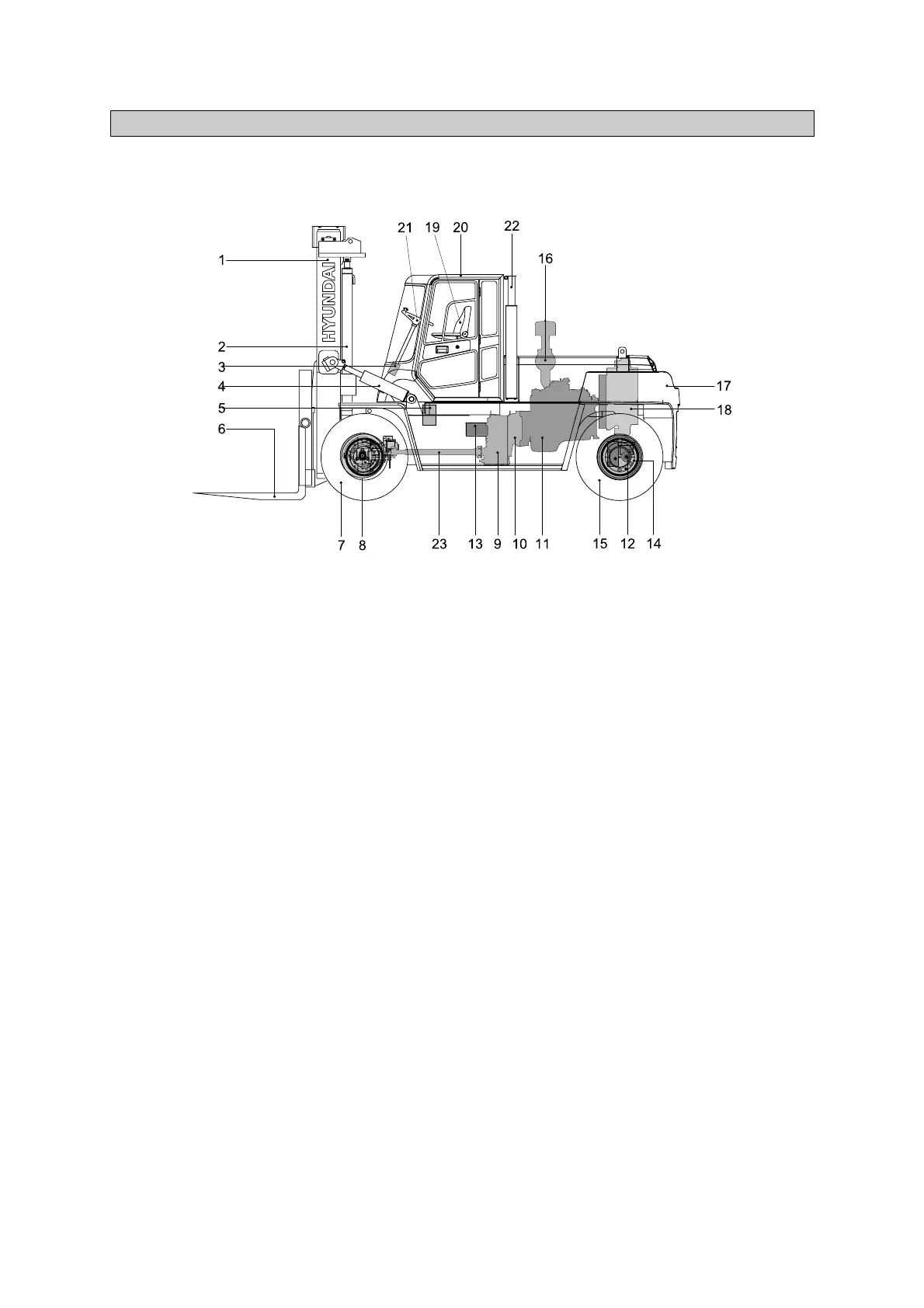

GROUP 1 STRUCTURE
160D7EOM21
1 Mast
2 Lift cylinder
3 Steering unit
4 Tilt cylinder
5 Main control valve
6Fork
7 Front wheel
8 Drive axle
9 Transmission
10 Torque converter
11 Engine
12 Steering cylinder
13 Hydraulic pump
14 Steering axle
15 Rear wheel
16 Air cleaner
17 Counterweight
18 Radiator
19 Seat
20 Cabin
21 Steering wheel
22 Muffler
23 Propeller shaft
