7-27

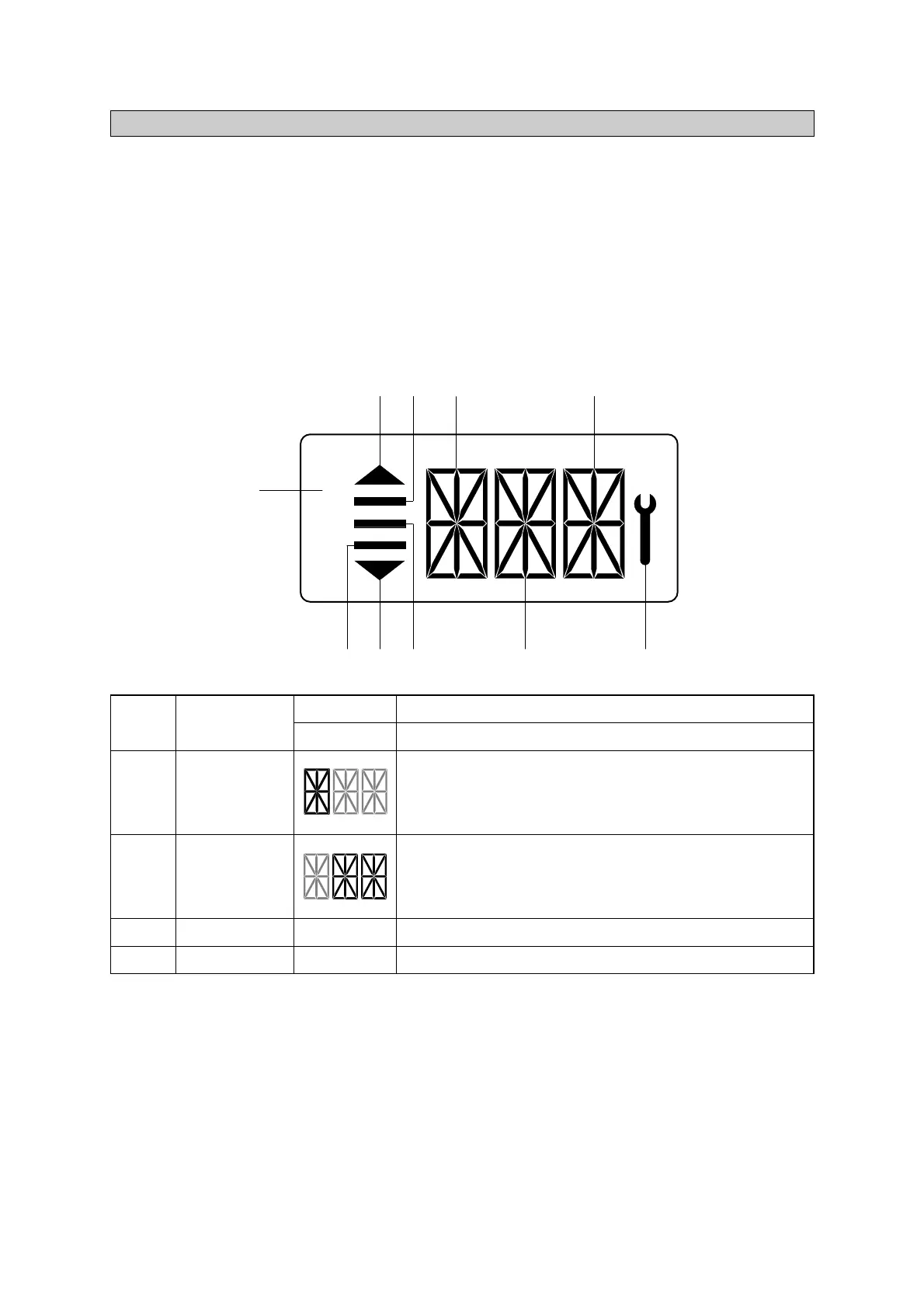

TRANSMISSION ERROR DISPLAY
Function
The display can be used with the gear selector. It indicates speed and driving direction as well as
the activated inching.
When driving in the automatic mode, a bar indicator gives additionally also information about the
selected driving range ; The automatic range is symbolized by arrows above and below the bar
indicator. In case of possible errors in the system, a wrench appears on the display, combined with
indication of the error number. Also sporadically occurring errors can be indicated.
1)
(1)
D507CD33
1
2
3
4
5
Bars
Left side
Central and
Right side
Spanner
Letters STOP
a, f
b, c, d,
g
h
Automatic range(up and down shiftion)
Preselected gear
For the moment still without function
On the two alphanumerica 16-segment display, the electric
control unit issues the actual state of gear and driving
direction. Besides, a two digit error code will be indicated
via these two segment
Electronic control unit recognized an error, is flashing
Immediate stop is required(at the moment not activated)
Abbreviations
OC : Open circuit
SC : Short circuit
OP mode : Operating mode
TCU : Transmission control unit
EEC : Electronic engine controller
PTO : Power take off
(2)
GROUP 4
TRANSMISSION MESSAGE INDICATOR
