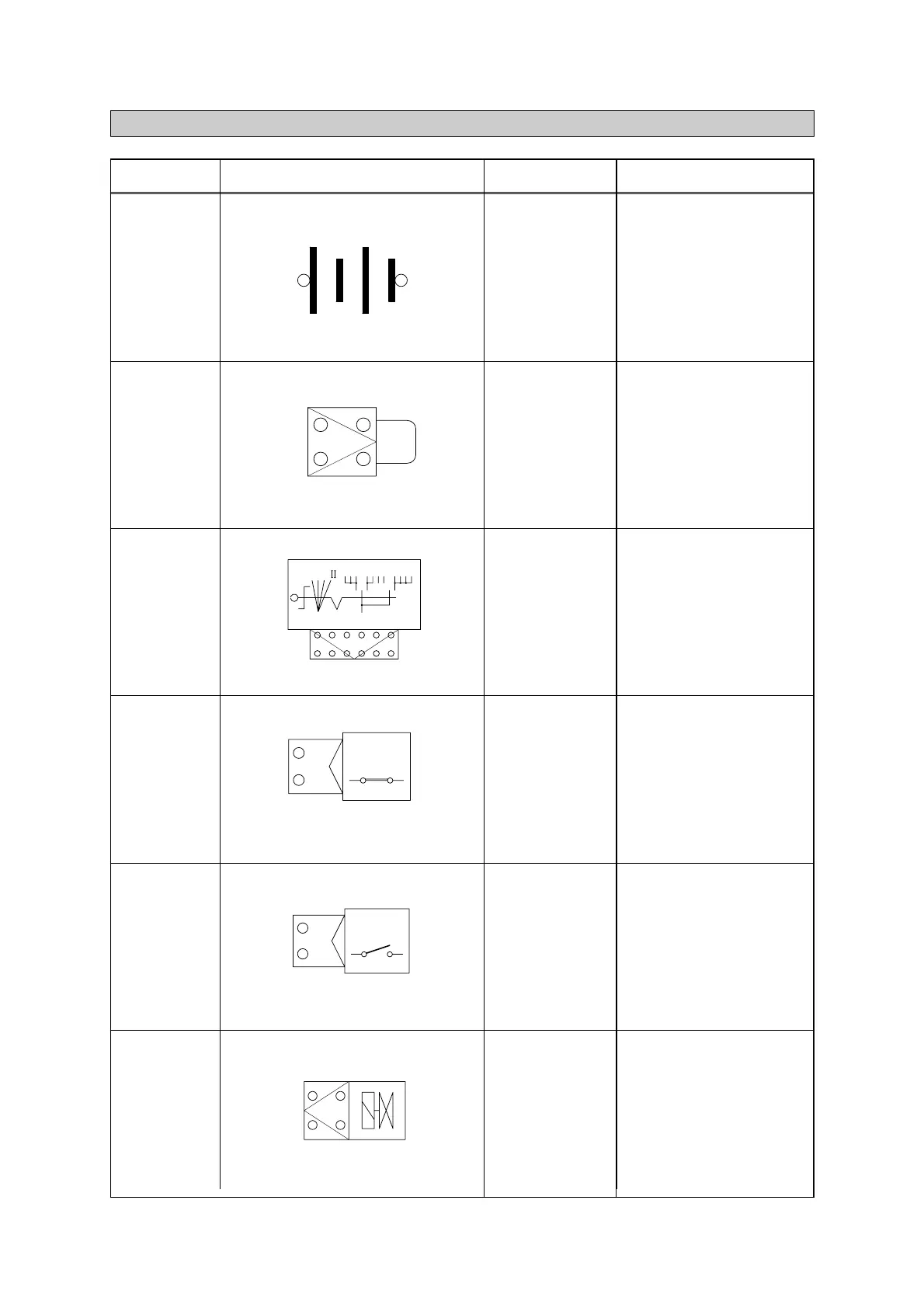

GROUP 6 ELECTRICAL COMPONENT SPECIFICATION
Battery
Fusible link
Start key
Pressure switch
Pressure switch
12V
× 200Ah
(2EA)
CN-60 : 24V 27A
CN-95 : 24V 45A
※ Check specific gravity
1.280 over : Over charged
1.280 ~ 1.250 : Normal
1.250 below : Recharging
※ Check disconnection
Normal : 0Ω
(Connect ring terminal and
check resistance between
terminal 1 and 2)
-
※ Check contact
OFF : ∞Ω(For each terminal)
ON : 0Ω(For terminal 1-3)
∞Ω(For terminal 1-5)
START : 0Ω(For terminal 1-3
and 1-5)
N.C TYPE
N.O TYPE
※ Check contact
Normal : 0Ω(CLOSE)
※ Check contact
Normal : ∞Ω(OPEN)
1
2
CN-71
Solenoid valve
(Parking, fan
EPPR valve)
24V 300A
※ Check LED lamp.
※ Check resistance
About 24Ω
CD-4
CD-75
CN-71 CN-154
