3. CLUSTER
The gauges panel consists of gauges and monitors as shown below, to warn the operator in case
of abnormal truck operation or conditions for the appropriate operation and inspection.
·
Gauges : Indicate operating status of the truck.
·
Warning lamp : Indicate abnormality of the truck.
·
Pilot lamp : Indicate operating status of the truck.
·
LCD : Select or display the truck model, error code and engine speed etc.
※
The monitor installed on this truck does not entirely guarantee the condition of the truck.
The monitor installed on this truck does not entirely guarantee the condition of the truck.
Daily inspection should be performed according to chapter 7. PLANNED M
Daily inspection should be performed according to chapter 7. PLANNED M
AINTENANCE
AND LUBRICATION.
※
When the monitor provides a warning immediately check the problem, and perform the
When the monitor provides a warning immediately check the problem, and perform the
required action.

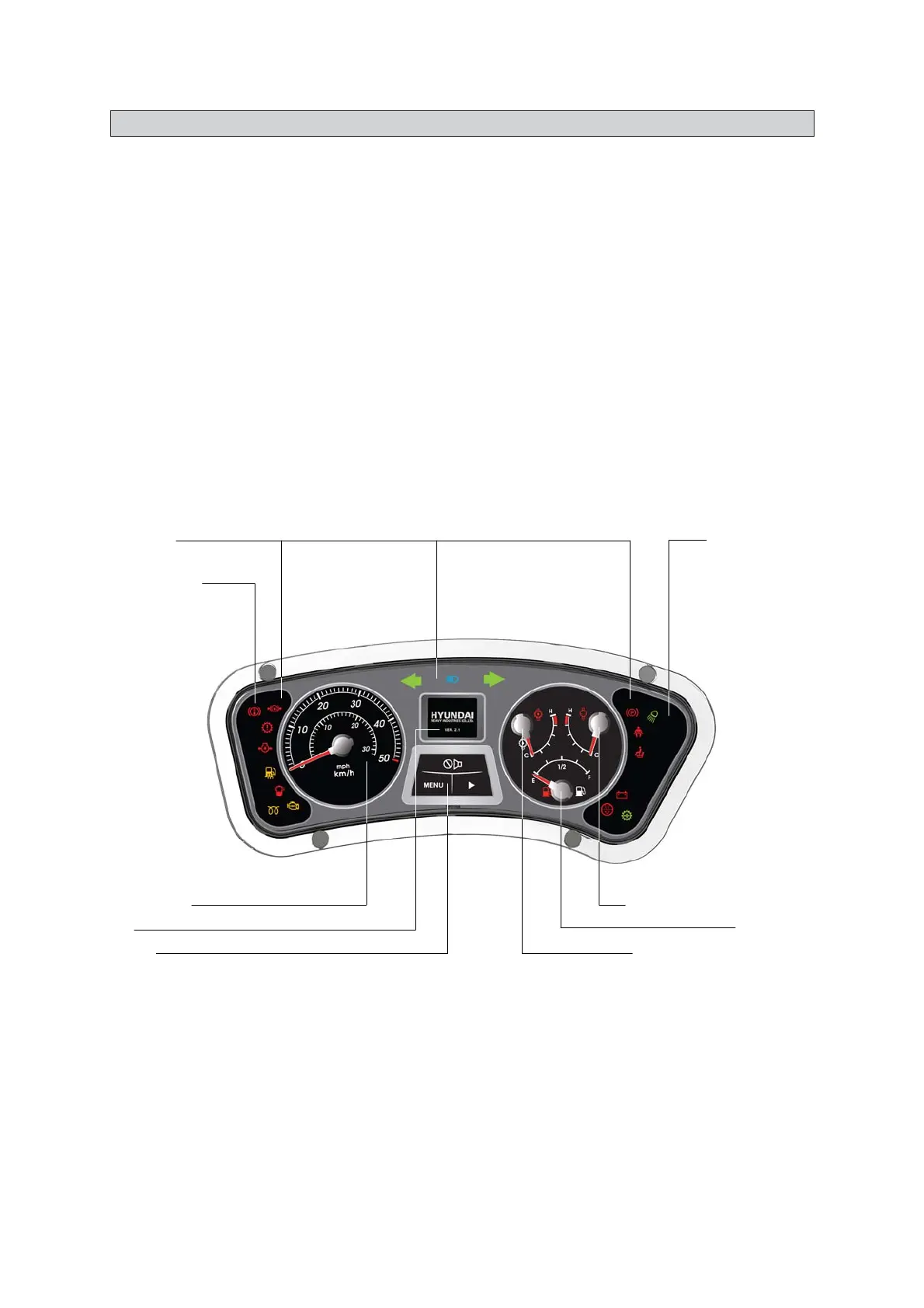

STRUCTURE
1)
T/M oil temperature gauge
Warning lamps
(see page 7-16)
Speed meter
Engine coolant temp gauge
LCD
Fuel gauge
Warning lamps
(see page 7-16)
Pilot lamps
(see page 7-20)
Buttons
160D7ECD02S
