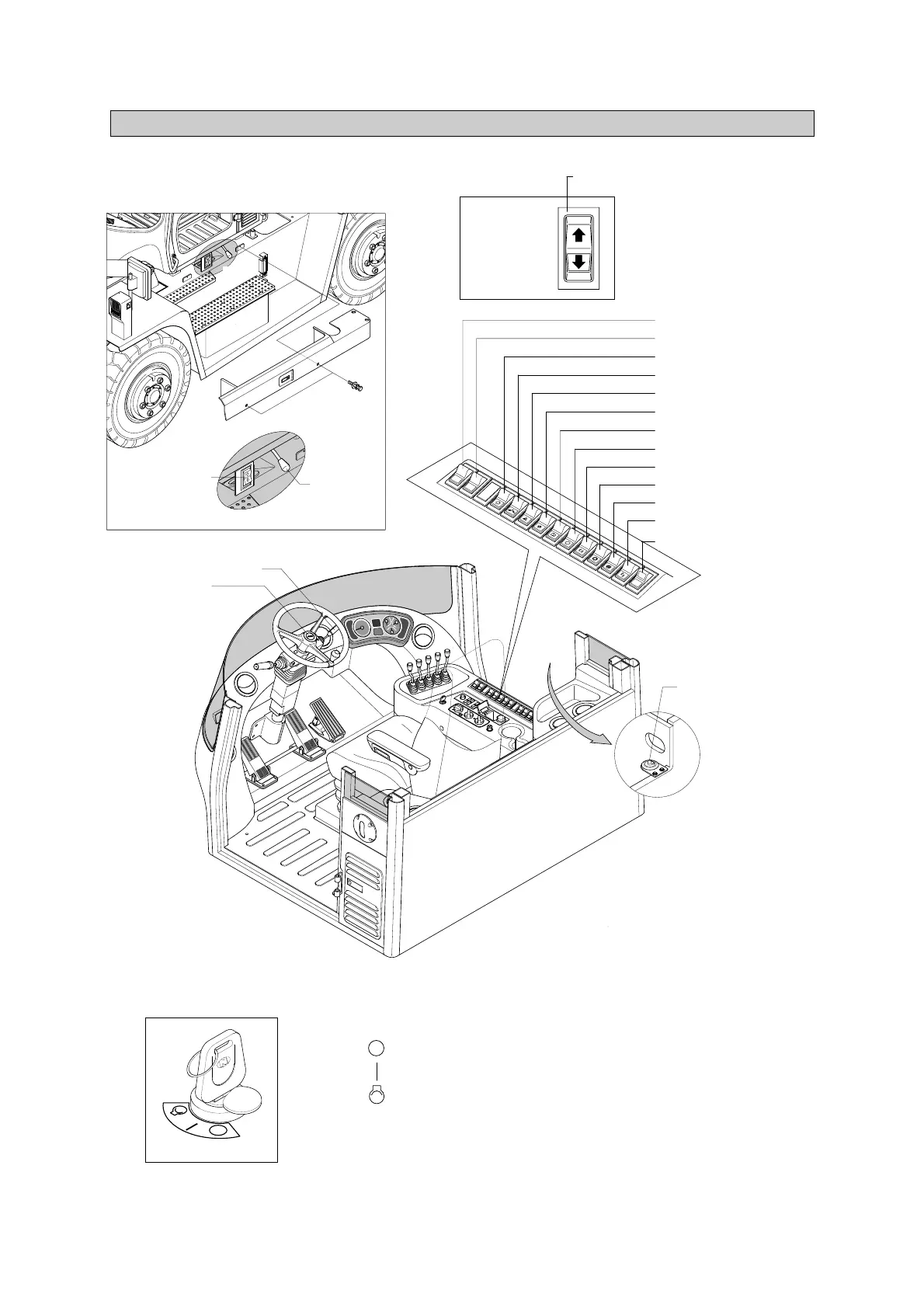

GROUP 5 SWITCHES
p
A
Engine mode switch
Inc/Dec switch
Inching switch
Auto/Manual select switch
Seat heat switch
Aircon switch
Hazard switch
Work lamp switch
Main light switch
Center horn
Multi function switch
C
R
U
S
E
S
E
T
Cover(LH)
A
DETAIL A
Lock lever
Cruise set-resume switch
Cruise switch
Rear wiper/washer switch
A
Parking brake switch
P
O
W
E
R
S
T
A
N
D
A
R
D
Cabin tilt switch location
UP
STOP
DOWN
DETAIL A
Cabin tilt switch
Cabin tilt switch
Switch panel
Master switch
START SWITCH
There are three positions, OFF, ON and START.
· (OFF) : None of electrical circuits activate.
· (ON) : All the systems of truck operate.
· (START) : Use when starting the engine.
Release key immediately after starting.
1)
(1)
77073CD41
160D7CD05
