7-33
7
Maintenance
Filter inspection
The climate control air filter should
be replaced according to the
Maintenance Schedule. If the vehicle
is operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.
Replace the filter according to the
Maintenance Schedule.
Filter replacement

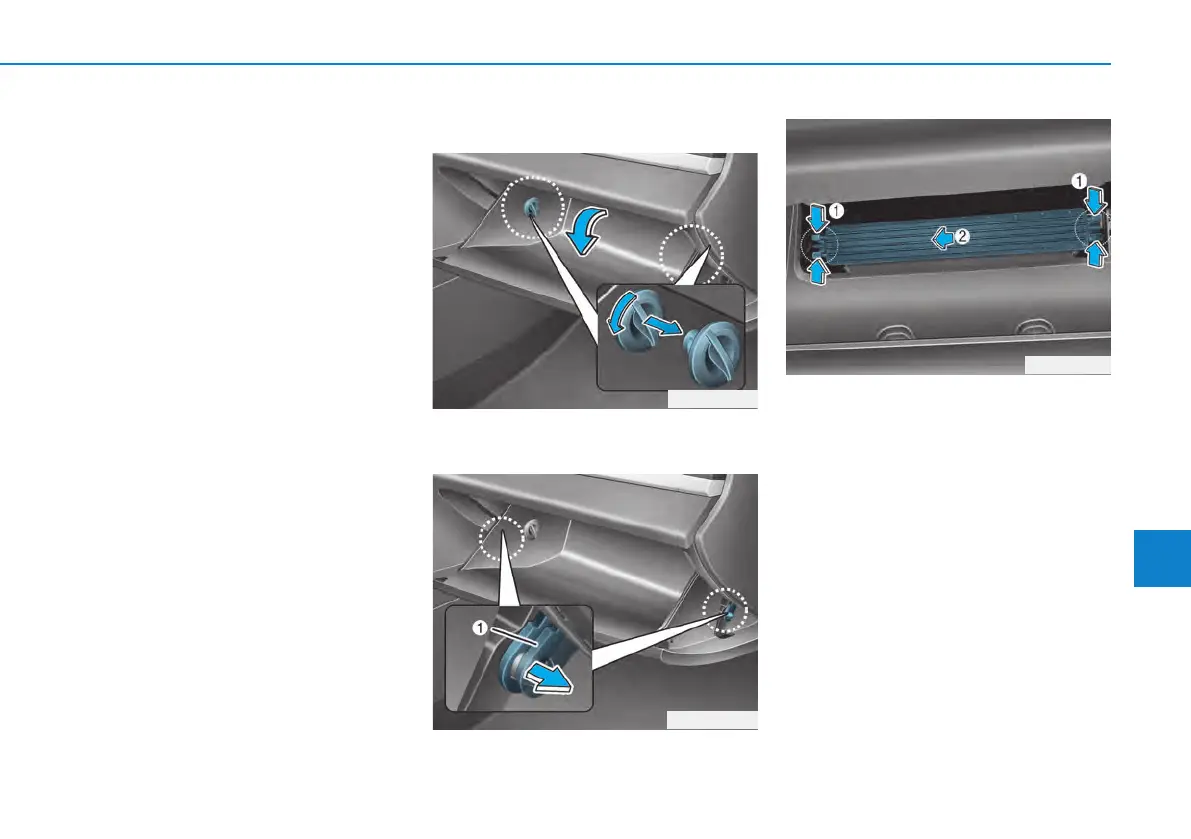

1.With the glove box open, remove
the stoppers on both sides.
2.Remove the support rod (1).
3. Press and hold the lock (1) on both
sides of the cover.
4. Pull out (2) the cover.
CCLLIIMMAATTEE CCOONNTTRROOLL AAIIRR FFIILLTTEERR
OAD078017N
OAD078018N
OAD075019
