Flush-rear (recessed) mounting
1 Screws, 10-32 x 5/8-in., panhead
Phillips
2 Retainer nuts, 10-32

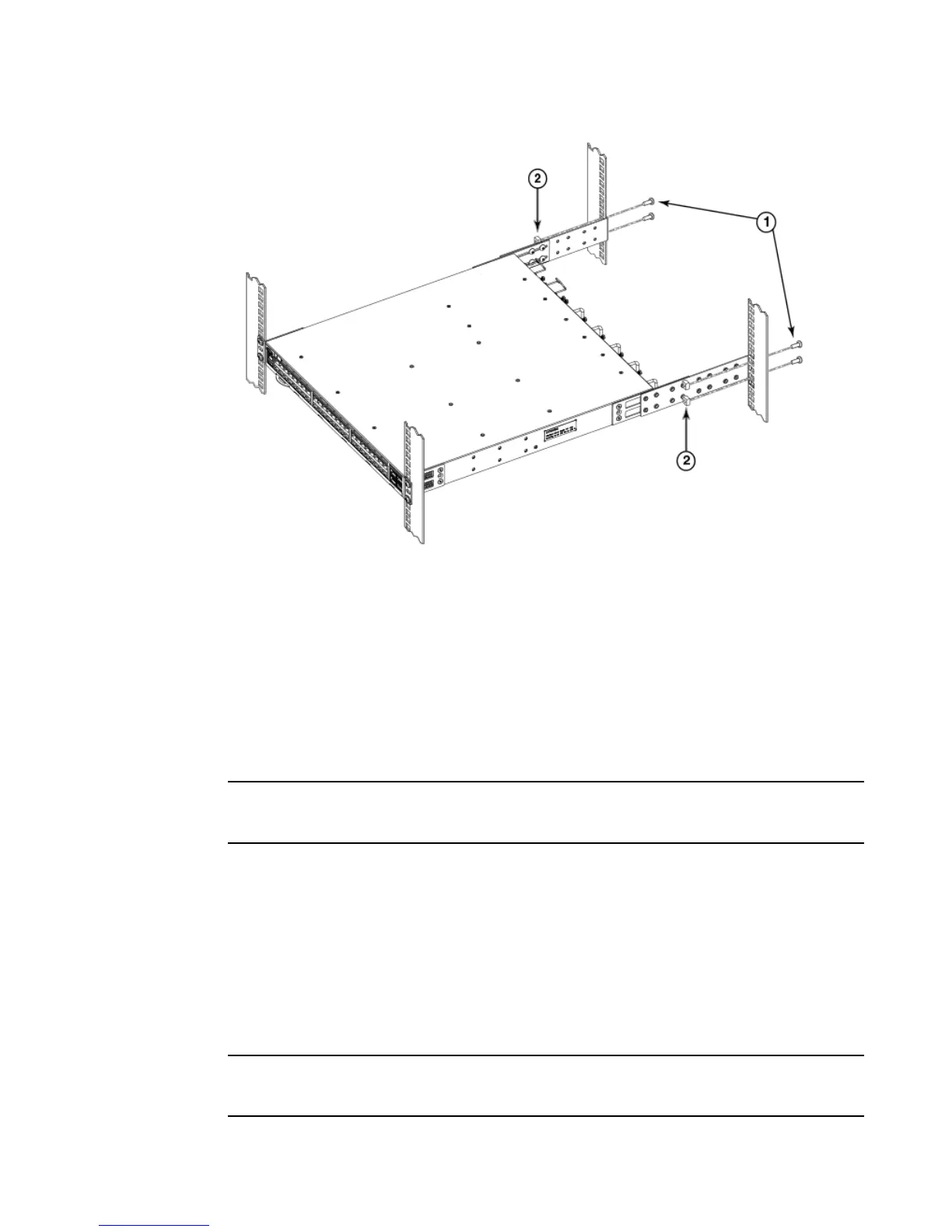

FIGURE 8 Attaching the rear brackets to the rack posts
Flush-rear (recessed) mounting
The flush-rear (recessed) mounting is similar to the flush-front mounting except that the brackets are
reversed on the device.
NOTE
The device must be turned off and disconnected from the fabric during this procedure.
Complete the following tasks to install the device in a four-post rack:
1. Attaching the front brackets to the rear of the device on page 34
2. Attaching the extensions to the front of the device on page 35
3. Installing the device in the rack on page 36
4. Attaching the rear brackets to the extensions at the front of the device on page 37
5. Attaching the rear brackets to the front rack posts on page 39
Attaching
the
front brackets
to the rear of the device
NOTE
In this installation, the brackets are named as listed in the parts list even though the installation of the
brackets is reversed from the flush-front installation.
34 Hardware Installation Guide
