Installing a QSFP transceiver
3. To insert the replacement transceiver, use the pull tab on the SFP+ transceiver to carefully push the
transceiver into the port. Transceivers are keyed so that they can only be inserted with the correct
orientation. If a transceiver does not slide in easily, ensure that it is correctly oriented.
NOTE
Each SFP+ transceiver has a 10-pad gold-plated PCB-edge connector on the bottom. The correct
position to insert an SFP+ transceiver into the upper row of ports is with the gold edge down. The
correct position to insert an SFP+ transceiver into the lower row of ports is with the gold edge up.
1 Pull tab
2 Transceiver

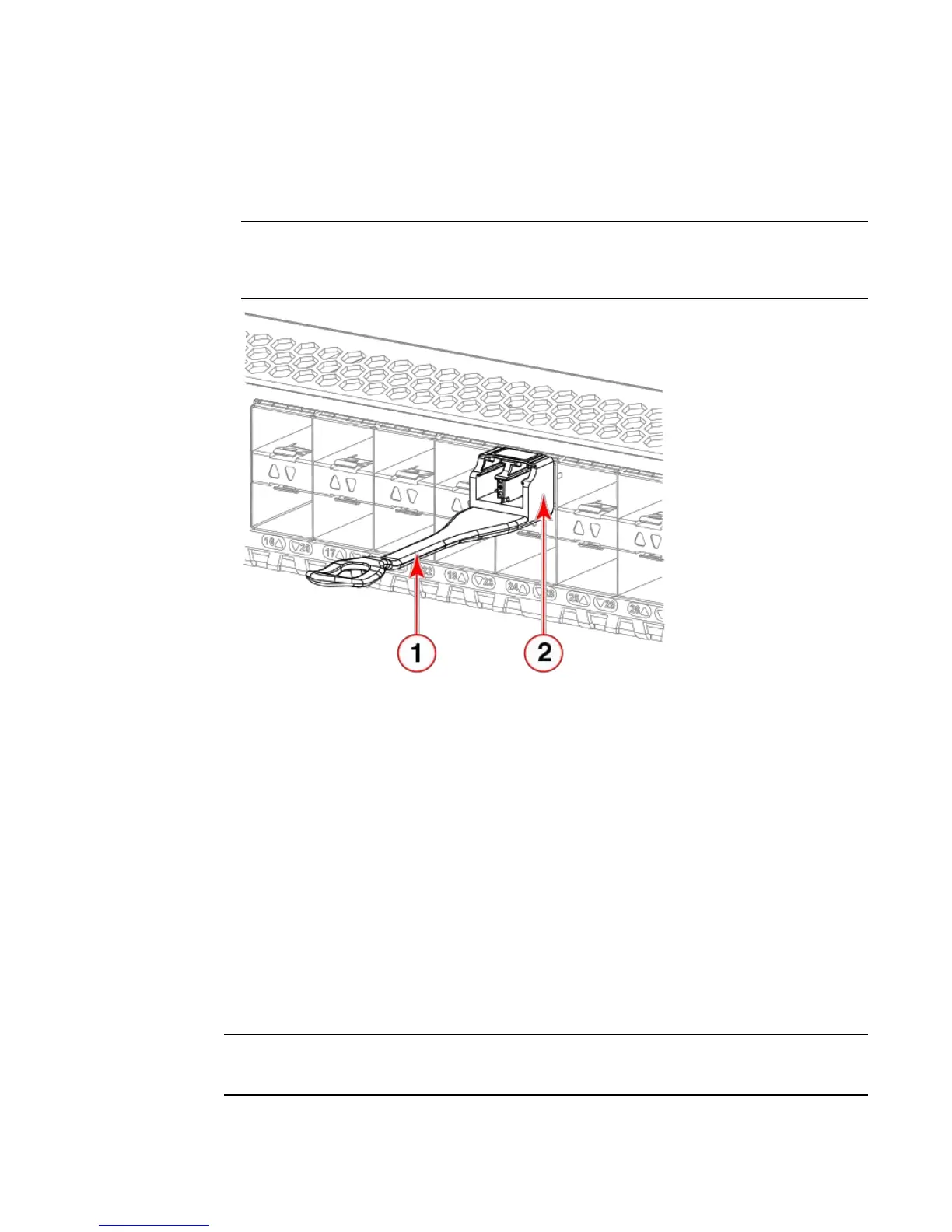

FIGURE 26 Replacing a 32-Gbps SFP+ optical transceiver
4. Position a cable so that the key (the ridge on one side of the cable connector) is aligned with the slot
in the transceiver. Insert the cable into the transceiver until the latching mechanism clicks.
Cables are keyed so that they can be inserted in only one way. If a cable does not slide in easily,
ensure that it is correctly oriented.
Installing a QSFP transceiver
The device supports only Brocade-qualified transceivers. If you use an unqualified transceiver, the
switchshow command output shows the port in a Mod_Inv state. Fabric OS also logs the issue in the
system error log. To insert an QSFP transceiver, complete the following steps:
NOTE
The QSFP transceivers do not have bails but pull tabs. Always use the pull tab to insert or remove the
QSFP transceivers, as the QSFP might be hot.
Hardware Installation Guide 63
