NOTE: Installing the processor
•

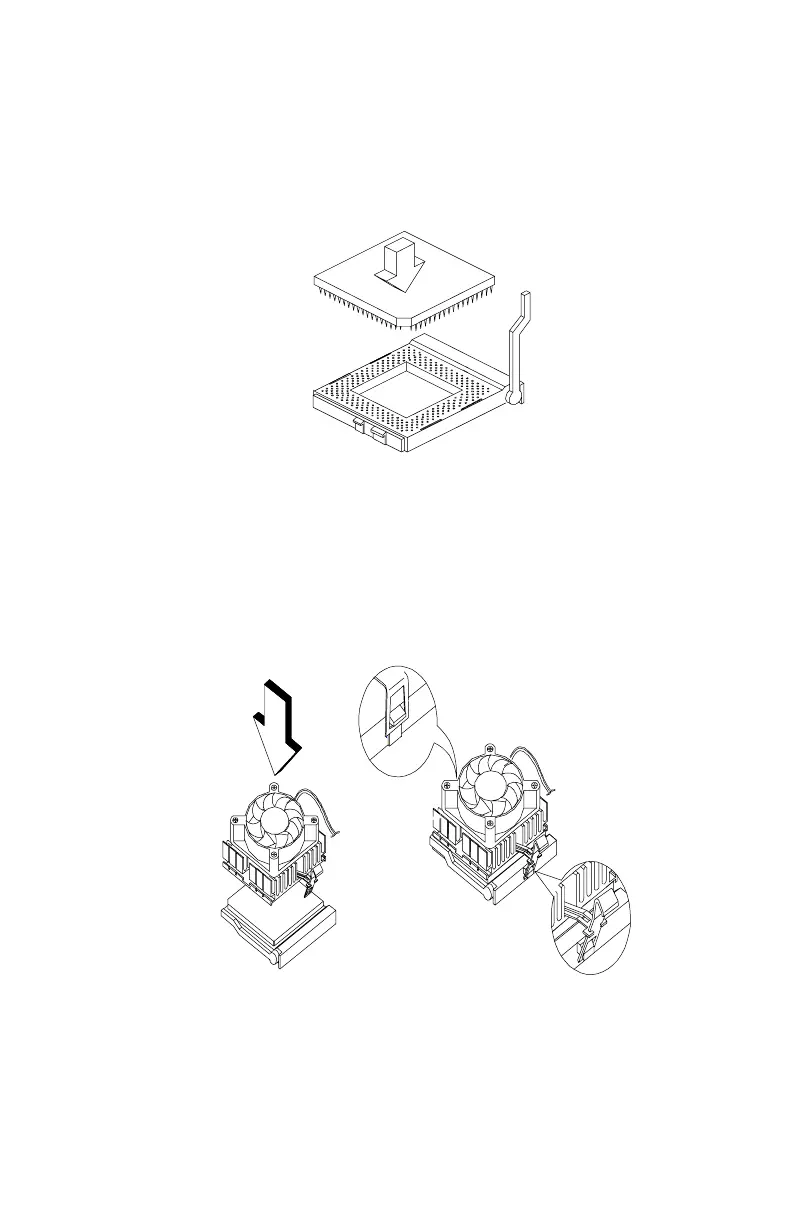

Place the ZIF socket release lever to the release (up) position.
•
Insert the new processor, matching the notched corner of the processor with
the pin 1 indicator on the socket.
•
Push down the lever to lock the processor to the socket.
•
Place the processor heat sink fan over the processor.
•
Insert one side of fan brace onto the ZIF socket
•
Secure by latching the other side to the ZIF socket.
•
Reconnect the processor fan sink cable to the connector FN1 on the system
board.
