176

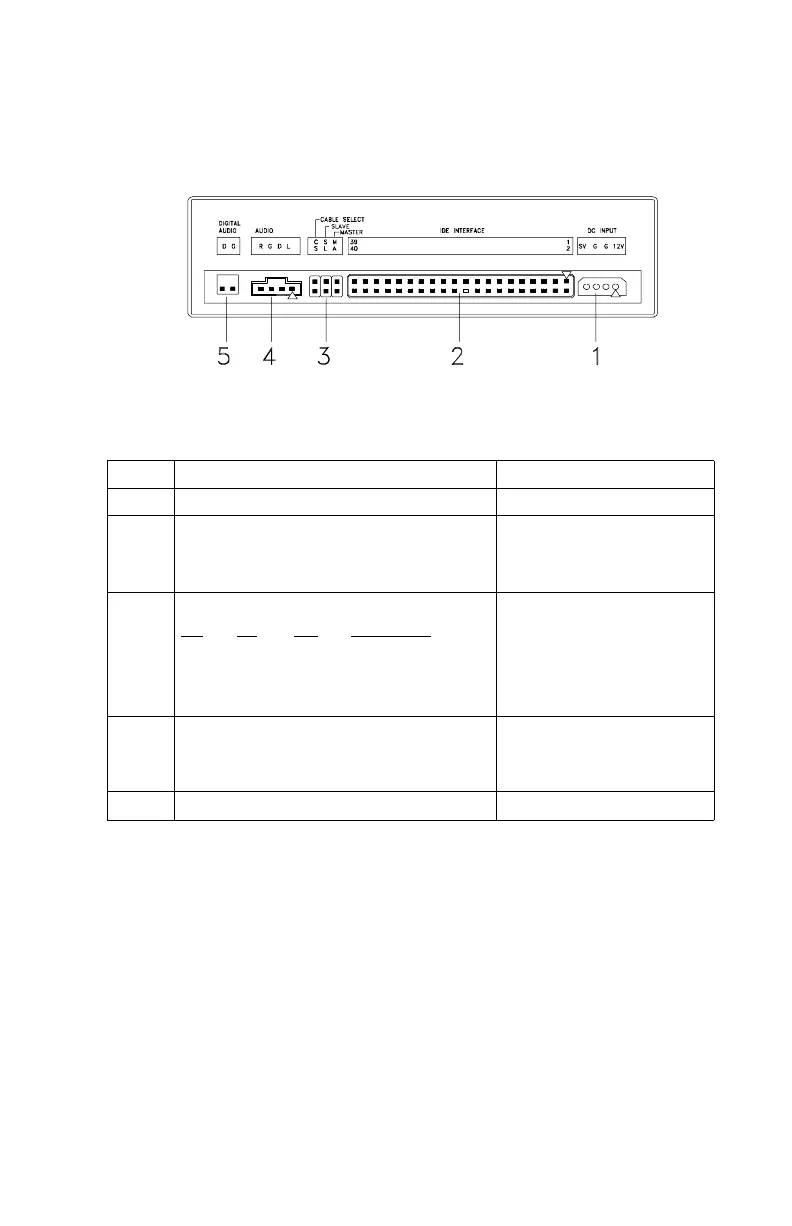

DVD-ROM Drive Rear Panel Connectors and Jumpers
DVD-ROM Drive Rear Panel Connectors and Jumpers
Item Function Connect to...
1 Power connector Power supply
2 IDE Interface connector System board
2170: CN12
2171/2172: CN10
3 Configuration jumper.
CS
SL MA Description
-- -- On Master(default).
-- On -- Slave.
On -- -- Cable select
--
4 Analog Audio connector System board
2170: CN 20
2171/2172: CN8
5 Digital audio output --
