171

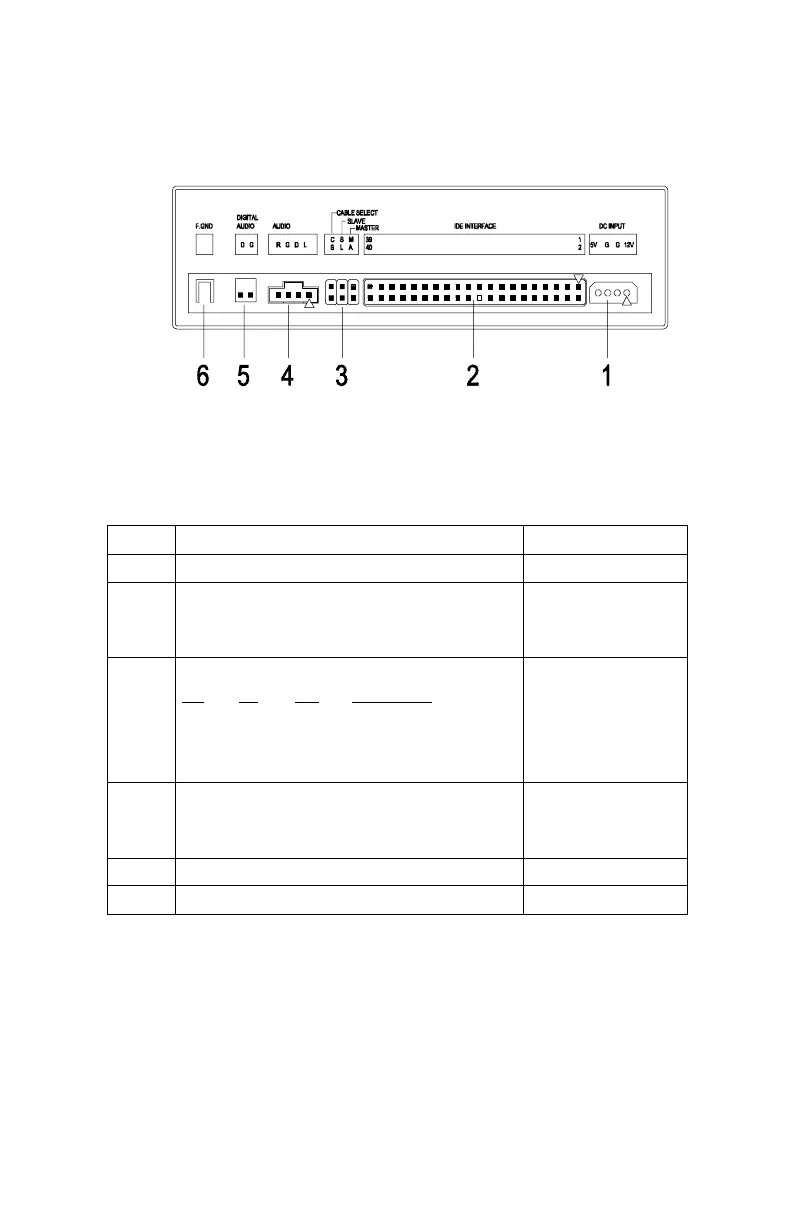

CD-ROM R/W Drive Rear Panel Connectors and Jumpers
NOTE:
CD-ROM R/W drives may come with item no. 5(digital audio output)
connectors.
CD-ROM R/W Drive Rear Panel Connectors and Jumpers
Item Function Connect to...
1 Power supply connector Power supply
2 Interface connector System board
2170: CN12
2171/2172: CN10
3 Configuration jumper.
CS
SL MA Description
-- -- On Master(default).
-- On -- Slave.
On -- -- Cable select
--
4 Audio line out connector System board
2170: CN20
2171/2172: CN8
5 Digital audio output --
6 F. GND (Ground Tab
