156
CIS-Non Voice
CIS-Voice
NOTE: Care should be taken while connecting the voice-in/speaker-out
connector. The longer exposed end (about. 15mm) of the cable should
be connected to the modem card. The other end should be connected to
the system board.

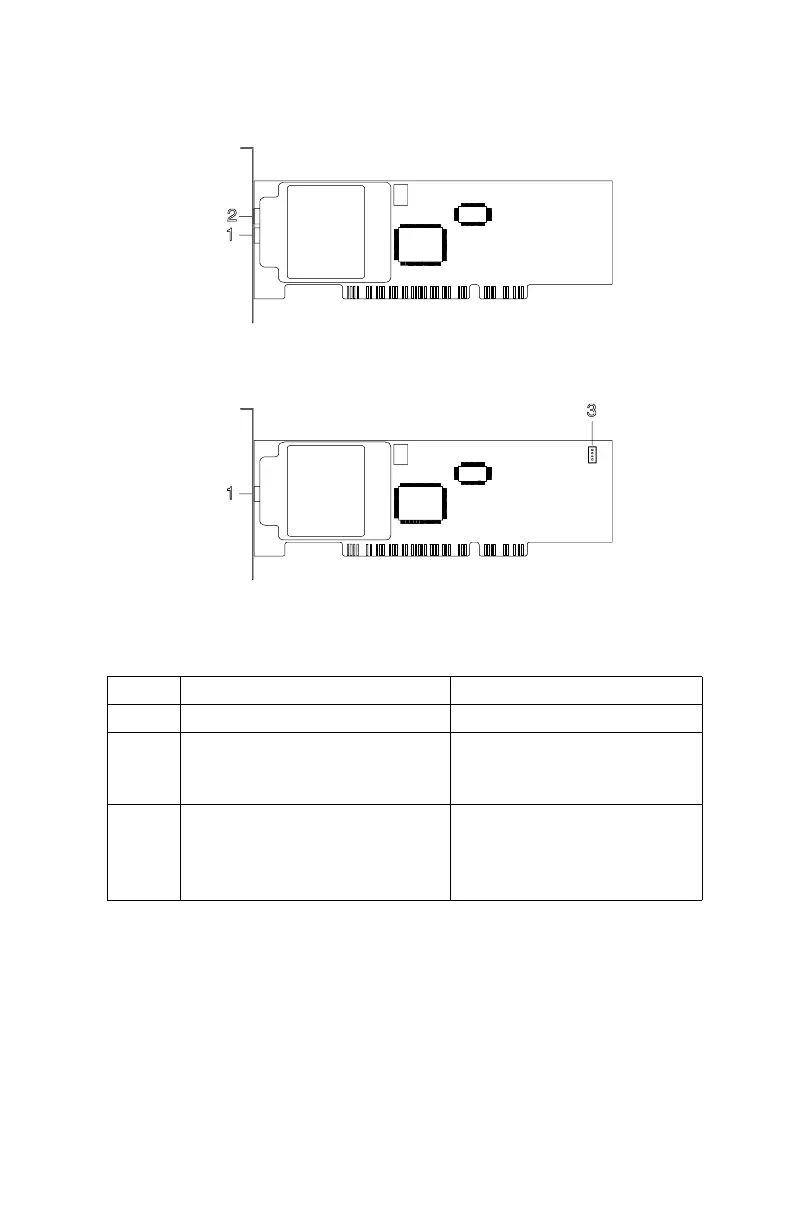

CIS Factory-Installed Modem Card Connector Functions
Item Function Connect to...
1 Telephone line-in Telephone line
2 Telephone line-out
Some modem adapters may come
without this jack.
Telephone set
3 Voice-in/speaker-out connector System board
Machine Type 2170: CN 21
Machine Type 2171 and 2172:
CN12
To Next Page
