The third or fourth DIMM from the top (DIMM 0 or DIMM 1) of the IXS card is the failing item. To
determine the part number, go to symbolic FRU “MEMORY” on page 401.
This
ends the procedure.
DIMM 3
For use by authorized service providers.

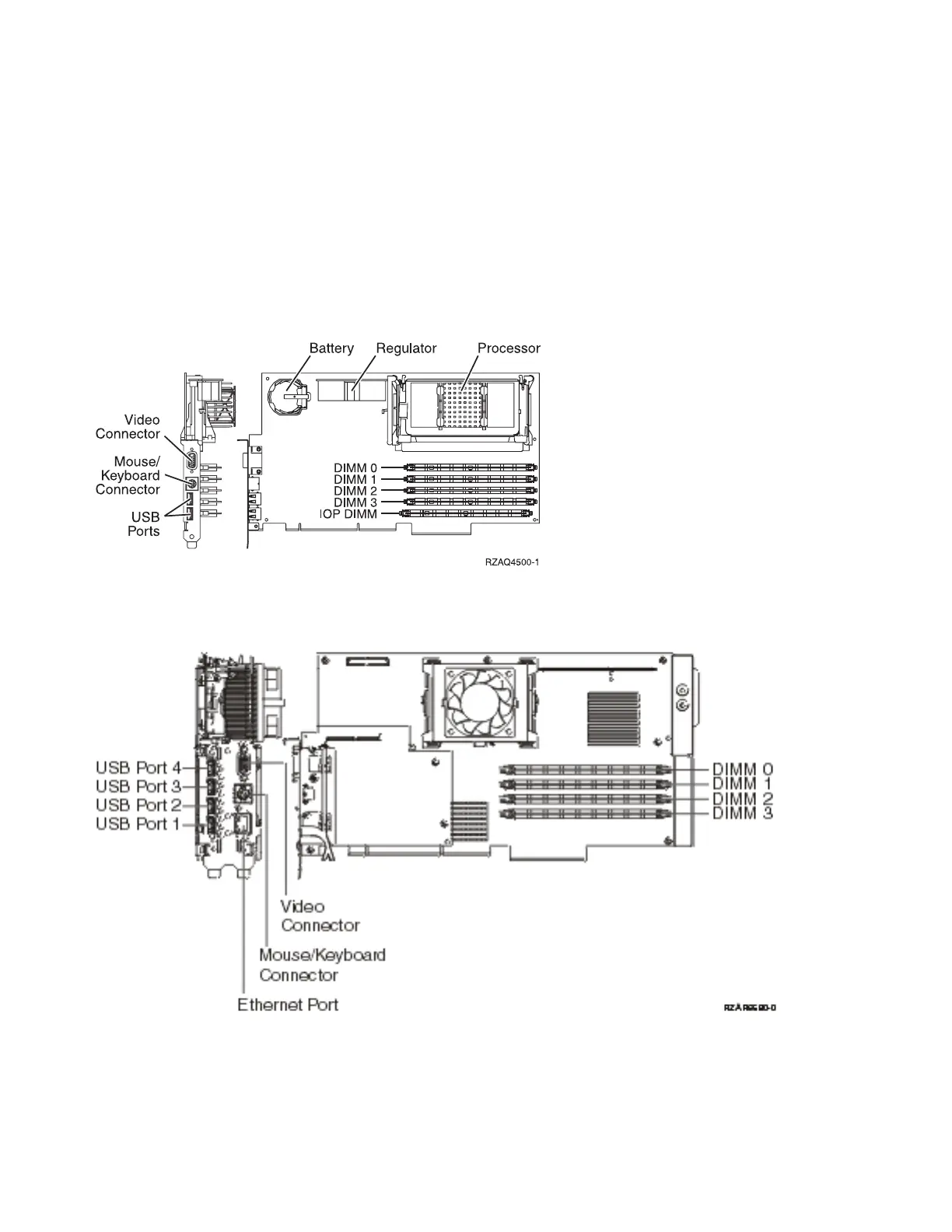

Use this page to view the Locations of DIMM 0, DIMM 1, DIMM 2 and DIMM 3 on the 2890 and 2892
Integrated xSeries Server (IXS) cards.
Figure 1. Locations of DIMM 0, DIMM 1, DIMM 2 and DIMM 3 on 2890 Integrated xSeries Server (IXS)
card
Figure 2. Locations of DIMM 0, DIMM 1, DIMM 2 and DIMM 3 on 2892 Integrated xSeries Server (IXS)
card
In both figures, the fourth DIMM from the top (DIMM 3) of the IXS card is the failing item. To determine
the part number, go to symbolic FRU “MEMORY” on page 401.
This
ends the procedure.
330 iSeries: iSeries Server 270, 800, 810, 820, 825, 830, 840, 870, 890, SB2, and SB3 Hardware Problem Analysis and
Isolation
To Next Page
