3.4 System architecture
This section explains the system board architecture and the use of the QPI wrap card.
3.4.1 System board

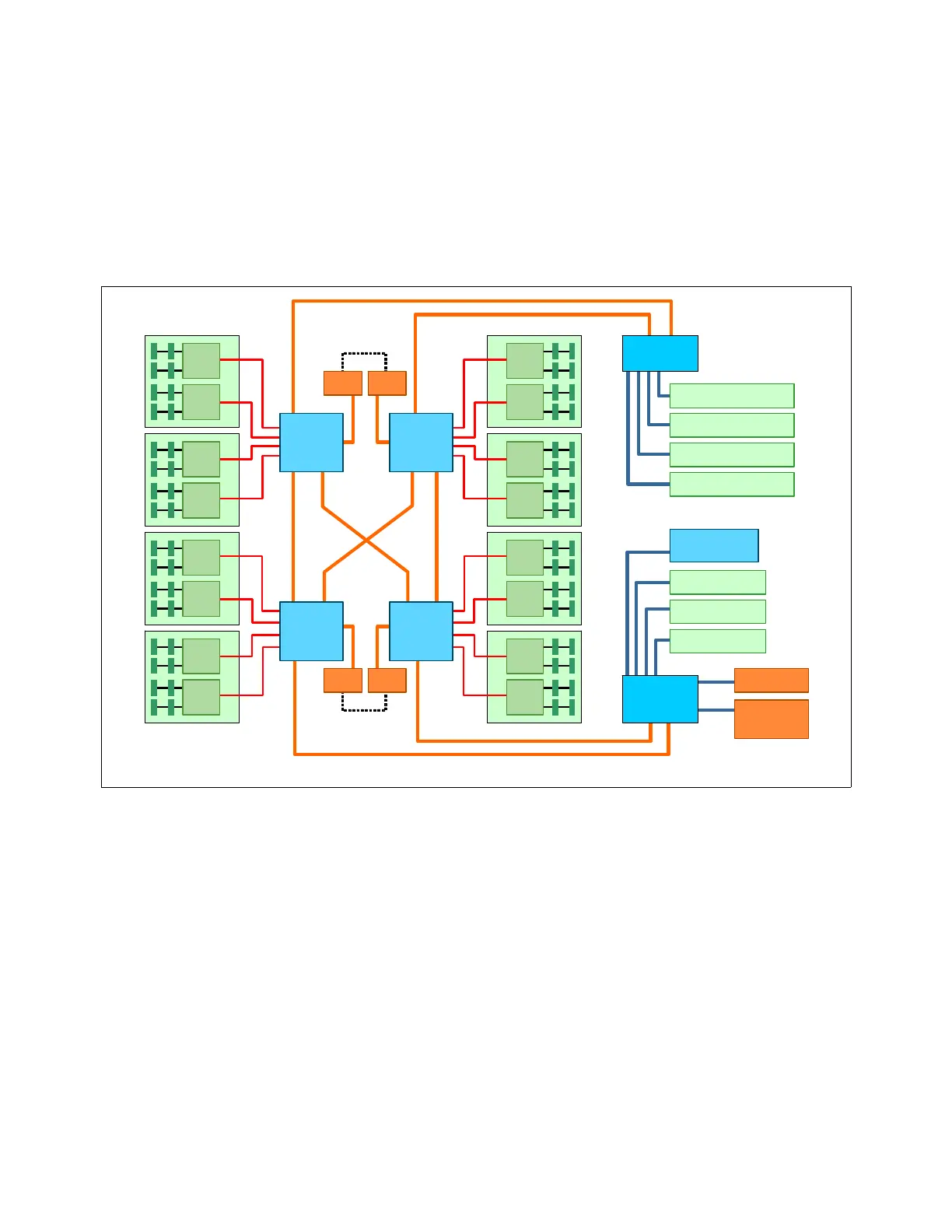

Figure 3-7 shows the system board layout of a single-node 4-way system.
Figure 3-7 Block diagram for single-node x3850 X5
In Figure 3-7, the dotted lines indicate where the QPI Wrap Cards are installed in a
4-processor configuration. These wrap cards complete the full QPI mesh to allow all four
processors to connect to each other. The QPI Wrap Cards are not needed in 2-processor
configurations and are removed when a MAX5 is connected.
Figure 3-12 on page 70 is a block diagram of the x3850 X5 connected to a MAX5.
3.4.2 QPI Wrap Card
In the x3850 X5, QPI links are used for interprocessor communication, both in a single-node
system and in a 2-node system. They are also used to connect the system to a MAX5
memory expansion drawer. In a single-node x3850 X5, the QPI links connect in a full mesh
between all CPUs. To complete this mesh, the QPI Wrap Card is used.
