60
9
CONNECTIONS AND MAINTENANCE
■ Mounting the transceiver
D Using the supplied mounting bracket
The universal mounting bracket supplied with your trans-
ceiver allows overhead or dashboard mounting.
•Mountthetransceiversecurelywiththe4suppliedscrews
(5 × 20 mm) to a surface which is more than 10 mm (
11
⁄32 in)
thick and can support more than 5 kg (11 lb).
•Mountthetransceiversothatthefaceofthetransceiveris
at 90° to your line of sight when operating it.
CAUTION: KEEP the transceiver and microphone at least
1 m (3.3 ft) away from your vessel’s magnetic navigation
compass.
NOTE: Check the installation angle; the function display
may not be easy-to-read at some angles.

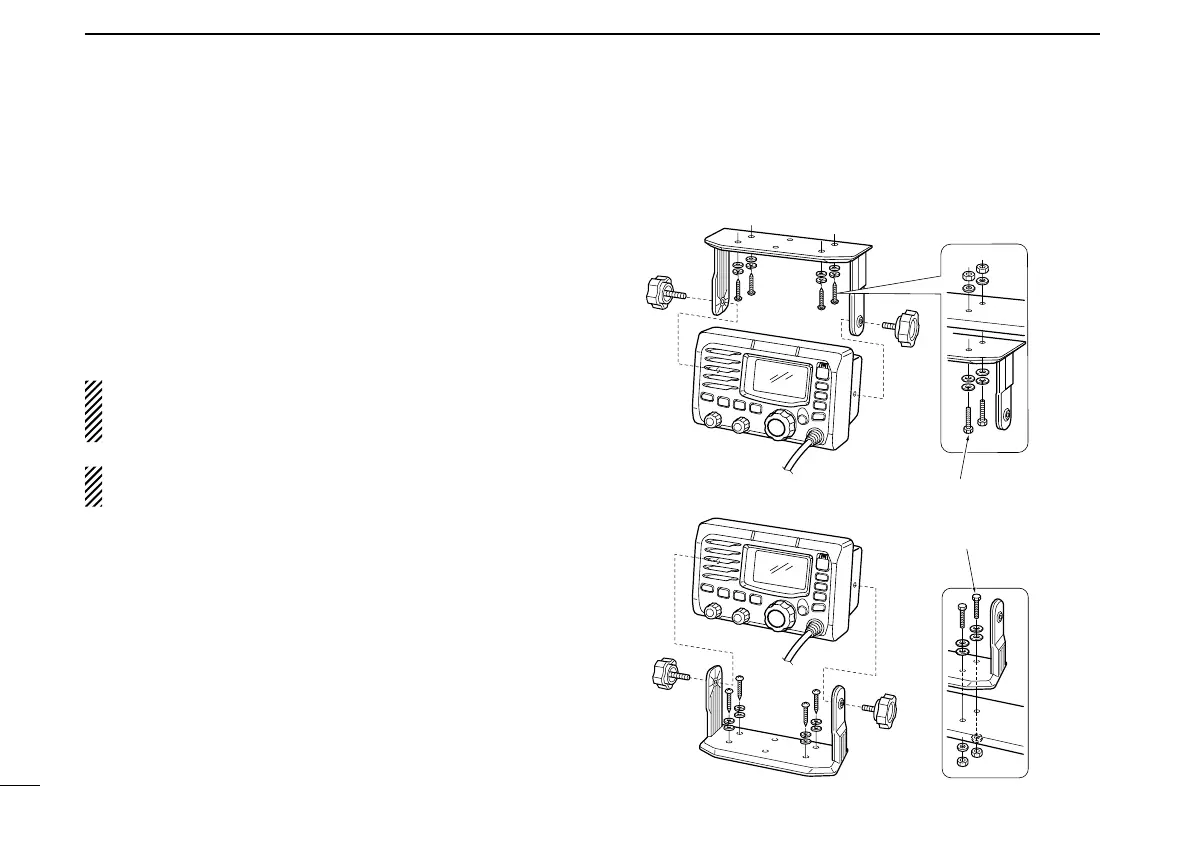

• OVERHEAD MOUNTING
• MOUNTING ON THE BOARD
These bolts are shown a
mounting example only.
Not supplied with accesso-
ries.
To Next Page
