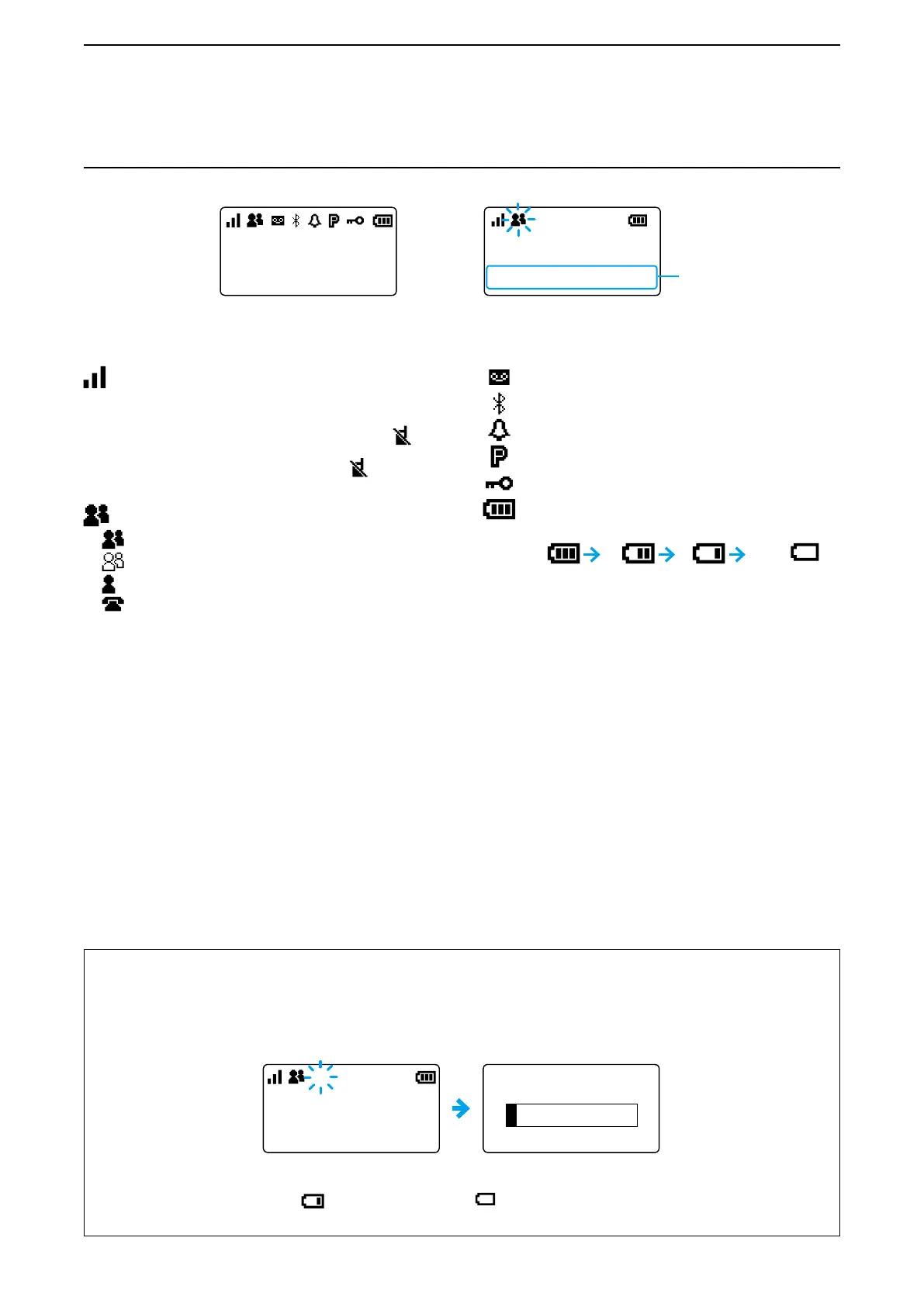

■ Icons and indications
Signal strength
The signal strength is represented by 3 bars.
When the transceiver location is out of the service
area, or cannot receive the control signal, the
(out-of-area) icon blinks.
If the IP501H has not been registered,
is
displayed. (p. 1-3)
Call types*
1
: All/Group Call
: Talkgroup Call*
2
(p. 3-4)
: Individual Call
: Phone Call*
3
Recording function (p. 3-7)
Bluetooth function (p. 5-8)
Pocket beep (p. 3-10)
P-Bell function (p. 3-10)
Lock function (p. 1-7)
Remaining battery capacity
Represents the remaining capacity in 4 steps.
Blink
Standby screen
Example: A message is received
Message scrolls depend-
ing on the message length
All Gather immediately
10/4 13:00
Blinks
“F” blinks while downloading a new firmware:
• Do not turn OFF the transceiver until the download is nished. Place the transceiver in a good signal level area.
Downloading takes approximately 10 minutes.
• After the downloading is nished, the rmware update will start. Updating takes approximately 1 minute.
• Do not turn OFF the transceiver. The transceiver will automatically restart when the update is nished.
• If "F" has been displayed for more than 10 minutes, reboot the transceiver.
• If the battery status indication is
(nearing exhaustion) or
Blink
(exhausted), the rmware update will not start.
Charge the battery pack, then restart the IP501H and do the rmware update.
sufficient
capacity
exhausted
a little.
nearing exhaustion
(Charging is necessary)
Exhausted
(Charging required)
*
1
Blinks when a call or message is received.
*
2
May be usable, depending on a presetting.
*
3
Feature in the near future.
