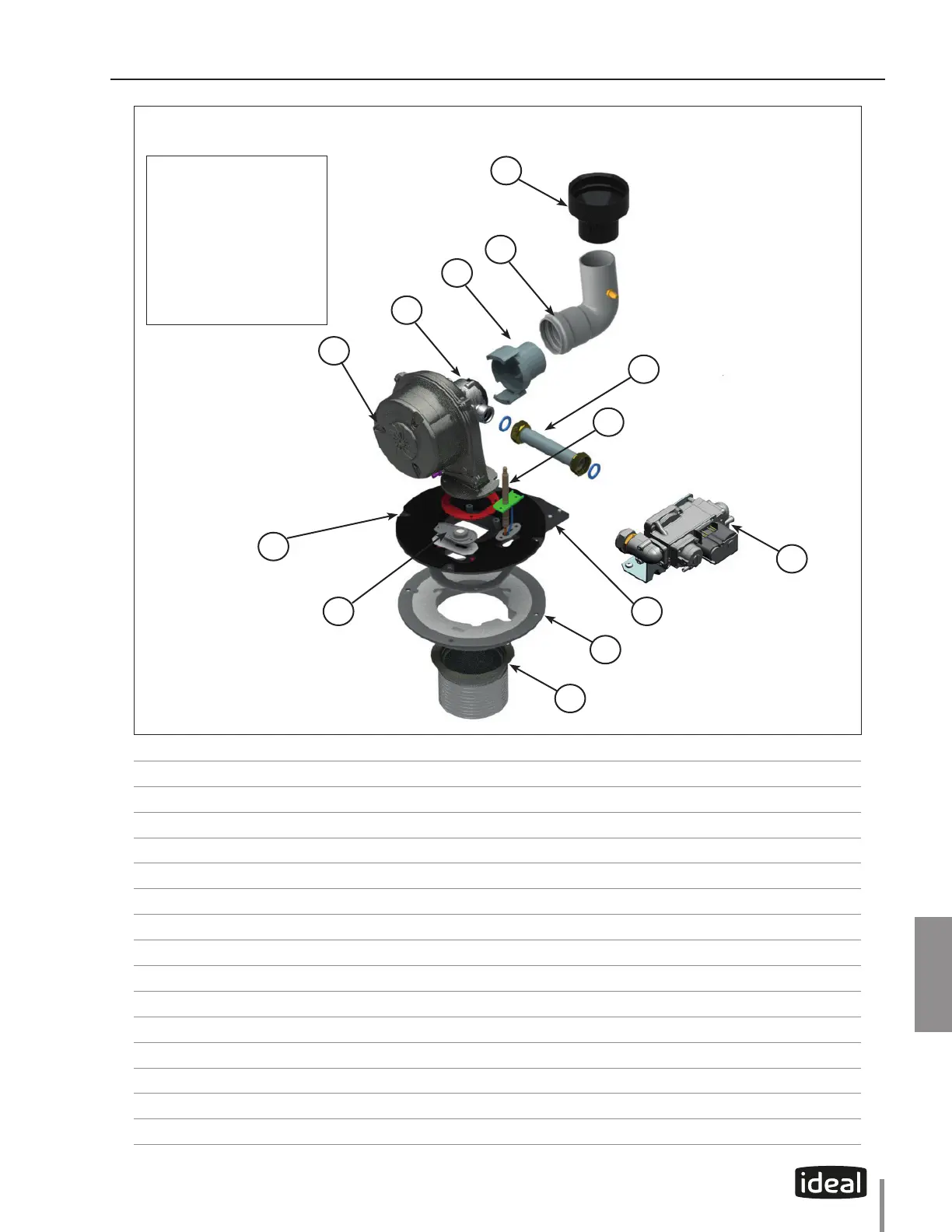

Fig. 43 - EXALT Solo 110 Burner Components

CHAPTER 18

CHAPTER 18 - REPLACEMENT PARTS

Item Part # Description

1 EXRKIT04 Blower Assembly

2 EXRKIT06 Gas Valve

3 EXRKIT07 NG - Venturi

3 EXRKIT08 LP - Venturi

4 EXRKIT14 Burner Plate

5 EXRKIT18 Combustion Chamber 2-in-1 Insulation

6 EXRKIT24 Burner Head Assembly

7 EXRKIT27 Igniter Assembly

8 EXRKIT87 Sight Glass Assembly

9 EXRKIT30 Burner Plate Insulation

10 EXRKIT13 Venturi Air Inlet

11 EXRKIT74 Air Inlet Elbow

12 EXRKIT75 Air Inlet Adapter

13 EXRKIT76 Venturi Gas Inlet Pipe

It is essential to ensure

during installation, main-

tenance or repair that

items 12, 11 and 10 are

correctly tted between

the blower and inlet

adaptor. Failure to ensure

correct tting may result

in serious injury, or death.
