CHAPTER 9
CHAPTER 9 - CTRLMAX OPERATION

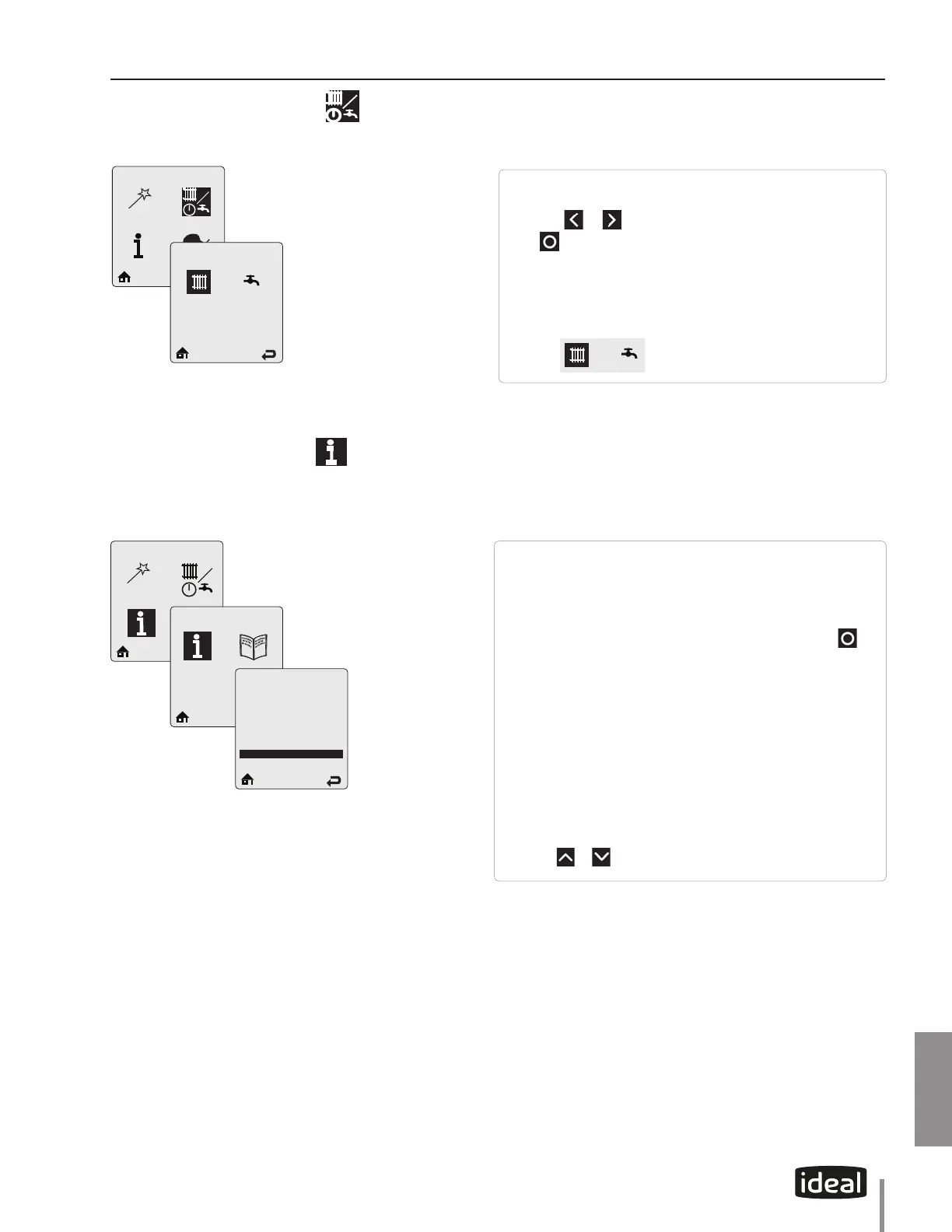

9.13. CH/DHW Operation
CH/DHW Operation provides a simple way to enable/disable either
the CH or the DHW function of the EXALT.
Touch the
or soft keys to select the CH or DHW icon, then
touch to toggle between the enabled/disabled status. The sta-
tus is displayed at the top of the screen.
Using the arrow keys, select the HOME or RETURN icon at the bot-
tom of the screen to go back either to the home page or to the
previous screen.
Default :
9.14. Boiler Information
Boiler Information provides real time operating information of the
EXALT. Each line contains an information item followed by its current
value. Six lines are displayed on the screen at one time.
Some information items include a logging function which records one
sample every 12 minutes to produce a graph of the last 24 hours. Se-
lect the information item in Boiler Information then touch the
soft
key to view its graph. The following items have a logging function:
• Boiler Firing Rate
• Ionization Current
• Boiler Setpoint
• Boiler Supply Temperature
• Boiler Return Temperature
• Boiler Flue Temperature
• Outdoor Temperature
• DHW Storage Temperature
• External Modulation Signal
• Pressure
Touch the or soft keys to scroll through the items.
To Next Page
