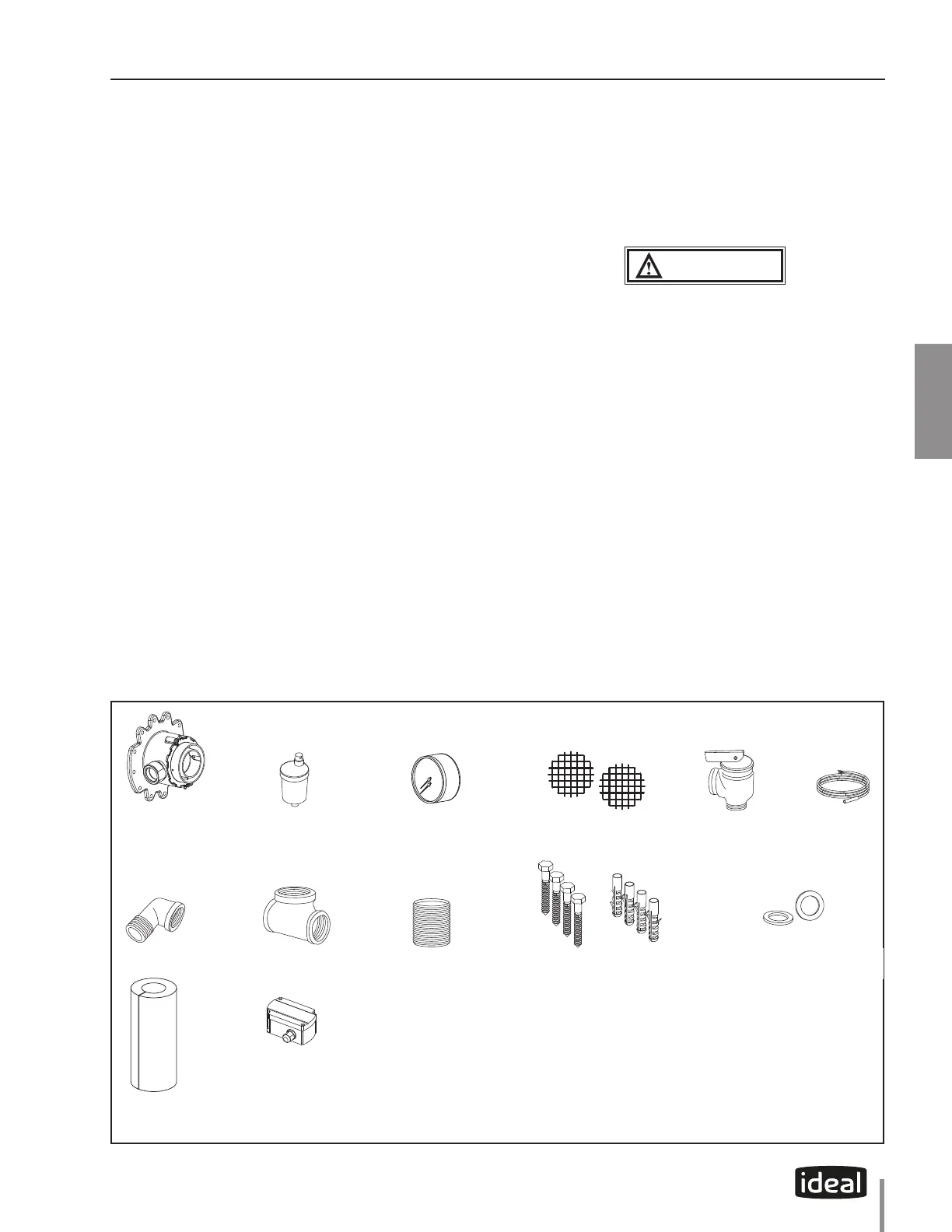

Fig. 5 - Accessories
LP Venturi
3/4" Elbow
LP Foam
110, 155 only
Auto Air Vent
Reduced Tee
3/8" NPT temperature
and pressure gauge
Union
Bird Screens (x2)
Screws (x4) / Anchors (x4)
Pressure Relief Valve DHW sensor,
solo models
only
Gas Pipe Gaskets (x2)
Outdoor
Sensor
13
CHAPTER 3
CHAPTER 3 - UNIT PREPARATIONS
3.1. Handling Instructions
The EXALT is generally easier to handle and maneuver
once removed from the shipping carton.
To remove the shipping carton:
Use care not to drop, bump or rotate the boiler
upside down, as damage to the boiler will result.
1. Remove any shipping straps.
2. Slide the cardboard sleeve from the unit.
3. Remove the wall mounting template.
4. Remove the accessory boxes.
5. Remove upper and lower cardboard end pieces.
6. Remove the boiler from the cardboard tray.
7. Discard all packing materials and recycle where
possible.
The Exalt is supplied with an acoustic dampening
foam insert located in the appliance air inlet. DO NOT
remove this on any installation. The LP foam (110 and
155 models only) is to be installed in addition to the
preinstalled foam when converting to Propane.
NOTICE
3.2. Wall Mounting Installation
The EXALT should be wall mounted using the wall
mounting template and bracket provided with the
boiler. The EXALT is not designed for oor installation.
The EXALT is not to be installed on carpeting
The wall used for mounting the EXALT must be
vertically plumb and capable of supporting at
minimum:
• 119.5 pounds [54 kg] for the EXALT Solo 110
• 141 pounds [64 kg] for the EXALT Solo 155
• 158 pounds [71.5 kg] for EXALT Solo 199
• 165 pounds [75 kg] for EXALT Combi 155
• 183 pounds [83 kg] for EXALT Combi 199
Note. All weights above include EXALT water
volumes.
Failure to comply with these requirements can
result in substantial property damage, serious
injury, or death.
3.3. Accessories
Unpack and check the the list of all accessories as
shown in Fig. 5 below.
