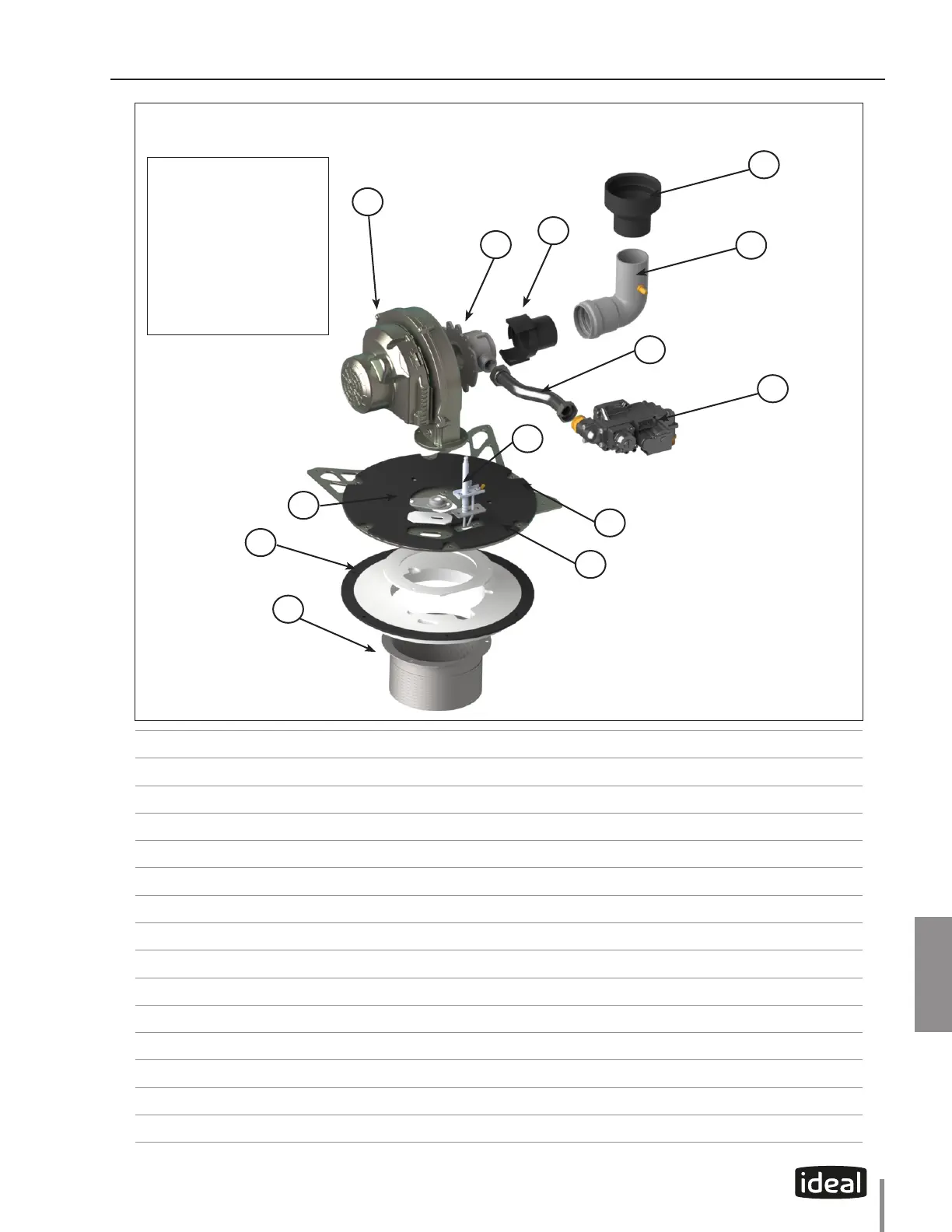

Fig. 45 - EXALT Combi 199 Burner Components
7
5
3
6
4
2
9
13
11
12
10
8
1
97
CHAPTER 18
CHAPTER 18 - REPLACEMENT PARTS
Item Part # Description
1 EXRKIT05 Blower Assembly
2 EXRKIT27 Ignitor Assembly
3 EXRKIT32 Burner Plate Insulation
4 EXRKIT87 Sight Glass Assembly
5 EXRKIT16 Burner Plate
6 EXRKIT20 Combustion two in one Insulation
7 EXRKIT25 Burner Head Assembly
8 EXRKIT11 Venturi (NG)
8 EXRKIT12 Venturi (LP)
9 EXRKIT06 Gas Valve
10 EXRKIT13 Venturi Air Inlet
11 EXRKIT74 Air Inlet Elbow
12 EXRKIT75 Air Inlet Adaptor
13 EXRKIT78 Venturi Gas Valve Inlet Pipe
It is essential to ensure
during installation, main-
tenance or repair that
items 12, 11 and 10 are
correctly tted between
the blower and inlet
adaptor. Failure to ensure
correct tting may result
in serious injury, or death.
