CHAPTER 9

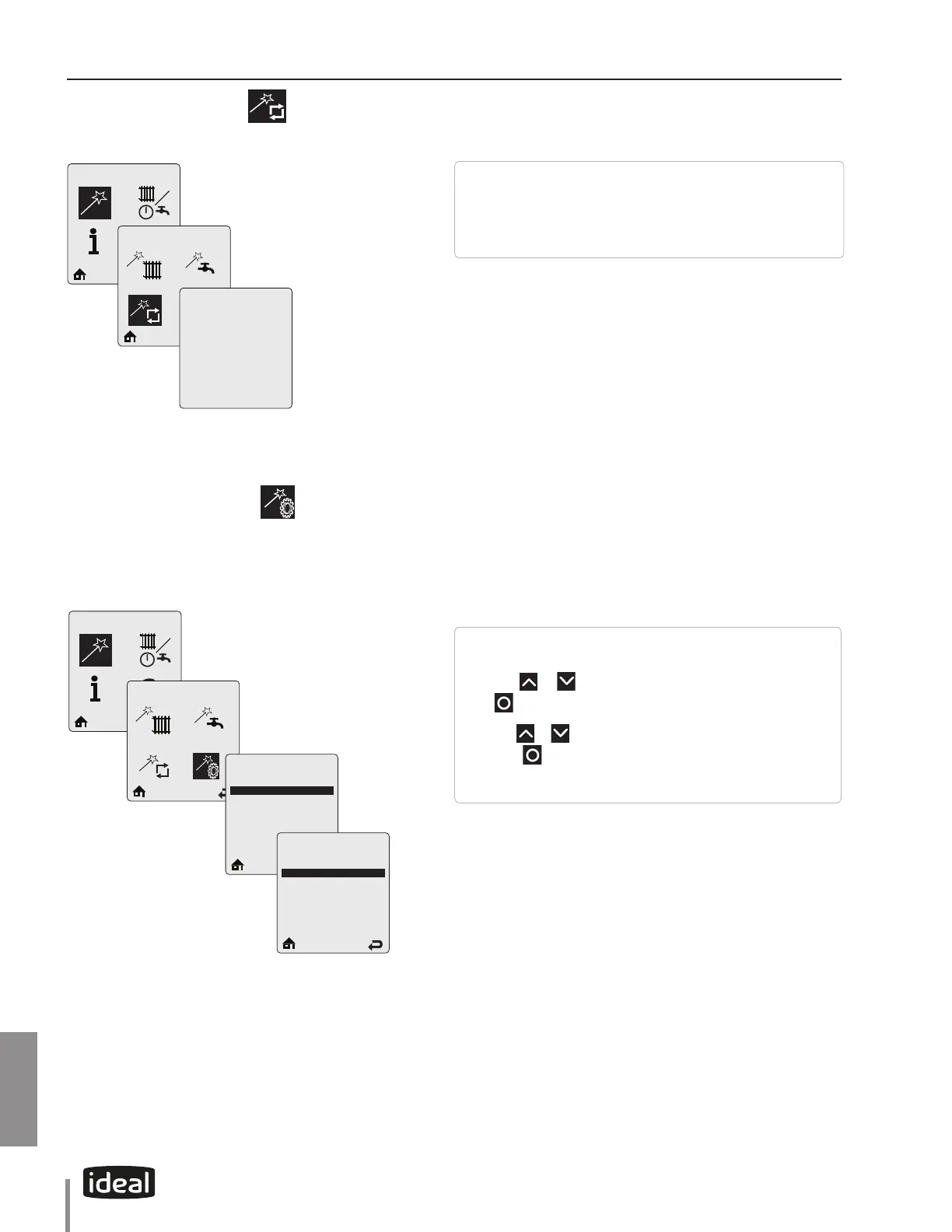

CHAPTER 9 - CTRLMAX OPERATION

9.11. EZ Setup Reset

9.12. Display EZ Setup

EZ Setup Reset allows reset of all EZ Setup settings back to the orig-

inal factory defaults. See Chapter 13 on page 77 for the list of set-

tings reset by this function.

Follow the on-screen instructions to reset all EZ Setup settings.

Display EZ Setup allows language (English, French, Dutch, Spanish,

Italian, German, Czech) and temperature units selection.

Touch the

or soft keys to select the required language then

touch to store the setting. The Select Unit screen then appears.

Touch the

or soft keys to select the required temperature units

then touch to store the setting.
