CHAPTER 4

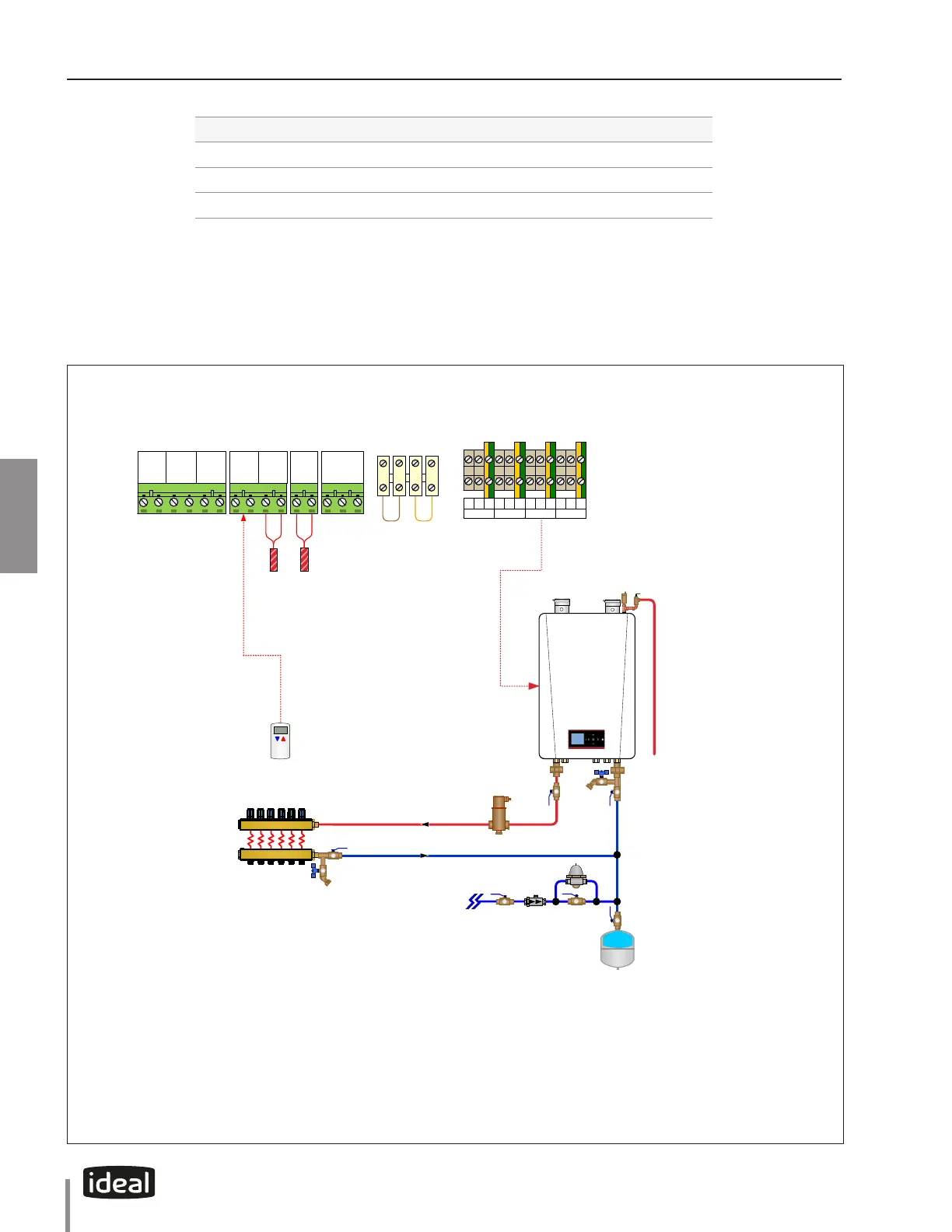

Fig. 15 - EXALT Combi - System Piping - Single Zone with Single Circulator

CHAPTER 4 - BOILER PIPING

EXALT COMBI PRESET PUMP CONFIGURATION

Heat Call Flame CH Pump DHW Pump

CH1 ON ON OFF

CH2 ON ON OFF

DHW OFF ON ON

Note. EXALT Combi is pre-congured for this installation

Low Voltage Terminals

Outdoor Sensor

DHW Sensor

CH2

Thermostat

6 5

System

Sensor

4 3

Modulation

Signal

2 1

CH2

Thermosta

CH1

Thermostat

4 3

Outdoor

Sensor

2 1

DHW

Sensor or

Aquastat

2 1

Modbus

+ G -

3 2 1

X7X4

X6X5

External Limit

Terminals

Manual Auto

Line Voltage Terminals

N G L N G L N G L N G L

FLAME

POWER SUPPLY

CH PUMP

DHW PUMP

Outdoor Sensor

Low Voltage Terminals

Line Voltage Terminals

External Limit

Terminals

Manual Auto

DHW Sensor

internal to boiler
