INTELLISYS OPTION
23

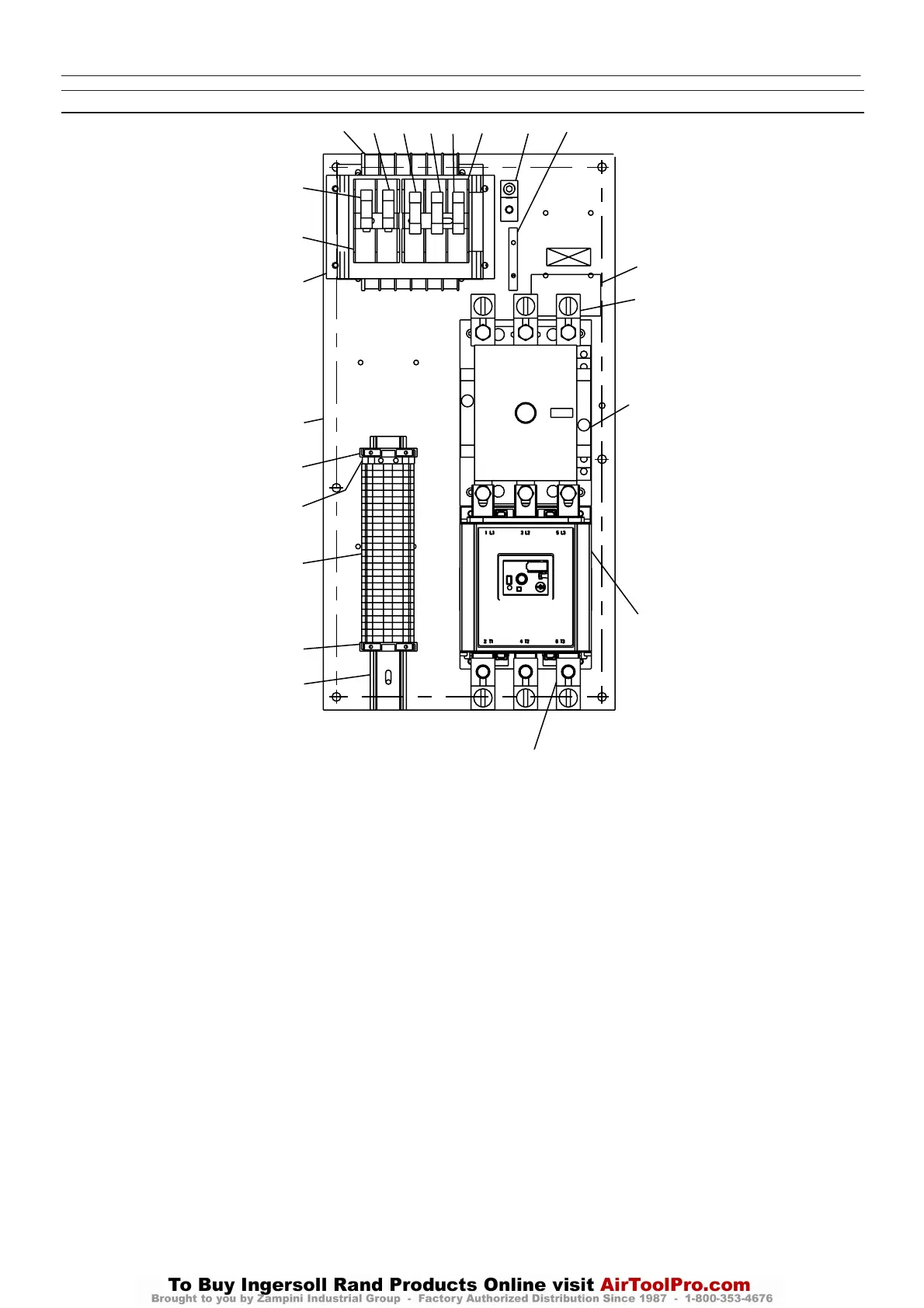

INTELLISYS PARTS – D110 FULL VOLTAGE – DOL 60Hz – 200V 30hp
Item ccn Qty. Description Item ccn Qty. Description
*1 22113344 1
2 39252937 2 Block, end stop
Assembly, emergency stop
push button
3 39252937 1 Block, terminal ground
4 39252903 27 Block, terminal
5 22630727 1 Kit, terminal
6 22114623 1 Bracket
7 32342115 1 Bus, grounding
8 22264873 1 Contactor – D110
9 22074033 3 Fuse
2.0A 125–250V
10 32342099 2 Fuse
1.5A 600V
11 39479035 1 Fuse, holder
12 39480504 1 Fuse, holder
13 1 Label
15 32342123 1 Lug, power grounding
16 22050140 1 Panel
11 position
*14 39191648 1 Plug
11 position
*17 39191655 1 Plug
16 position
*18 39186101 1 Plug
4position
*19 39191630 1 Plug
5position
*20 39186093 1 Plug
6position
22 22056741 1 Rail
23 39251095 1 Relay,overload
24 39491519 1 Transformer
* Not illustrated
2
4
3
6
7
8
9
10
11
12
13
15
16
22
23
24
2
9
9
10
532343980
Revision D
5
http:/air.ingersollrand.com
UP6 15, UP6 20, UP6 25, UP6 30
