TANK MOUNTED (240 GALLON)
60 Hz UNITS

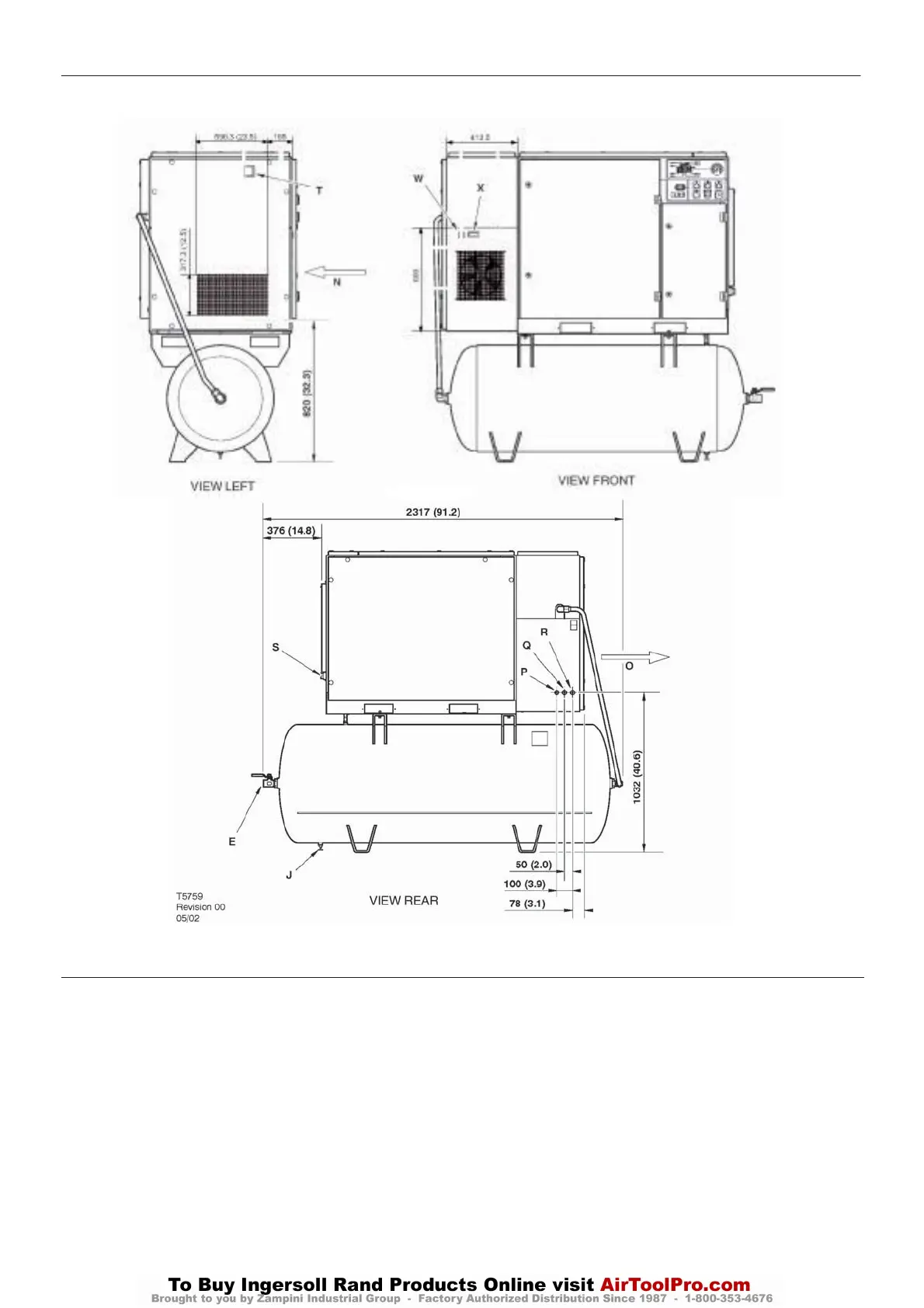

KEY
A Pre filter
B Compressor and cooling air intake
C Starter box
D Cooling air exhaust
E1.00” BSPT airdischarge
F Customer power inlet
G Fork lift openings
HAir receiver (240 gallons)
I Automaticdrainvalve
J Valve, drain
K Button, emergency stop
LPrimary compressor service door
M Inspection port
N Dryer air inlet
O Dryer air exhaust
P0.25 inch BSPT moisture separator drain
Q0.25 inch BSPT dryer drain
R0.25 inch BSPT airfilter drain
S1.00 inch NPT plug
TFilter restriction indicato
r
W Dryer On/Off switch
XDewpoint indicator
DRYER OPTION
42
UP6 15, UP6 20, UP6 25, UP6 30
