DISASSEMBLING THE UNIT
The unit has been designed and constructed to guarantee continuous
operation.
The long service life of some components such as the fan and
compressor depends on good maintenance.
The unitmustonlybedisassembled by a refrigerant specialist.
Refrigerant liquid and lubricating oil inside the refrigeration circuit must
be recovered in compliance with current norms in the country where the
machine is installed.
RECYCLING DISASSEMBLY
Frame and panels
Steel / epoxy resin polyester
Heat exchanger (cooler) Copper
Pipes Copper
Drainage system Polyamide
Heat exchanger insulation EPS (polystyrene sintered)
Pipe insulation Gum synthetic
Compressor Steel / copper / aluminium / oil
Condenser Steel / copper / aluminium
Refrigerant
R134a
Valve Brass
Electrical cable Copper / PVC
REFRIGERANT LEAKS IN THE REFRIGERATION CIRCUIT
The unit isdispatched in perfect working order, already charged.
Refrigerant leaks may be identified by tripping of the compressor
overload protector (SK).
IF A LEAK IS DETECTED IN THE REFRIGERANT CIRCUIT, SEEK
TECHNICAL ASSISTANCE.
REFRIGERANT CHARGING
THIS OPERATION MUST ONLY BE PERFORMED BY A
REFRIGERANT SPECIALIST.
WHEN REPAIRING THE REFRIGERANT CIRCUIT, COLLECT ALL
THE REFRIGERANT IN A CONTAINER AND DISPOSE OF IT IN THE
APPROPRIATE MANNER.
CHARACTERISTICS OF REFRIGERANT R134A
In normal temperature and pressure conditions the above refrigerant is
a colorless, class A1/A1 gas with TVL value of 1000ppm (ASHRAE
classification).
If a refrigerant leak occurs, thoroughly air the room before commencing
work.
5 6
1
7 8
0 bar
0psi
9 10
2
1
0 bar
0psi
0 bar
0psi
1
2
12

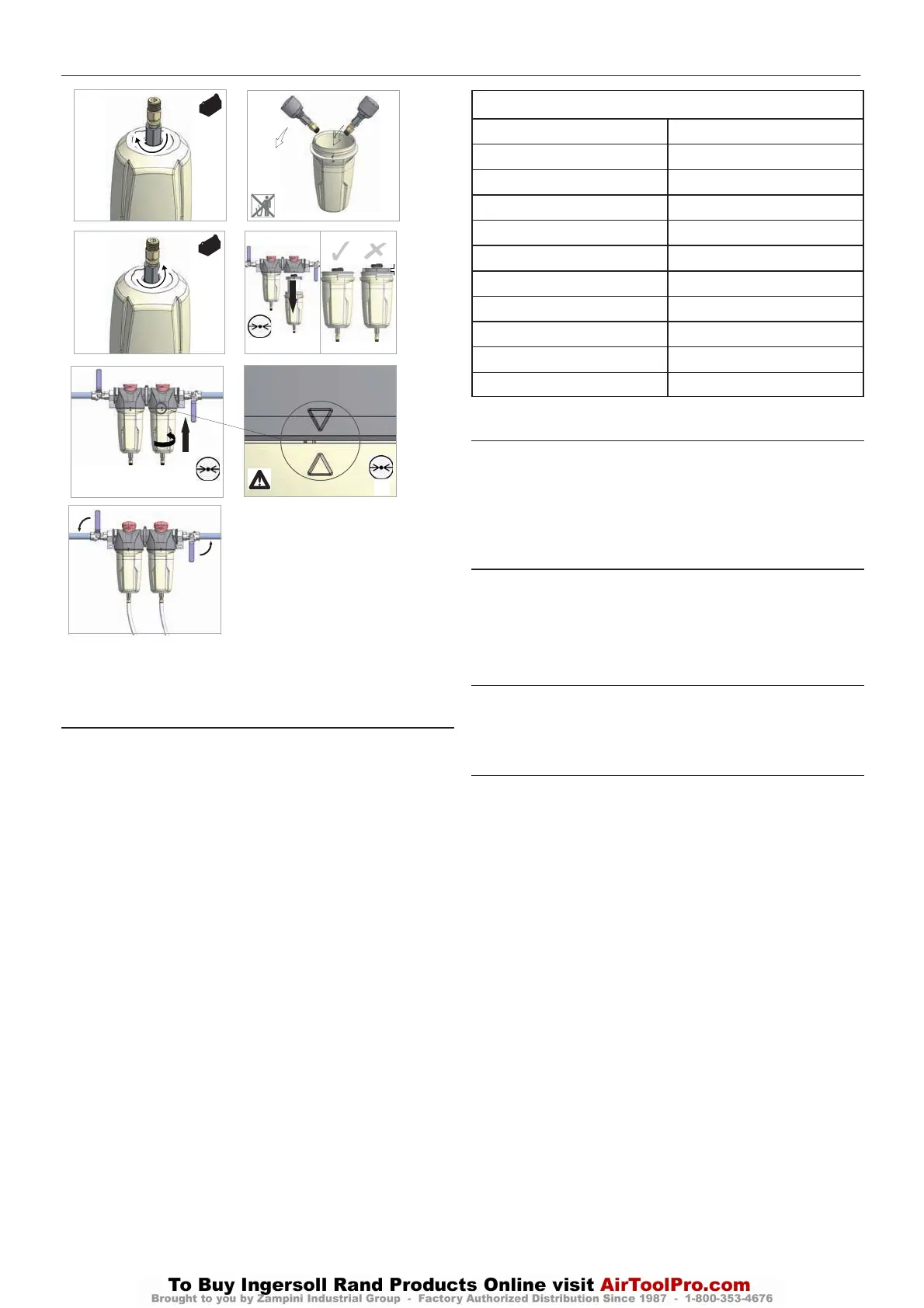

DRYER OPTION
33
http:/air.ingersollrand.com
UP6 15, UP6 20, UP6 25, UP6 30
